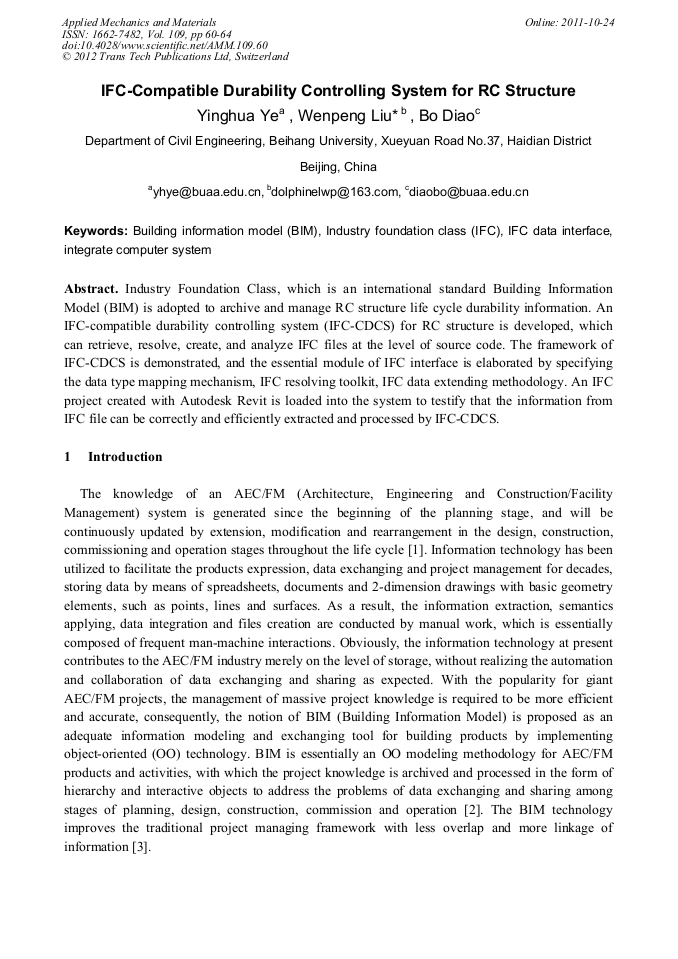

IFC-Compatible Durability Controlling System for RC Structure

Abstract:

Industry Foundation Class, which is an international standard Building Information Model (BIM) is adopted to archive and manage RC structure life cycle durability information. An IFC-compatible durability controlling system (IFC-CDCS) for RC structure is developed, which can retrieve, resolve, create, and analyze IFC files at the level of source code. The framework of IFC-CDCS is demonstrated, and the essential module of IFC interface is elaborated by specifying the data type mapping mechanism, IFC resolving toolkit, IFC data extending methodology. An IFC project created with Autodesk Revit is loaded into the system to testify that the information from IFC file can be correctly and efficiently extracted and processed by IFC-CDCS.

• Periodical: Applied Mechanics and Materials (Volume 109)
• Pages: 60-64
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.109.60
• Online since: October 2011
• Authors: Ying Hua Ye, Wen Peng Liu, Bo Diao
• Keywords: Building Information Modeling (BIM), IFC Data Interface, Industry Foundation Class (IFC), Integrate Computer System

References

[1] Yu, K., T. Froese and F. Grobler. Development of Industry Foundation Classes by International Alliance for Interoperability, submitted to the Proceedings of Computing Congress 98. in Proceedings of Computing Congress 98. 1998. Boston.

[2] Isikdag, U., G. Aouad and J. Underwood, et al., Building Information Models: A Review on Storage and Exchange Mechanisms, Bringing ITC Knowledge to Work, in 24th W78 Conference. 2007: Maribor.

[3] Vanlande, R., C. Nicolle and C. Cruz: IFC and building lifecycle management. Automation in Construction. 18(2008): pp.70-78.

DOI: 10.1016/j.autcon.2008.05.001

[4] IAI: IFC 2x Edition 3 Model Implementation Guide(USA 2009)

[5] Information on http://www.buildingsmart.com/

[6] ISO, Industry Automation Systems and Integration Product Data Representation and Exchange, in ISO 10303:1994. 1994: USA.

[7] IAI: End User Guide to Industry Foundation Classes, Enabling Interoperability in the AECrFM Industry(International Alliance for Interoperability (IAI),USA 1996)

[8] Wan, C., P. CHen and S.K. Ting: Assessment of IFCS for Structural Analysis Domain. Information Technology in Construction. 9(2004): pp.75-95.

[9] Information on http://www.aecbytes.com/review/2006/BentleyBuildingV8XM.html

[10] Yu, K., T. Froese and F. Grobler: A development framework for data models for computer-integrated facilities management. Automation in Construction. 9(2000): p.145–167.

DOI: 10.1016/s0926-5805(99)00002-3

[11] Schein, J.: An information model for building automation systems. Automation in Construction. 16(2007): pp.125-139.

DOI: 10.1016/j.autcon.2006.07.006

[12] Halfawy, M.M.R. and T. Froese: Building Integrated Architecture/Engineering/Construction System Using Smart Ojbects:Methodology and Implementation. Computing in Civil Engineering. 19(2005): pp.172-181.

DOI: 10.1061/(asce)0887-3801(2005)19:2(172)

[13] IAI: IFC 2x Model Integration Guide(USA 2002)

[14] Information on http://www.ifcbrowser.com/
