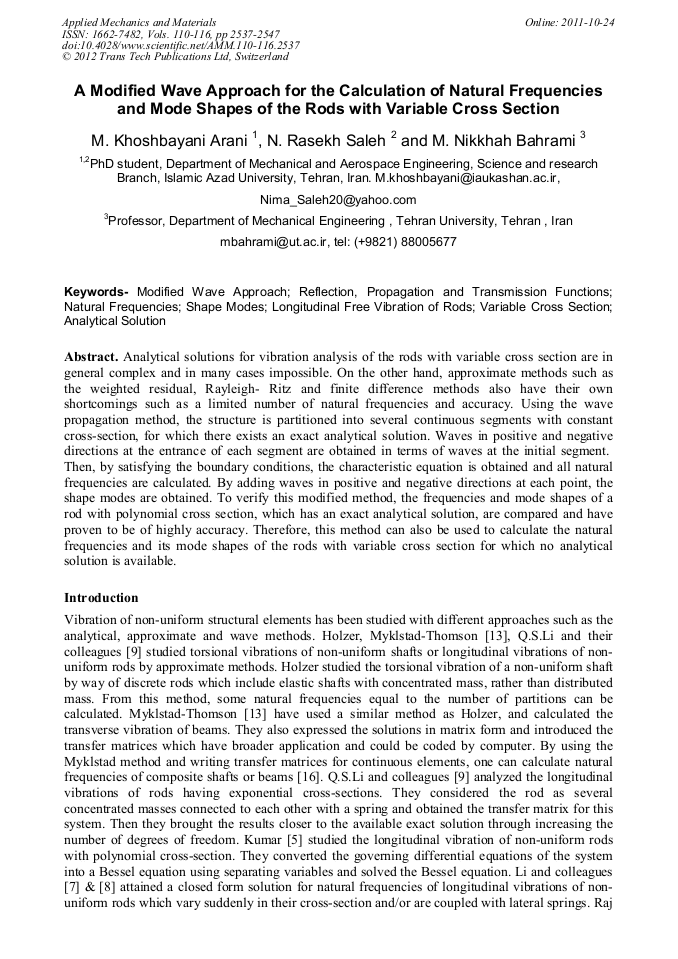

A Modified Wave Approach for the Calculation of Natural Frequencies and Mode Shapes of the Rods with Variable Cross Section

Abstract:

Analytical solutions for vibration analysis of the rods with variable cross section are in general complex and in many cases impossible. On the other hand, approximate methods such as the weighted residual, Rayleigh-Ritz and finite difference methods also have their own shortcomings such as a limited number of natural frequencies and accuracy. Using the wave propagation method, the structure is partitioned into several continuous segments with constant cross-section, for which there exists an exact analytical solution. Waves in positive and negative directions at the entrance of each segment are obtained in terms of waves at the initial segment. Then, by satisfying the boundary conditions, the characteristic equation is obtained and all natural frequencies are calculated. By adding waves in positive and negative directions at each point, the shape modes are obtained. To verify this modified method, the frequencies and mode shapes of a rod with polynomial cross section, which has an exact analytical solution, are compared and have proven to be of highly accuracy. Therefore, this method can also be used to calculate the natural frequencies and its mode shapes of the rods with variable cross section for which no analytical solution is available.

• Periodical: Applied Mechanics and Materials (Volumes 110-116)
• Pages: 2537-2547
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.110-116.2537
• Online since: October 2011
• Authors: M. Khoshbayani Arani, N. Rasekh Saleh, M. Nikkhah Bahrami
• Keywords: Analytical Solution, Longitudinal Free Vibration of Rods, Modified Wave Approach, Natural Frequency, Propagation Functions, Reflection Functions, Shape Modes, Transmission Functions, Variable Cross Section

References

[1] Achenbach, J.D., wave propagation in elastic solids, North-Holland publishing Company, (1973).

[2] Doyle, J.F., Wave Propagation in Structures, Springer, New York, (1989).

[3] Graf, K. F., Wave motion in Elastic Solids. Columbus, Ohio state University Press.

[4] Kolsky, H., Stress wave in solids , Dover publication inc, (1963).

[5] Kumar, B., Exact solutions for the longitudinal vibration of non-uniform rods, Journal of sound and vibration, 721-729, (1997).

DOI: 10.1006/jsvi.1997.1146

[6] S.K. Lee, B.R. Mace, M.J. Brennan, Wave propagation, reflection and transmission in non-uniform one-dimensional waveguides, 2007, Journal of Sound and Vibration, 304(2007) 31-49.

DOI: 10.1016/j.jsv.2007.01.039

[7] Li, Q.S.,. LI, G.Q., Exact solutions for longitudinal vibration of rods coupled by translational springs, International springs, International Journal of Mechanical Sciences 42(2000).

DOI: 10.1016/s0020-7403(99)00038-7

[8] Li, Q.S., Free longitudinal vibration analysis of multi-step non-uniform rods based on piecewise analytical solutions, Engineering Structures 22(2000).

DOI: 10.1016/s0141-0296(99)00053-x

[9] Li, Q.S., WuJ.R., Longitudinal vibration of multi-step non uniform structures with lumped masses and spring supports, Applied Acoustic (2002)333-350.

DOI: 10.1016/s0003-682x(01)00034-2

[10] Loghmani, Masih., Vibration Analysis from Wave Standpoint in Dispersive Mediums Under Supervision of Professor Mansour Nikkhah-Bahrami, A Thesis for Degree of Master of Science in Mechanical Engineering , September (2008).

[11] Mei, C., The Analysis and control of longitudinal vibrations from wave view point, ASME Journal of Vibration and Acoustics , Vol. 124, pp.645-649, (2002).

DOI: 10.1115/1.1500339

[12] Meirovitch, L., Fundamentals of vibration, McGraw-Hill, (1997).

[13] Myklstad, N.O., Vibration Analysis, Mc Graw Hill, New York, reprinted (1988).

[14] Raj, Anil., Sujith R.L., Closed form solutions for the free Longitidunal vibration of inhomogeneous rods, Journal of sound and vibration 283(2005) 1015-1030.

DOI: 10.1016/j.jsv.2004.06.003

[15] Nikkhah-Bahrami, Mansour., Loghmani, Masih., ‏ Wave Propagation in Exponentially Varying Cross- Section Rods And Vibration Analysis , ICNAAM‏ (2008).

DOI: 10.1063/1.2991051

[16] Nikkhah-Bahrami, Mansour., Theory of vibration and its application in engineering, Tehran University press, 2004.

[17] N.R. Harland, B.R. Mace, R.W. jones, wave propagation, reflection and transmission in tunable fluid-filled beams, journal of sound and vibration 241(2001) 735.

DOI: 10.1006/jsvi.2000.3316
