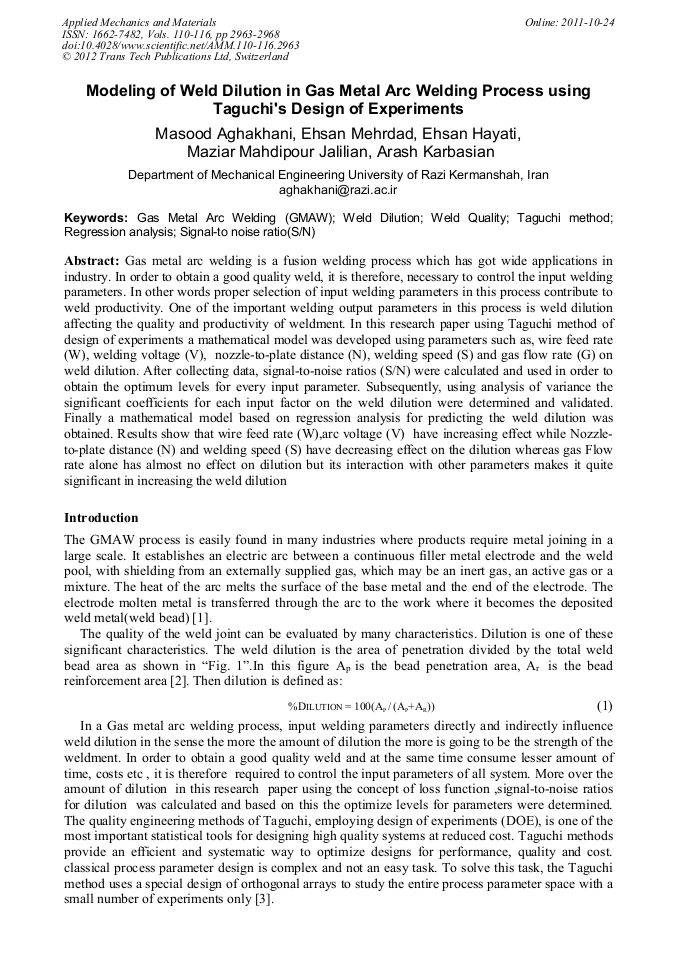

Modeling of Weld Dilution in Gas Metal Arc Welding Process Using Taguchi's Design of Experiments

Abstract:

Gas metal arc welding is a fusion welding process which has got wide applications in industry. In order to obtain a good quality weld, it is therefore, necessary to control the input welding parameters. In other words proper selection of input welding parameters in this process contribute to weld productivity. One of the important welding output parameters in this process is weld dilution affecting the quality and productivity of weldment. In this research paper using Taguchi method of design of experiments a mathematical model was developed using parameters such as, wire feed rate (W), welding voltage (V), nozzle-to-plate distance (N), welding speed (S) and gas flow rate (G) on weld dilution. After collecting data, signal-to-noise ratios (S/N) were calculated and used in order to obtain the optimum levels for every input parameter. Subsequently, using analysis of variance the significant coefficients for each input factor on the weld dilution were determined and validated. Finally a mathematical model based on regression analysis for predicting the weld dilution was obtained. Results show that wire feed rate (W),arc voltage (V) have increasing effect while Nozzle-to-plate distance (N) and welding speed (S) have decreasing effect on the dilution whereas gas Flow rate alone has almost no effect on dilution but its interaction with other parameters makes it quite significant in increasing the weld dilution

• Periodical: Applied Mechanics and Materials (Volumes 110-116)
• Pages: 2963-2968
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.110-116.2963
• Online since: October 2011
• Authors: Masood Aghakhani, Ehsan Mehrdad, Ehsan Hayati, Maziar Mahdipour Jalilian, Arash Karbasian
• Keywords: Gas Metal Arc Welding (GMAW), Regression Analysis, Signal-to-Noise Ratio (SNR), Taguchi Method, Weld Dilution, Weld Quality

References

[1] S. Correia, C. V. Goncalves, S. S. D. Cunha, Jr, and V. A. Ferraresi, Comparison between genetic algorithms and response surface methodology in GMAW welding optimization, Journal of Materials Processing Technology, 160. pp.70-76, (2005).

DOI: 10.1016/j.jmatprotec.2004.04.243

[2] M. Aghakhani, M. Mahdipourjalilan, and A. Karami, A copmarison between fractional factorial design and fuzzy logic method for prediction of dilution in Gas Metal Arc Welding of Aluminum, 11th Iranian conference on Manufacturing Engineering, University of Tabriz, 19-21 Oct. (2010).

[3] S. Kumanan, J. E. R. Dhas, and K. Gowthaman, Determination of submerged arc welding process parametrs using Taguchi Method and regression analysis, Indian Journal of Engineering and materials, vol. 14, pp.177-183, June. (2007).

[4] A.S. Shahi, and S. Pandey, Modelling of the effects of welding conditions on dilution of stainless steel claddings produced by gas metal arc welding procedures, Journal of Materials Processing Technology, 196, p.339–344, (2008).

DOI: 10.1016/j.jmatprotec.2007.05.060

[5] K. Kishore, P. V. G. Krishna, K. Veladri, and S. Q. Ali, Analysis of defects in gas shielded arc welding of AISI 1040 steel using Taguchi Method, ARPN Journal of Engineering and Applied Sciences, vol. 5, No. 1, January. (2010).
