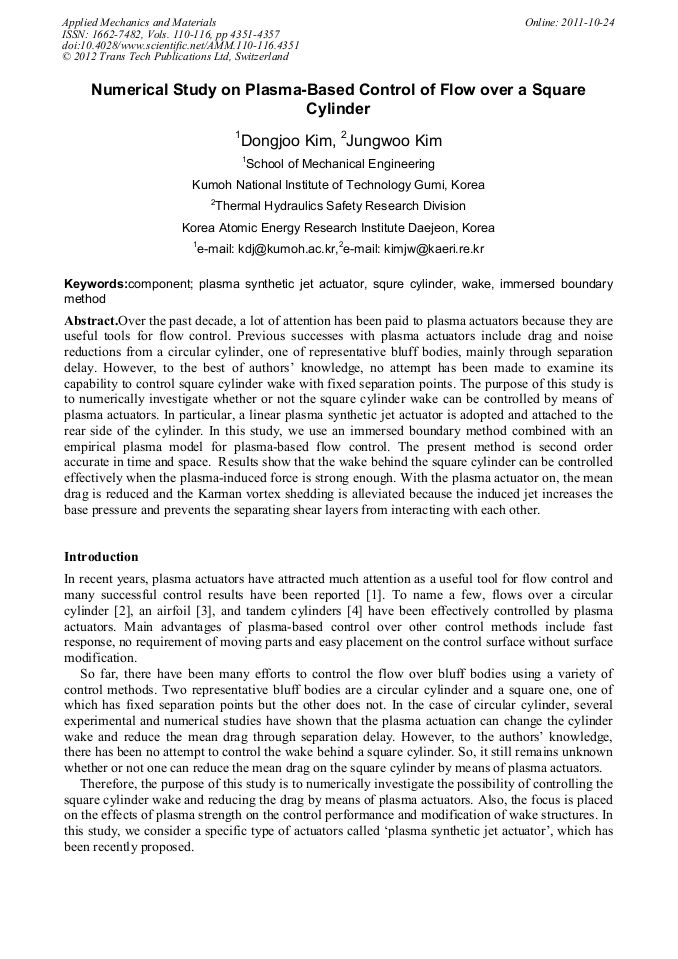

Numerical Study on Plasma-Based Control of Flow over a Square Cylinder

Abstract:

Over the past decade, a lot of attention has been paid to plasma actuators because they are useful tools for flow control. Previous successes with plasma actuators include drag and noise reductions from a circular cylinder, one of representative bluff bodies, mainly through separation delay. However, to the best of authors’ knowledge, no attempt has been made to examine its capability to control square cylinder wake with fixed separation points. The purpose of this study is to numerically investigate whether or not the square cylinder wake can be controlled by means of plasma actuators. In particular, a linear plasma synthetic jet actuator is adopted and attached to the rear side of the cylinder. In this study, we use an immersed boundary method combined with an empirical plasma model for plasma-based flow control. The present method is second order accurate in time and space. Results show that the wake behind the square cylinder can be controlled effectively when the plasma-induced force is strong enough. With the plasma actuator on, the mean drag is reduced and the Karman vortex shedding is alleviated because the induced jet increases the base pressure and prevents the separating shear layers from interacting with each other.

• Periodical: Applied Mechanics and Materials (Volumes 110-116)
• Pages: 4351-4357
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.110-116.4351
• Online since: October 2011
• Authors: Dong Joo Kim, Jungwoo Kim
• Keywords: Immersed Boundary Method, Plasma Synthetic Jet Actuator, Square Cylinder, Wake

References

[1] T. C. Corke, C. L. Enloe, and S. P. Wilkinson, Dielectric barrier discharge plasma actuators for flow control, Annu. Rev. Fluid Mech., vol. 42, 2010, p.505–529.

DOI: 10.1146/annurev-fluid-121108-145550

[2] F. O. Thomas, A. Kozlov, and T. C. Corke, Plasma actuators for cylinder flow control and noise reduction, AIAA Journal, vol. 46, Aug. 2008, p.1921–(1931).

DOI: 10.2514/1.27821

[3] M. L. Post and T. C. Corke, Separation control using plasma actuators: dynamic stall vortex control on oscillating airfoil, AIAA Journal, vol. 42, Nov. 2004, p.3125–3135.

DOI: 10.2514/1.22716

[4] T. O. Thomas, A. Kozlov, A. ELTaweel, M. Wang, and D. Kim, Plasma flow control of cylinders in a tandem configuartion: experiment and large-eddy simulation, AIAA Paper 2010-3790.

DOI: 10.2514/6.2010-3790

[5] J. Kim, D. Kim, and H. Choi, An immersed-boundary finite-volume method for simulations of flow in complex geometries, J. Comput. Phys., vol. 171, July 2001, p.132–150.

DOI: 10.1006/jcph.2001.6778

[6] W. Shyy, B. Jayaraman, and A. Anderson, Modeling of glow discharge-induced fluid dynamics, J. Applied Phys., vol. 92, Dec. 2002, p.6434–6443.

DOI: 10.1063/1.1515103

[7] D. P. Rizzetta and M. R. Visbal, Large eddy simulation of plasma-based control strategies for bluff body flow, AIAA Journal, vol. 47, Mar. 2009, p.717–729.

DOI: 10.2514/1.39168

[8] Sohankar, C. Norberg, and L. Davidson, Numerical simulation of unsteady flow aournd a rectangular two-dimensional cylinder at incidence, J. Wind Eng. Ind. Aero., vol. 69, July-Oct. 1997, p.189–201.

DOI: 10.1016/s0167-6105(97)00154-2

[9] Y. J. Chung and S. -H. Kang, Laminar vortex shedding from a trapezoidal cylinder with different height ratios, Phys. Fluids, vol. 12, May. 2000, p.1251–1254.

DOI: 10.1063/1.870376
