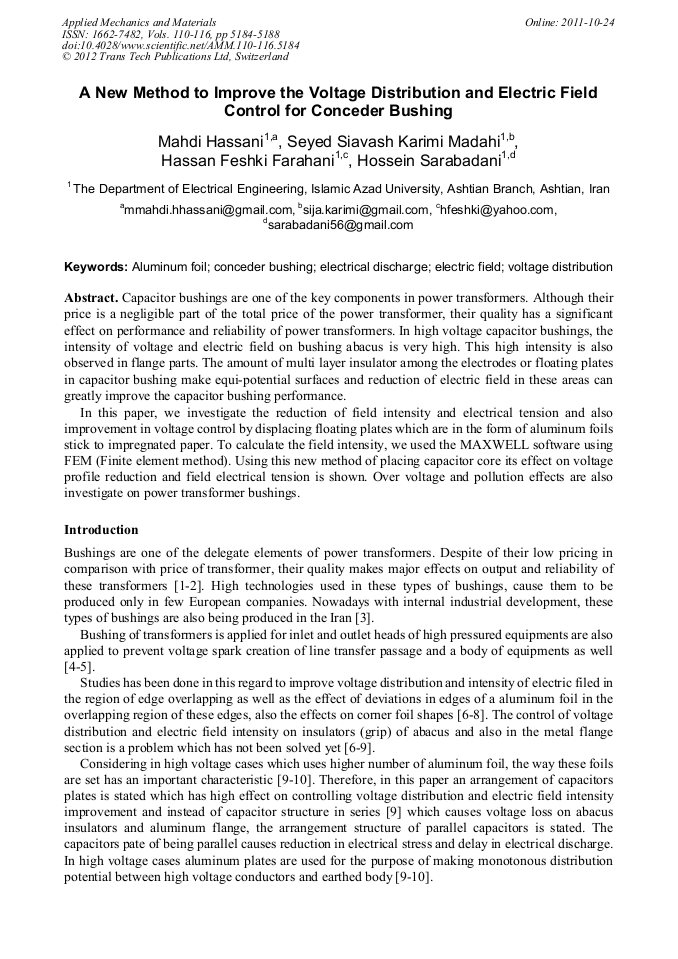

A New Method to Improve the Voltage Distribution and Electric Field Control for Conceder Bushing

Abstract:

Capacitor bushings are one of the key components in power transformers. Although their price is a negligible part of the total price of the power transformer, their quality has a significant effect on performance and reliability of power transformers. In high voltage capacitor bushings, the intensity of voltage and electric field on bushing abacus is very high. This high intensity is also observed in flange parts. The amount of multi layer insulator among the electrodes or floating plates in capacitor bushing make equi-potential surfaces and reduction of electric field in these areas can greatly improve the capacitor bushing performance. In this paper, we investigate the reduction of field intensity and electrical tension and also improvement in voltage control by displacing floating plates which are in the form of aluminum foils stick to impregnated paper. To calculate the field intensity, we used the MAXWELL software using FEM (Finite element method). Using this new method of placing capacitor core its effect on voltage profile reduction and field electrical tension is shown. Over voltage and pollution effects are also investigate on power transformer bushings.

• Periodical: Applied Mechanics and Materials (Volumes 110-116)
• Pages: 5184-5188
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.110-116.5184
• Online since: October 2011
• Authors: Mahdi Hassani, Seyed Siavash Karimi Madahi, Hassan Feshki Farahani, Hossein Sarabadani
• Keywords: Aluminum Foil, Conceder Bushing, Electric Field, Electrical Discharge, Voltage Distribution

References

[1] D.S. Kwag, H.G. Cheon, J.H. Choi, S.H. Kim, Research on the electrical insulation design of a bushing for a 154 kV class HTS transformer, Elsevier, (2007).

DOI: 10.1016/j.physc.2007.03.483

[2] Keith P. Ellis, Bushing for Power Transformers, Trench Limited, IEEE, (2004).

[3] Transformer Oil handbook, NYNAS, www. nynas. com/naphthenics.

[4] Zhang Yu, Zhang Rui, Approach to Key Technology of Line Insulators for 1000 kV ac Transmission Line, Insulators and Surge Arresters 1, pp.12-14, January (2006).

[5] Zhang Bo, Han Shejiao, He Jingliang, Numerical analysis of electric field distribution around composite insulator and head of transmission line, IEEE Transactions on power delivery, Vol. 21(1), pp.959-965, (2006).

DOI: 10.1109/tpwrd.2005.859293

[6] Imre Sebestyen, Electric-Field calculation for HV insulators using Domain Decomposition method[J], IEEE Transactions on magnetics, 2002, 38(2), pp.1213-1216.

DOI: 10.1109/20.996310

[7] Zafer Aydogmus, A neural network-based estimation of electric fields along high voltage insulators, Expert Systems with Applications 36, Elsevier, 2009, p.8705–8710.

DOI: 10.1016/j.eswa.2008.11.030

[8] J. Pihler and I. Ti car, Design of system of covered overhead conductor by means of electric field calculation, IEEE Trans. Power Del., vol. 20, no. 2, pt. 1, p.807–814, Apr. (2005).

DOI: 10.1109/tpwrd.2004.839210

[9] Hoshmand Rahmatollah, Saghafi Mehdi, Insulation and high pressure, First Edition, Chamran University Publications, (2006).

[10] Resin impregnated paper bushings, product information, ABB Power Technology products AB D. Meeker, Components, www. abb. com.

[11] Fattahi Farrokh, Engineering principles and high voltage electrical insulation, First Edition, Institute for Higher Education - Applied Power and Water Industry, (2009).

[12] J.W. Choi, J.H. Choi, H.J. Kim, J.W. Cho, S.H. Kim, A study on designing the electrical insulation of condenser – type terminations for 154kV class HTS cable, Elsevier, (2009).

DOI: 10.1016/j.physc.2009.05.032

[13] Wang Bin, Peng Zongren, A Finite Element Method for the Calculation of the Voltage Distribution along the 500kV Line Insulators, Insulators and Surge Arresters 1, pp.13-15, January (2003).

[14] Xu Zhong, Zhong Lianhong, Gu Lili, The Measurement Method of Voltage Distribution on Insulator Strings of the UHV Line, High Voltage Engineering, Vol. 24, pp.59-62, December (1998).

[15] D. Meeker, Finite element method magnetic", Version 4. 2, User, s manual, March 2, 2007, pp.50-51, 149-150.

[16] Hashemi Ghiri, Seyyed Abdolnab, Farjah Ebrahim, Sayfi Alireza, Bushing optimization using simulated capacitance electrostatic, First Edition, International Conference on Power-PSC, 09-F-HVS-0109, (2009).
