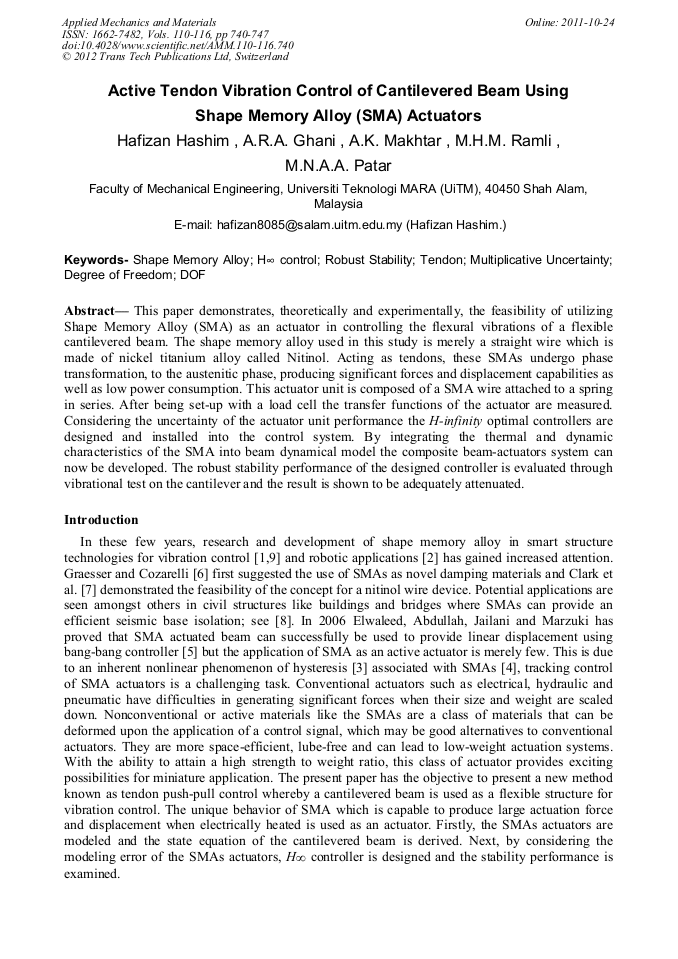

Active Tendon Vibration Control of Cantilevered Beam Using Shape Memory Alloy (SMA) Actuators

Abstract:

This paper demonstrates, theoretically and experimentally, the feasibility of utilizing Shape Memory Alloy (SMA) as an actuator in controlling the flexural vibrations of a flexible cantilevered beam. The shape memory alloy used in this study is merely a straight wire which is made of nickel titanium alloy called Nitinol. Acting as tendons, these SMAs undergo phase transformation, to the austenitic phase, producing significant forces and displacement capabilities as well as low power consumption. This actuator unit is composed of a SMA wire attached to a spring in series. After being set-up with a load cell the transfer functions of the actuator are measured. Considering the uncertainty of the actuator unit performance the H-infinity optimal controllers are designed and installed into the control system. By integrating the thermal and dynamic characteristics of the SMA into beam dynamical model the composite beam-actuators system can now be developed. The robust stability performance of the designed controller is evaluated through vibrational test on the cantilever and the result is shown to be adequately attenuated.

• Periodical: Applied Mechanics and Materials (Volumes 110-116)
• Pages: 740-747
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.110-116.740
• Online since: October 2011
• Authors: Hafizan Hashim, A.R.A. Ghani, A.K. Makhtar, M.H.M. Ramli, M.N.A.A. Patar
• Keywords: Degree of Freedom, DOF, H_∞ Control, Multiplicative Uncertainty, Robust Stability, Shape Memory Alloy Actuator, Tendon

References

[1] WangH, Li Q, Sun J. Active vibration control of rotor with shape memory alloy (SMA) spring. JMech Strength 2002; 24: 29–31.

[2] Elahinia MH, Ashrafiuon H. Nonlinear control of a SM actuated manipulator. J Vib Acoust, ASMA Trans 2002; 124: 566– 75.

[3] Mayergoyz ID. Math models of hysteresis. Berlin: Springer; (1991).

[4] DuerigTW, Melton KN, Stockel D, Wayman CM. Engineering aspects of shape memory alloys. London: Butterth Heinemann; (1990).

[5] Elwaleed Awad Khidir, Nik Abdullah Mohamed, Mohd Jailani Mohd Nor and Mohd Marzuki Mustafa, A new concept of a linear smart actuator, Sensors and Actuators A 135 (2007) 244–249.

DOI: 10.1016/j.sna.2006.07.010

[6] E.J. Graesser, F.A. Cozarelli, Shape memory alloy s as new materials for seismic isolation, J. Eng. Mech. ASCE 117 (11) (1991) 590–608.

[7] P.W. Clark, I.D. Aiken, J.M. Kelly, M. Higashino, R.C. Krumme, Experimental and analytical studies of SMA damper for structural control, in Proceedings of Passive Damping, San Diego, CA, (1995).

[8] K. Wilde, P. Gardoni, Y. Fujino, Base isolation system with SM device for elevated highway bridges, Eng. Struct. 22 (2000)222–229.

DOI: 10.1016/s0141-0296(98)00097-2

[9] S. Saadat. et al, Using NiTi SMA tendons for vibration control of.

[10] coastal structures, Smart Mater. Struct., Vol. 10, (2001)695-704.
