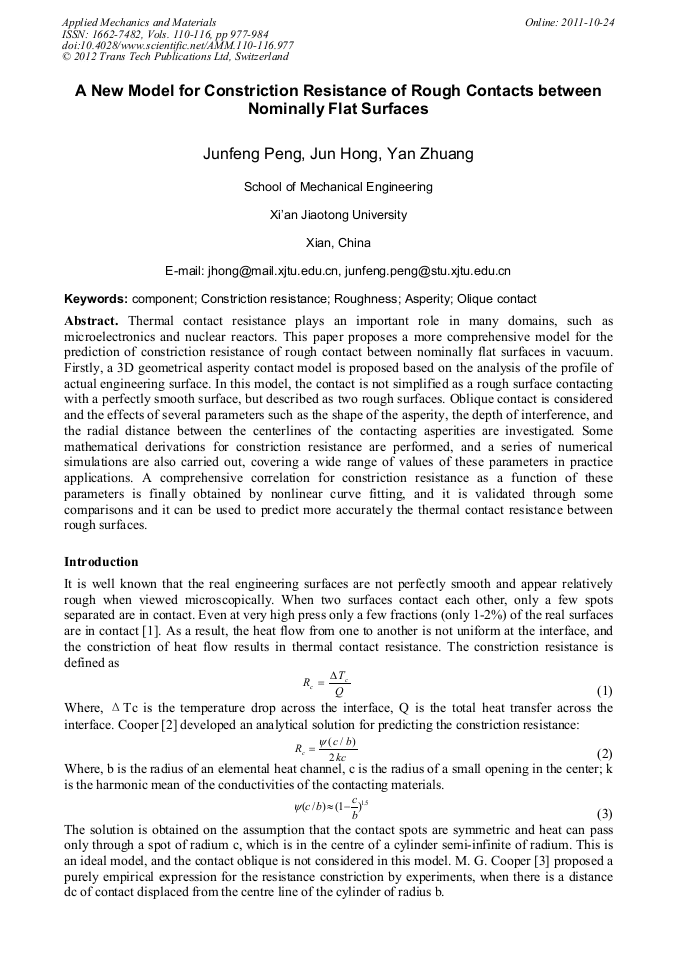

A New Model for Constriction Resistance of Rough Contacts between Nominally Flat Surfaces

Abstract:

Thermal contact resistance plays an important role in many domains, such as microelectronics and nuclear reactors. This paper proposes a more comprehensive model for the prediction of constriction resistance of rough contact between nominally flat surfaces in vacuum. Firstly, a 3D geometrical asperity contact model is proposed based on the analysis of the profile of actual engineering surface. In this model, the contact is not simplified as a rough surface contacting with a perfectly smooth surface, but described as two rough surfaces. Oblique contact is considered and the effects of several parameters such as the shape of the asperity, the depth of interference, and the radial distance between the centerlines of the contacting asperities are investigated. Some mathematical derivations for constriction resistance are performed, and a series of numerical simulations are also carried out, covering a wide range of values of these parameters in practice applications. A comprehensive correlation for constriction resistance as a function of these parameters is finally obtained by nonlinear curve fitting, and it is validated through some comparisons and it can be used to predict more accurately the thermal contact resistance between rough surfaces.

• Periodical: Applied Mechanics and Materials (Volumes 110-116)
• Pages: 977-984
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.110-116.977
• Online since: October 2011
• Authors: Jun Feng Peng, Jun Hong, Yan Zhuang
• Keywords: Asperity, Component, Constriction Resistance, Olique Contact, Roughness

References

[1] F.P. Bowden, and D. Tabor, the Friction and Lubrication of Solids, Oxford University Press, London, (1950).

[2] M. G. Cooper , B. B. Mikic, and M. M. Yovanovich, Thermal Contact conductance, Int. J. Heat Mass Transfer, vol 12, p.279, (1969).

DOI: 10.1016/0017-9310(69)90011-8

[3] M. G. Cooper, Electrolytic analogue experiments for thermal contact resistance. Rep. No. UCT/S, Cambridge University, Engineering Department, (1968).

[4] B.B. Mikic, Thermal contact conductance: Theoretical considerations, Int J. Heat Mass Transfer, Vol 17, p.205, (1974).

[5] J.A. Greenwood and J.B.P. Williamson, |contact of nominally flat surfaces, Proceedings of the royal society of London, Vol 295, p.300, (1966).

[6] J.J. Fuller and E.E. Marotta, thermal contact conductance of metal/polymer joints: an analytical and experimental investigation, J. Thermophysics and Heat Transfer, Vol. 15, p.228, (2001).

DOI: 10.2514/2.6598

[7] E. Ciulli, L.A. Ferreira, G. Pugliese, S.M.O. Tavares, Rough contacts between actual engineering surfaces: Part I. Simple models for roughness description, Wear , Vol 264, p.1105, (2007).

DOI: 10.1016/j.wear.2007.08.024

[8] J. ABDO, Modeling of frictional contact parameters of mechanical systems, Int. J. of Applied Mechanics and Engineering, Vol 11, p.449, (2006).

[9] E. L. Olsen, S. V. Garimella, and C. V. Madhusudana, Modeling of constriction resistance in coated joints, J. Thermophysics and Heat Transfer, Vol. 16 , p.207, (2002).

DOI: 10.2514/2.6686
