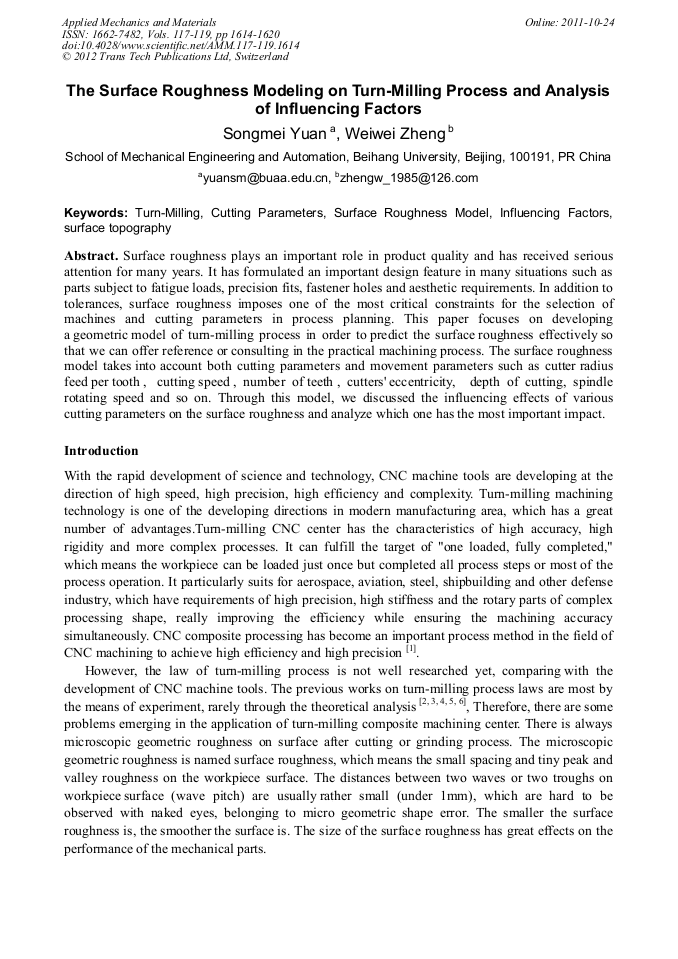

The Surface Roughness Modeling on Turn-Milling Process and Analysis of Influencing Factors

Abstract:

Surface roughness plays an important role in product quality and has received serious attention for many years. It has formulated an important design feature in many situations such as parts subject to fatigue loads、precision fits、fastener holes and aesthetic requirements. In addition to tolerances, surface roughness imposes one of the most critical constraints for the selection of machines and cutting parameters in process planning. This paper focuses on developing a geometric model of turn-milling process in order to predict the surface roughness effectively so that we can offer reference or consulting in the practical machining process. The surface roughness model takes into account both cutting parameters and movement parameters such as cutter radius feed per tooth 、 cutting speed 、number of teeth 、cutters' eccentricity、 depth of cutting、spindle rotating speed and so on. Through this model, we discussed the influencing effects of various cutting parameters on the surface roughness and analyze which one has the most important impact.

• Periodical: Applied Mechanics and Materials (Volumes 117-119)
• Pages: 1614-1620
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.117-119.1614
• Online since: October 2011
• Authors: Song Mei Yuan, Wei Wei Zheng
• Keywords: Cutting Parameter, Influencing Factor, Surface Roughness Model, Surface Topography, Turn-Milling

References

[1] H Schulz. High speed turn-milling a new precision manufacturing technology for the machining of rotationally sym-metrical workpieces [J]. Annals of the CIRP．1990．39(1)：107-109

DOI: 10.1016/s0007-8506(07)61013-0

[2] Savas V, Ozay C. Analysis of the surface roughness of tangential turn-milling for machining with end milling cutter.[J] Journal of Materials Processing Technology,2007.vol,186: 279－283

DOI: 10.1016/j.jmatprotec.2006.09.040

[3] C. X. (Jack) Feng , X. Wang. Development of Empirical Models for Surface Roughness Prediction in Finish Turning.[J] Advanced Manufacturing Technology,2002.vol,20:348-356

DOI: 10.1007/s001700200162

[4] H Schulz，T Kneisel．Turn-milling of hardened steel-an alternative to turning[J]．Annals of the CIRP．1994．43(1)：93-96

DOI: 10.1016/s0007-8506(07)62172-6

[5] Choudhury S K, K.S. Mangrulkar. Investigation of orthogonal turn-milling for the machining of rotationally symmetrical work pieces . Journal of Materials Processing Technology 99 (2000) 120-128

DOI: 10.1016/s0924-0136(99)00397-0

[6] Choudhury S K, Bajpai J B. Investigation in orthogonal turn-milling towards better surface finish. Journal of Materials Processing Technology, 2005.170(3):487－493

DOI: 10.1016/j.jmatprotec.2004.12.010

[7] C.K. Tho.Surface topography analysis in high speed finish milling inclined hardened steel. Precision Engineering.28(2004)386-398

DOI: 10.1016/j.precisioneng.2004.01.001
