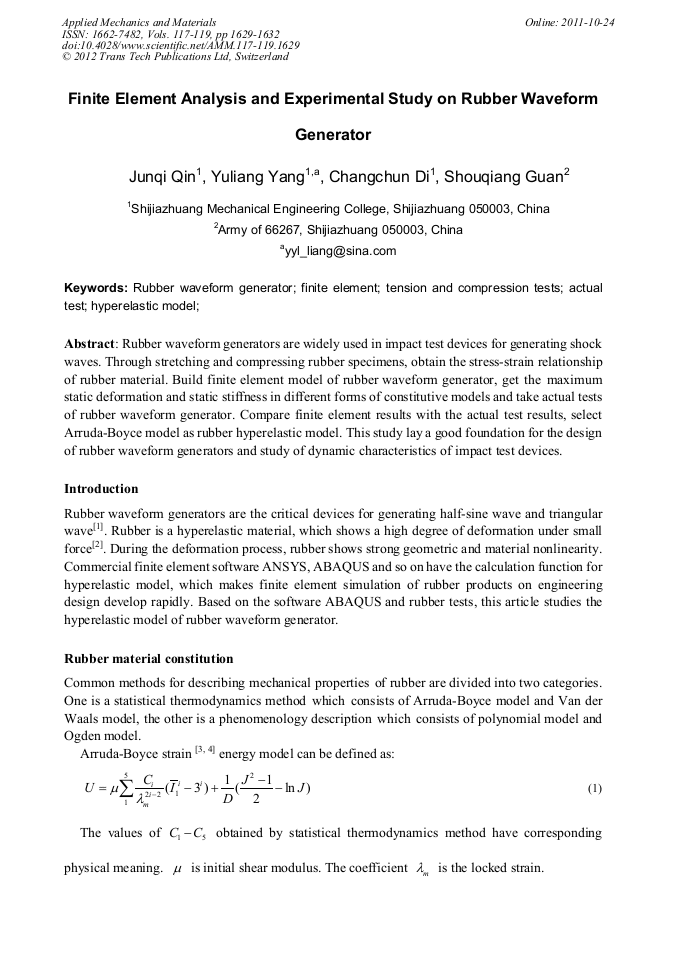

Finite Element Analysis and Experimental Study on Rubber Waveform Generator

Abstract:

Rubber waveform generators are widely used in impact test devices for generating shock waves. Through stretching and compressing rubber specimens, obtain the stress-strain relationship of rubber material. Build finite element model of rubber waveform generator, get the maximum static deformation and static stiffness in different forms of constitutive models and take actual tests of rubber waveform generator. Compare finite element results with the actual test results, select Arruda-Boyce model as rubber hyperelastic model. This study lay a good foundation for the design of rubber waveform generators and study of dynamic characteristics of impact test devices.

• Periodical: Applied Mechanics and Materials (Volumes 117-119)
• Pages: 1629-1632
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.117-119.1629
• Online since: October 2011
• Authors: Jun Qi Qin, Yu Liang Yang, Chang Chun Di, Shou Qiang Guan
• Keywords: Actual Test, Finite Element, Hyperelastic Model, Rubber Waveform Generator, Tension and Compression Tests

References

[1] GB/T14123-93, Characteristics description for shock testing machines. (In Chinese)

[2] GONG Jiqiu, GONG Zhenzhen, ZHAO Xiyong, Engineering design and application with rubber components, Shanghai JiaoTong University Press, Shanghai, 2003. (In Chinese)

[3] Zhuang Zhuo, Finite element analysis and application based on ABAQUS, Tsinghua University Press, Beijing, 2009. (In Chinese)

[4] Chen Lian, Finite element analysis and experimental study of rubber damping isolator, Ph.D., Shanghai JiaoTong University, 2003. (In Chinese)

[5] GB/T528-1998, Rubber vulcanized or thermoplastic-determination of tensile stress-strain properties. (In Chinese)

[6] A.N Gent, Rubber engineering-how to design rubber parts, Chemical Industry Press, Beijing, 2002. (In Chinese)
