Microstructure of Flame-Spray Welded Ni-Based Alloy Coating and Base Metal

Abstract:

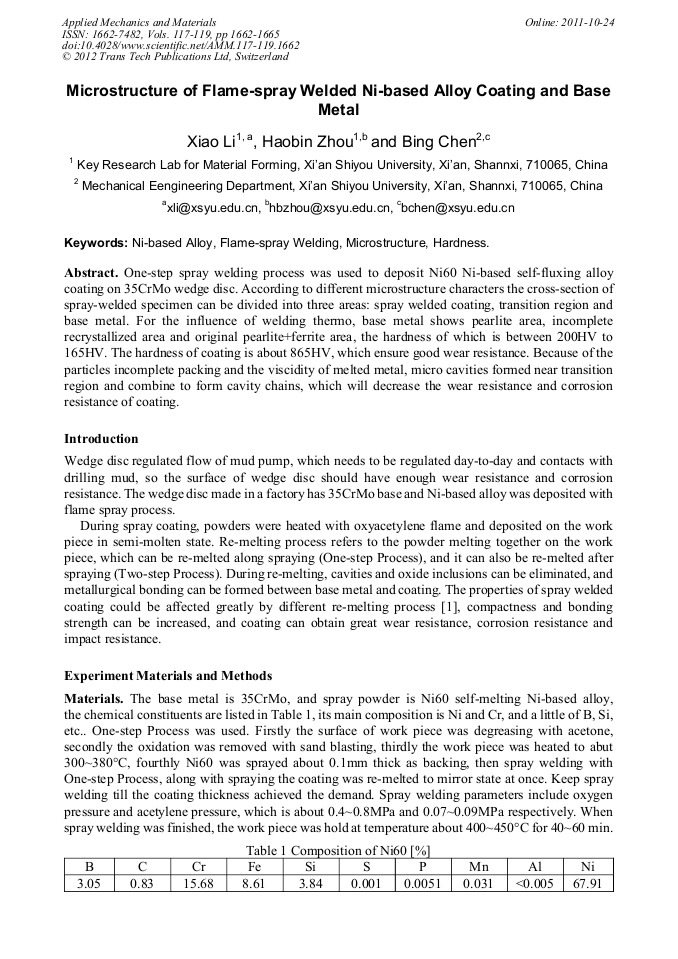

One-step spray welding process was used to deposit Ni60 Ni-based self-fluxing alloy coating on 35CrMo wedge disc. According to different microstructure characters the cross-section of spray-welded specimen can be divided into three areas: spray welded coating, transition region and base metal. For the influence of welding thermo, base metal shows pearlite area, incomplete recrystallized area and original pearlite+ferrite area, the hardness of which is between 200HV to 165HV. The hardness of coating is about 865HV, which ensure good wear resistance. Because of the particles incomplete packing and the viscidity of melted metal, micro cavities formed near transition region and combine to form cavity chains, which will decrease the wear resistance and corrosion resistance of coating.

• Periodical: Applied Mechanics and Materials (Volumes 117-119)
• Pages: 1662-1665
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.117-119.1662
• Online since: October 2011
• Authors: Xiao Li, Hao Bin Zhou, Bing Chen
• Keywords: Flame-Spray Welding, Hardness, Ni-Based Alloy

References

[1] Liu Xi: China Mechanical Engineering Vol.7(1996), p.96, In Chinese

[2] Han Wenzheng, Chen Xueding: Surface coating technology (China Machine Press, China 1994), In Chinese

[3] Li Xiao, Li Dongcai, Zhou Haobin, etc.: Welding Vol.1(2004), p.29, In Chinese

[4] Xu Binshi, Zhu Shaohua: Theory and technology of coating engineering (National Defense Industry Press, China 1999), In Chinese
