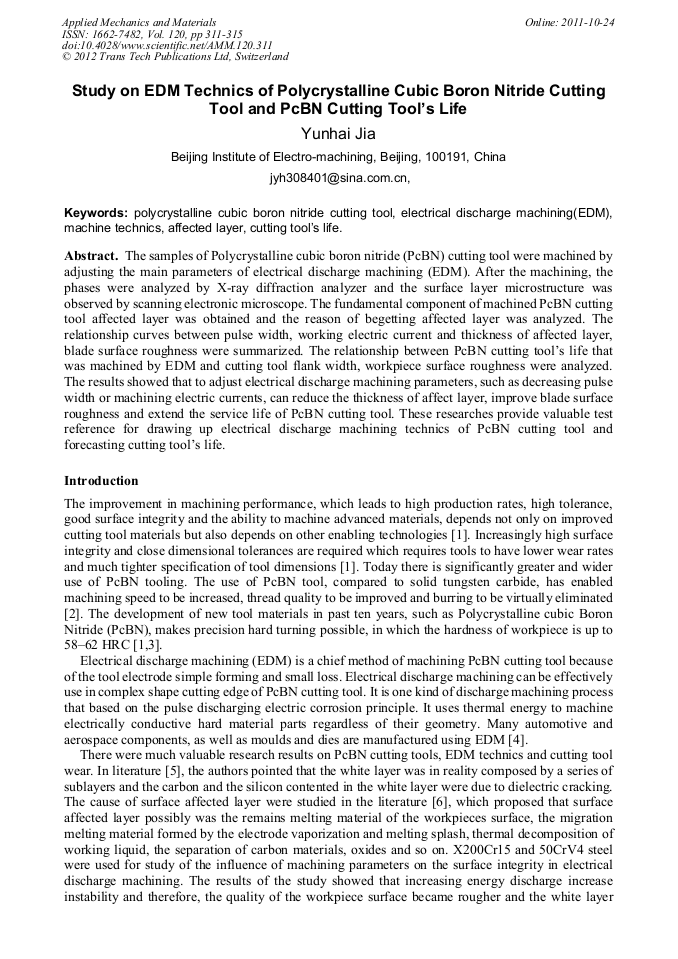

Study on EDM Technics of Polycrystalline Cubic Boron Nitride Cutting Tool and PcBN Cutting Tool’s Life

Abstract:

The samples of Polycrystalline cubic boron nitride (PcBN) cutting tool were machined by adjusting the main parameters of electrical discharge machining (EDM). After the machining, the phases were analyzed by X-ray diffraction analyzer and the surface layer microstructure was observed by scanning electronic microscope. The fundamental component of machined PcBN cutting tool affected layer was obtained and the reason of begetting affected layer was analyzed. The relationship curves between pulse width, working electric current and thickness of affected layer, blade surface roughness were summarized. The relationship between PcBN cutting tool’s life that was machined by EDM and cutting tool flank width, workpiece surface roughness were analyzed. The results showed that to adjust electrical discharge machining parameters, such as decreasing pulse width or machining electric currents, can reduce the thickness of affect layer, improve blade surface roughness and extend the service life of PcBN cutting tool. These researches provide valuable test reference for drawing up electrical discharge machining technics of PcBN cutting tool and forecasting cutting tool’s life.

• Periodical: Applied Mechanics and Materials (Volume 120)
• Pages: 311-315
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.120.311
• Online since: October 2011
• Authors: Yun Hai Jia
• Keywords: Affected Layer, Cutting Tool’s Life, Electrical Discharge Machining (EDM), Machine Technics, Polycrystalline Cubic Boron Nitride Cutting Tool

References

[1] B.Mills: Journal of Materials Processing Technology. Vol. 56(1996), p.16.

[2] M.W. Cook, P.K. Bossom: International Journal of Refractory Metals & Hard Materials. Vol. 18(2000), p.147.

[3] Adilson José de Oliveira, Anselmo Eduardo Diniz and Davi Janini Ursolino: Journal of Materials Processing Technology. Vol. 209(2009), p.5262.

[4] John Kechagias, Vassills Iakovakis and Manolis Katsanos: J Mater Sci. Vol. 43(2008), p.2522.

[5] J.P. Kruth, J.Van Humbeeck and L.Stevens: Micro structural investigation and metallographic analysis of white layer of a surface machined by electro discharge machining. Proceedings of the ISEM XI, 1995, p.849.

[6] G.Causanelli, A.Hessler-Wyser and F.Bobard: Journal of Materials Processing Technology. Vol. 149(2004), p.289.

[7] M. Boujelbene, E. Bayraktar and W. Tebni: Archives of Materials Science and Engineering.Vol. 37(2009), p.110.

[8] Bleys P, Kruth JP and Lauwers B: Advanced Engineering Materials. Vol 8(2006), p.15.

[9] Ko-Ta Chiang: Int J Adv Manuf Technol. Vol 37(2008), p.523.
