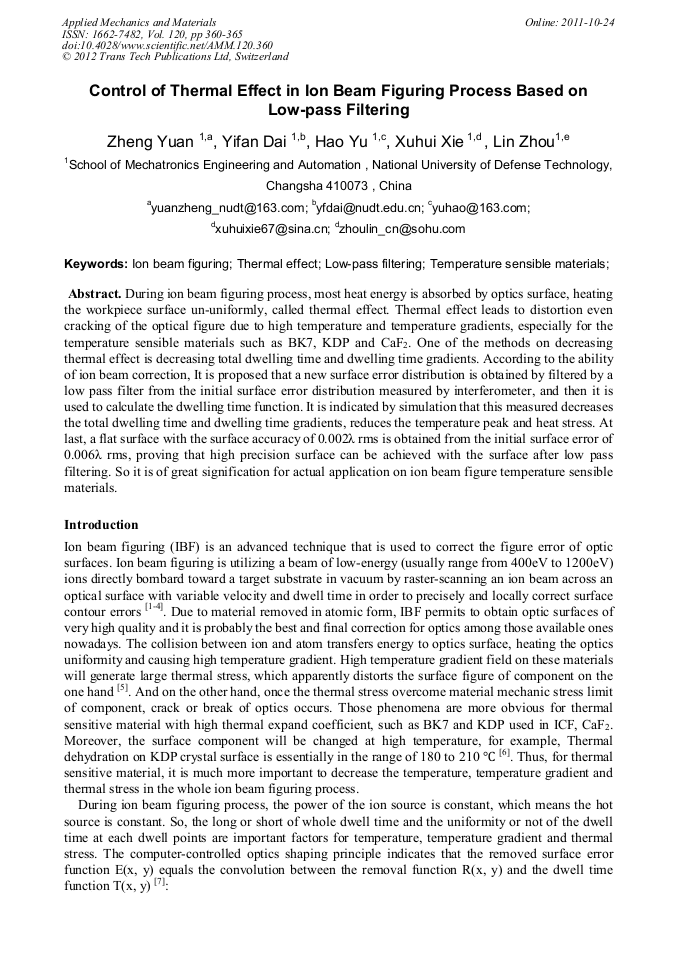

Control of Thermal Effect in Ion Beam Figuring Process Based on Low-Pass Filtering

Abstract:

During ion beam figuring process, most heat energy is absorbed by optics surface, heating the workpiece surface un-uniformly, called thermal effect. Thermal effect leads to distortion even cracking of the optical figure due to high temperature and temperature gradients, especially for the temperature sensible materials such as BK7, KDP and CaF2. One of the methods on decreasing thermal effect is decreasing total dwelling time and dwelling time gradients. According to the ability of ion beam correction, It is proposed that a new surface error distribution is obtained by filtered by a low pass filter from the initial surface error distribution measured by interferometer, and then it is used to calculate the dwelling time function. It is indicated by simulation that this measured decreases the total dwelling time and dwelling time gradients, reduces the temperature peak and heat stress. At last, a flat surface with the surface accuracy of 0.002λ rms is obtained from the initial surface error of 0.006λ rms, proving that high precision surface can be achieved with the surface after low pass filtering. So it is of great signification for actual application on ion beam figure temperature sensible materials.

• Periodical: Applied Mechanics and Materials (Volume 120)
• Pages: 360-365
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.120.360
• Online since: October 2011
• Authors: Zheng Yuan, Yi Fan Dai, Hao Yu, Xu Hui Xie, Lin Zhou
• Keywords: Ion Beam Figuring, Low-Pass Filtering, Temperature Sensible Materials, Thermal Effect

References

[1] D. Marcel, Z. Michael, A. Frank, and et al: Advanced Fabrication Technologies for Micro/Nano Optics and Photonics III, SPIE 7591(2010): 75910Y.

[2] Michael R.Nakles: Experimental and Modeling Studies of Low-Energy Ion Sputtering for Ion Thrusters. Master thesis, 2004.

[3] P. M. Shanbhag, M. R. Feinberg, G. Sandri, and et al: Applied Optics, Vol. 39(2000), pp.599-611.

[4] T. Haensel, P. Seidel, A. Nickel, and et al: Deterministic ion beam figuring of surface errors in the sub-millimeter spatial wavelength range. In 6th EUSPEN intl. conf. Baden, Vienna, Austria, 2006.

[5] Gailly, Collette, Tock, et al: Ion beam figuring of small BK7 and Zerodur optics: thermal effects. The Europe Conference on Optical Fabrication and Testing, Berlin, Germany (1999).

DOI: 10.1117/12.360136

[6] J. H. Park, K. S. Lee, and J. N. Kim: J. Phys.: Condens. Matter. Vol. 10 (1998), p.9593.

[7] L. Yang, Advanced Technology of Optics Manufacturing (Science Press, 2001).

[8] C. J. Jiao, S. Y. Li and X. H. Xie: Applied Optics, Vol.48 (2009), p: 4090-4098.

[9] M. Ghigo, R. Canestrari, D. Spiga, and et al. "Correction of high spatial frequency errors on optical surfaces by means of ion beam figuring". Proc. SPIE 6671 (2007): 667114.

DOI: 10.1117/12.734273

[10] U. Mueller, J. Stone, B. G. Peters, and et al: Modern Technologies in Space- and Ground-based Telescopes and Instrumentation, Proc. SPIE 7739 (2010), 77390B.

[11] Zhou Lin, Dai Yifan, Xie Xuhui: Key Engineering Materials, Vol. 364 (2008), pp.470-475.

[12] R. A. Jones and W. J. Rupp: Rapid optical fabrication with CCOS, Proc. SPIE 1333 (1990), p.34–43.

[13] A. Schindler, T. Hansel, F. Frost, R. Fechner, G. Seidenkranz, et al: SA/OFT (2002), OTuB5-1.
