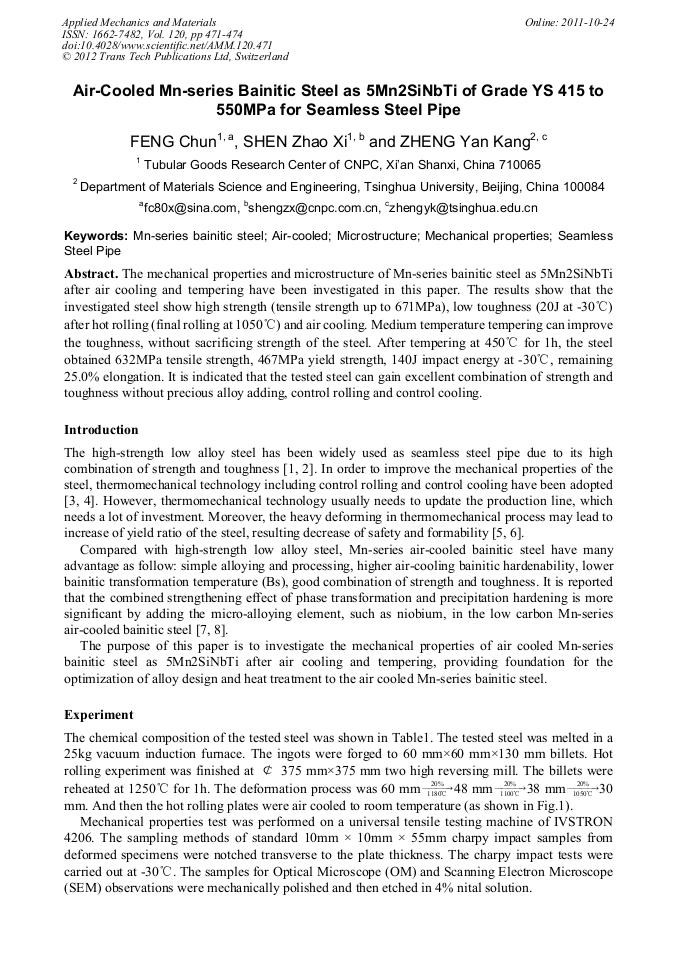

Air-Cooled Mn-Series Bainitic Steel as 5Mn2SiNbTi of Grade YS 415 to 550MPa for Seamless Steel Pipe

Abstract:

The mechanical properties and microstructure of Mn-series bainitic steel as 5Mn2SiNbTi after air cooling and tempering have been investigated in this paper. The results show that the investigated steel show high strength (tensile strength up to 671MPa), low toughness (20J at -30°C) after hot rolling (final rolling at 1050°C) and air cooling. Medium temperature tempering can improve the toughness, without sacrificing strength of the steel. After tempering at 450°C for 1h, the steel obtained 632MPa tensile strength, 467MPa yield strength, 140J impact energy at -30°C, remaining 25.0% elongation. It is indicated that the tested steel can gain excellent combination of strength and toughness without precious alloy adding, control rolling and control cooling.

• Periodical: Applied Mechanics and Materials (Volume 120)
• Pages: 471-474
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.120.471
• Online since: October 2011
• Authors: Chun Feng, Zhao Xi Shen, Yan Kang Zheng
• Keywords: Air-Cooled, Microstructure, Mn-Series Bainitic Steel, Seamless Steel Pipe

References

[1] R. Wang, C.I. Garcia and M. Hua: ISIJ Int Vol. 46 (2006), p.1345

[2] A.M. Sage: Metal Technology Vol. 10 (1983), p.224

[3] J. Mikael: ISIJ Int Vol. 46 (2006), p.1192

[4] Y.B. Xu: Journal of Materials Science and Technology Vol. 21 (2005), p.13

[5] C. Feng, HS. Fang and BZ. Bai: Acta Metall Sin Vol. 46 (2010), p.473

[6] HS. Fang, C. Feng, YK. Zheng, ZG. Yang and BZ. Bai: J. Iron Steel Res Int Vol. 15 (2008), p.1

[7] HS. Fang, JJ. Wang and ZG. Yang: Bainite Transformation (Science Press, Beijing 1999)

[8] HS. Fang, Q. Li, BZ. Bai, ZG. Yang and DY. Liu: Mater. Sci. Forum Vol. 426-432 (2003), p.201

[9] JP. Wang, ZG. Yang and BZ. Bai: Mater Sci Eng A Vol. 369 (2004), p.112
