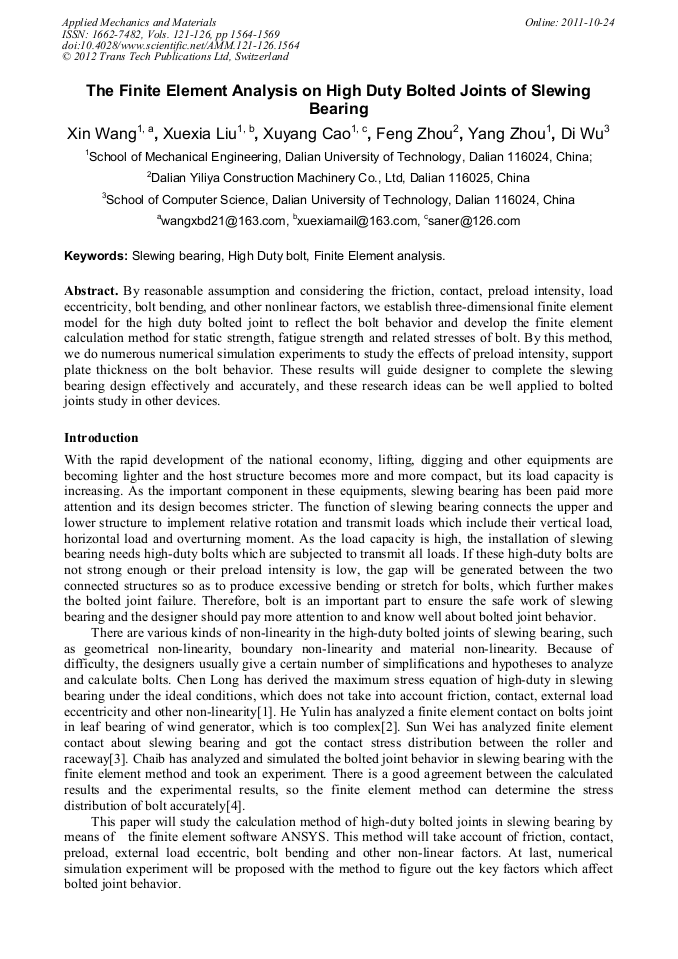

The Finite Element Analysis on High Duty Bolted Joints of Slewing Bearing

Abstract:

By reasonable assumption and considering the friction, contact, preload intensity, load eccentricity, bolt bending, and other nonlinear factors, we establish three-dimensional finite element model for the high duty bolted joint to reflect the bolt behavior and develop the finite element calculation method for static strength, fatigue strength and related stresses of bolt. By this method, we do numerous numerical simulation experiments to study the effects of preload intensity, support plate thickness on the bolt behavior. These results will guide designer to complete the slewing bearing design effectively and accurately, and these research ideas can be well applied to bolted joints study in other devices.

• Periodical: Applied Mechanics and Materials (Volumes 121-126)
• Pages: 1564-1569
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.121-126.1564
• Online since: October 2011
• Authors: Xin Wang, Xue Xia Liu, Xu Yang Cao, Feng Zhou, Yang Zhou, Di Wu
• Keywords: Finite Element Analysis (FEA), High Duty Bolt, Slewing Bearing

References

[1] Long Chen, Hui Zhang, Ming Qiu et al: Analysis on bolting behavior in slewing ring assemblies. Bearing, Vol. 8(2009), pp.10-13.

[2] Yulin He, Ligang Zhang, Dehai et al: Contact analysis of MW wind turbine hub and bearing bolt connection. Journal of Chongqing University, Vol. 32(2009), pp.762-765.

[3] Wei Sun, Wei Qin, Bin Zhu et al: Contact analysis of rotation bearing with finite element method. Journal of Mechanical Transmission, Vol. 34(2010), pp.73-75.

[4] Chaib. Z, Daidie. A, Leray. D: Screw behavior in large diameter slewing bearing assemblies: numerical and experimental analyses. International Journal On Interactive Design And Manufacturing, Vol. 1(2007), pp.21-31.

DOI: 10.1007/s12008-007-0003-7

[5] Vadean. A, Leray. D, Guillot. J: Bolted joints for very large bearings-numerical model development. Finite Elements In Analysis And Design, Vol. 42(2006), pp.298-313.

DOI: 10.1016/j.finel.2005.08.001

[6] Göncz. P, Glodež. S: Calculation model for pre-stressed bolted joints of slewing bearings. Advanced Engineering, Vol. 3(2009), pp.175-186.

[7] VDI 2230, Part 1, Systematic Calculation of High Duty Bolted Joints: Joints with One Cylindrical Bolt, VDI, Dusseldorf, Germany, (2003).

[8] Dimin Gu. Construction Crane. China Architecture&Building Press, (1987), pp.100-118.

[9] Jing Jin, XinYue Wu, JianHua Zheng. Bolt joint prestress load adding method based on transient analysis. Journal of Naval University of Engineering, Vol. 22(2010), pp.20-24.

[10] Huixun Li, Yingchun Hu, Jianzhong Zhang: Study on simulating bolt pretension by using ANSYS. Journal of Shandong University of Technology, Vol. 25(2006), pp.57-59.
