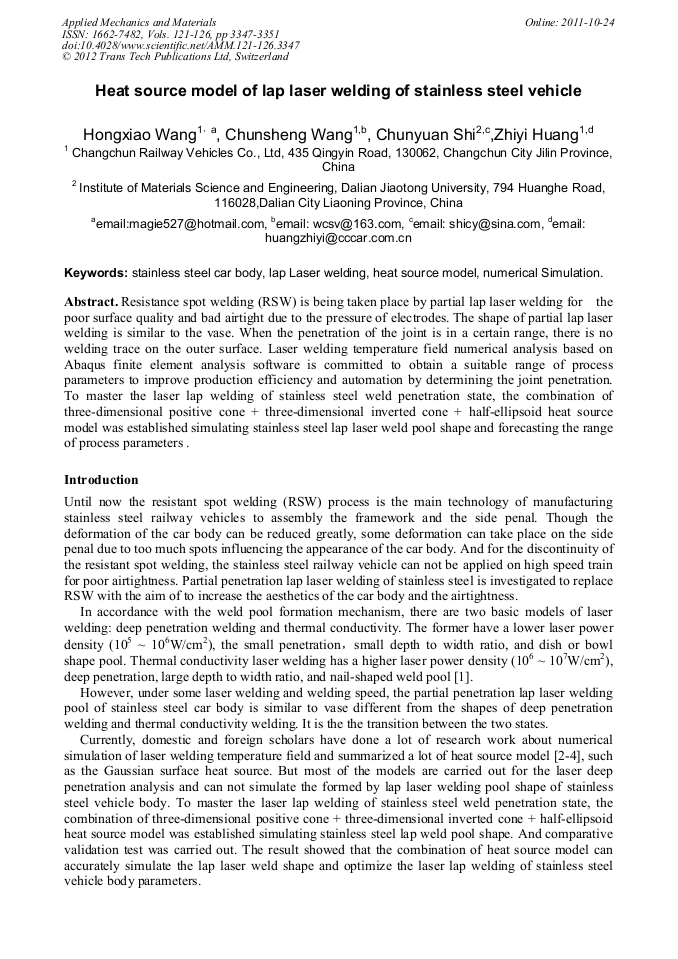

Heat Source Model of Lap Laser Welding of Stainless Steel Vehicle

Abstract:

Resistance spot welding (RSW) is being taken place by partial lap laser welding for the poor surface quality and bad airtight due to the pressure of electrodes. The shape of partial lap laser welding is similar to the vase. When the penetration of the joint is in a certain range, there is no welding trace on the outer surface. Laser welding temperature field numerical analysis based on Abaqus finite element analysis software is committed to obtain a suitable range of process parameters to improve production efficiency and automation by determining the joint penetration. To master the laser lap welding of stainless steel weld penetration state, the combination of three-dimensional positive cone + three-dimensional inverted cone + half-ellipsoid heat source model was established simulating stainless steel lap laser weld pool shape and forecasting the range of process parameters .

• Periodical: Applied Mechanics and Materials (Volumes 121-126)
• Pages: 3347-3351
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.121-126.3347
• Online since: October 2011
• Authors: Hong Xiao Wang, Chun Sheng Wang, Chun Yuan Shi, Zhi Yi Huang
• Keywords: Heat Source Model, Lap Laser Welding, Numerical Simulation, Stainless Steel Car Body

References

[1] Yang Zhongmin. Application of laser welding technology on modern automobile production [J]. Bus Technology and Research. 2008, 3: 45-48.

[2] Wanghuai Gang, Wu Chuansong. Thermal field finite element analysis of keyhole plasma arc welding [J]. Welding Technology, 2005, 26(7): 49-53.

[3] Tailor G A，Hushes M ，Pericleous K．The application of three dimension finite vohme method to the modeling of welding phenomena[A]．Modeling of casting，welding and advancod solidification process IX [C]．San Diego：Prter．Sahm R，2002．852—859.

[4] Charg W S．Na S J．A study on the prediction of the laser weld shape with vary heat source equations an d the thermal distortion of a small structure in micro—joining[J]．Journal of Materials Processing Technology，2002，120 (1)：208—214.

DOI: 10.1016/s0924-0136(01)00716-6

[5] Huzeng Rong, Zhou Jianzhong. Application of ABAQUS simulation of laser welding temperature field [J]. Laser technology , 2007, 31(3): 326-329.

[6] Hu Qinhxian. Finite element analysis of keyhole plasma arc welding temperature field [D]. Ji Nan: Shan Dong University (2007).

[7] Hongxiao Wang , ChunshengWang。 The Investigation of partial penetration lap laser welding applied on stainless steel railway vehicles。Advanced Materials Research Vols. 97-101 (2010), p: 3832-3835.

DOI: 10.4028/www.scientific.net/amr.97-101.3832
