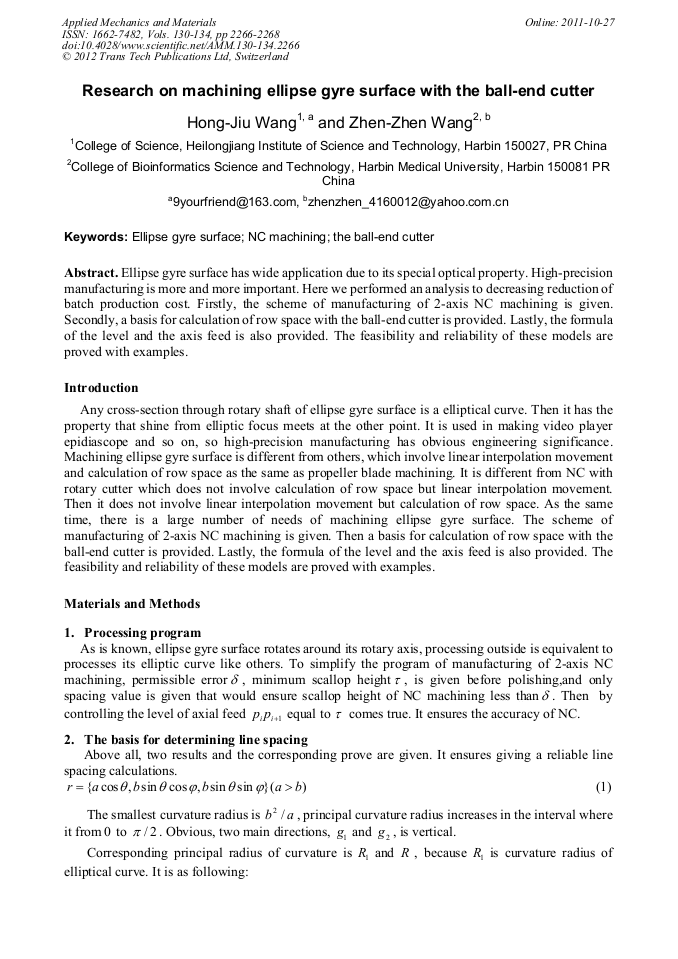

Research on Machining Ellipse Gyre Surface with the Ball-End Cutter
Ellipse gyre surface has wide application due to its special optical property. High-precision manufacturing is more and more important. Here we performed an analysis to decreasing reduction of batch production cost. Firstly, the scheme of manufacturing of 2-axis NC machining is given. Secondly, a basis for calculation of row space with the ball-end cutter is provided. Lastly, the formula of the level and the axis feed is also provided. The feasibility and reliability of these models are proved with examples.
H. J. Wang and Z. Z. Wang, "Research on Machining Ellipse Gyre Surface with the Ball-End Cutter", Applied Mechanics and Materials, Vols. 130-134, pp. 2266-2268, 2012
