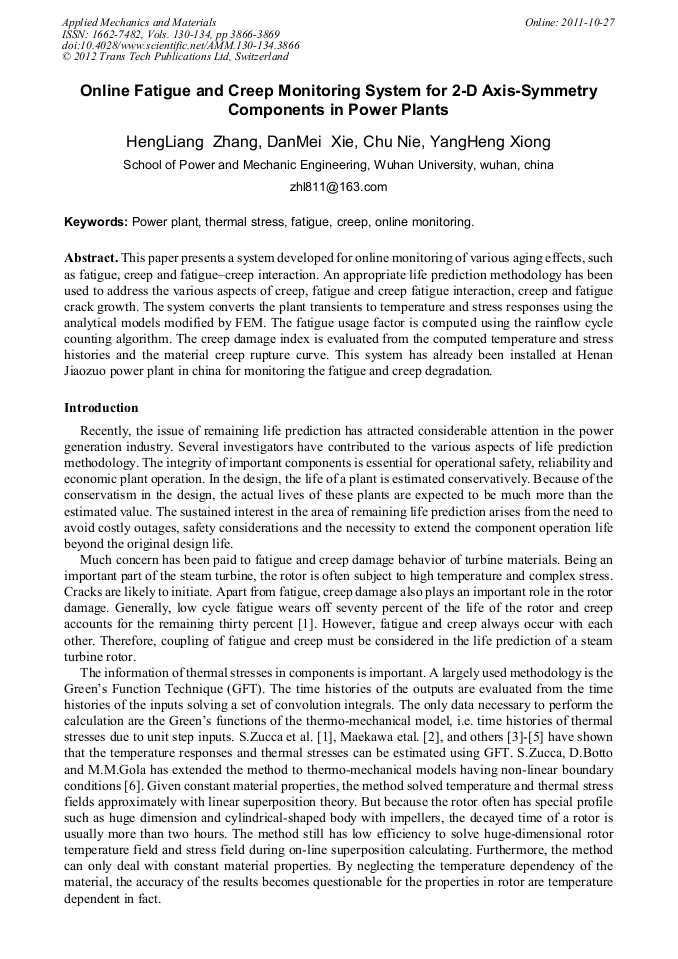

Online Fatigue and Creep Monitoring System for 2-D Axis-Symmetry Components in Power Plants

Abstract:

This paper presents a system developed for online monitoring of various aging effects, such as fatigue, creep and fatigue–creep interaction. An appropriate life prediction methodology has been used to address the various aspects of creep, fatigue and creep fatigue interaction, creep and fatigue crack growth. The system converts the plant transients to temperature and stress responses using the analytical models modified by FEM. The fatigue usage factor is computed using the rainflow cycle counting algorithm. The creep damage index is evaluated from the computed temperature and stress histories and the material creep rupture curve. This system has already been installed at Henan Jiaozuo power plant in china for monitoring the fatigue and creep degradation.

• Periodical: Applied Mechanics and Materials (Volumes 130-134)
• Pages: 3866-3869
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.130-134.3866
• Online since: October 2011
• Authors: Heng Liang Zhang, Dan Mei Xie, Chu Nie, Yang Heng Xiong
• Keywords: Creep, Fatigue, Online Monitoring, Power Plant, Thermal Stress

References

[1] N.K. Mukhopadhyay, B.K. Dutta, H.S. Kushwaha. On-line fatigue–creep monitoring system for high-temperature components of power plants: International Journal of Fatigue, vol. 23 (2001), p.549–560.

DOI: 10.1016/s0142-1123(01)00009-3

[2] Chen KL, Kuo AY. Green's function technique for structures subjected to multiple site thermal loading: Struct Mech Reactor Technol, vol. 11 (1989), p.353–8.

[3] Sakai K, Hojo K, Kato A, Umehara R. On-line fatigue-monitoring system for nuclear power plant: Nucl Eng Des, vol. 153(1994), p.19–25.

DOI: 10.1016/0029-5493(94)90017-5

[4] Botto D, Zucca S, Gola MM. A methodology for on-line calculation of temperature and thermal stress under non-linear boundary conditions: Int J Press Vessels Piping, vol. 80(2003), p.21–9.

DOI: 10.1016/s0308-0161(02)00139-4

[5] Batty. W, Snowden. C.M. Electro-thermal device and circuit simulation with thermal nonlinearity due to temperature dependent diffusivity: Electron. Lett., Vol. 36(2000), p.1966-(1968).

DOI: 10.1049/el:20001372

[6] D. Lesnic,L. Elliott and D.B. Ingham. A note on the determination of the thermal properties of a material in transient nonlinear heat conduction problem: Int comm. heat mass transfer, vol. 22(1995), pp.475-482.

DOI: 10.1016/0735-1933(95)00032-t

[7] J.C. Conde, P. Gonza´lez, F. Lusquin˜os, S. Chiussi, J. Serra, B. Leo´n. Analytical and numerical calculations of the temperature distribution in Si and Ge targets irradiated by excimer lasers: Applied Surface Science, vol. 248(2005) , p.455–460.

DOI: 10.1016/j.apsusc.2005.03.072

[8] H.L. Zhang, The Research and Development of High-Quality Thermal-Stress Online Monitoring Model for 600MW Turbine Rotors: Proceedings of the CSEE, 26(2006), pp.21-25.
