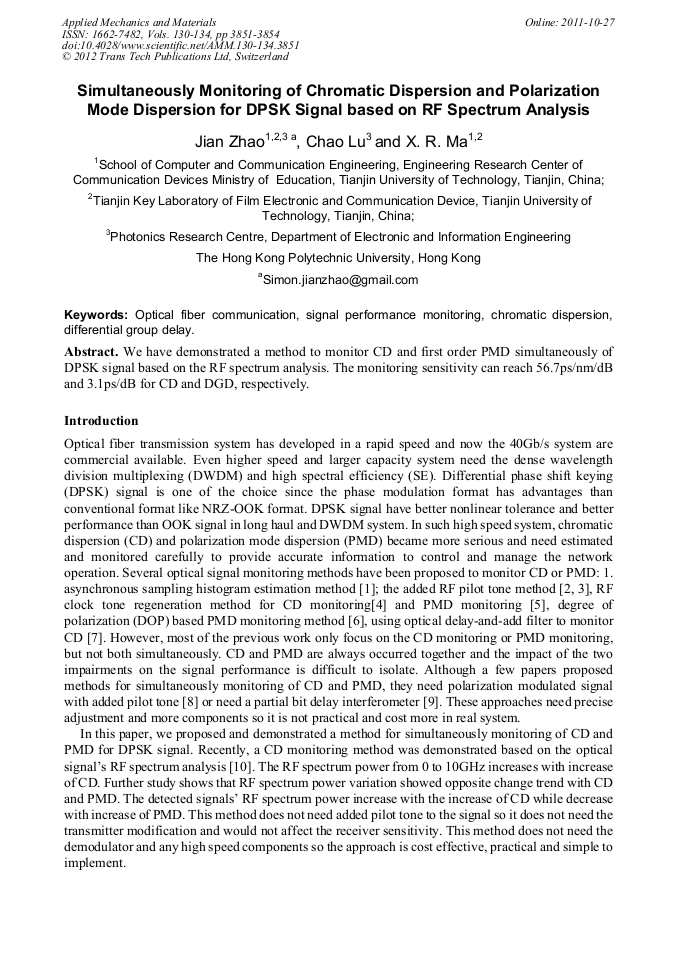

Simultaneously Monitoring of Chromatic Dispersion and Polarization Mode Dispersion for DPSK Signal Based on RF Spectrum Analysis

Abstract:

We have demonstrated a method to monitor CD and first order PMD simultaneously of DPSK signal based on the RF spectrum analysis. The monitoring sensitivity can reach 56.7ps/nm/dB and 3.1ps/dB for CD and DGD, respectively.

• Periodical: Applied Mechanics and Materials (Volumes 130-134)
• Pages: 3851-3854
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.130-134.3851
• Online since: October 2011
• Authors: Jian Zhao, Chao Lu, X. R. Ma
• Keywords: Chromatic Dispersion, Differential Group Delay, Optical Fiber Communication, Signal Performance Monitoring

References

[1] Z. Li et al., In-line performance monitoring for RZ-DPSK signals using asynchronous amplitude histogram evaluation, IEEE Photon. Technol. Lett., vol. 18, pp.472-474, (2006).

DOI: 10.1109/lpt.2005.861968

[2] H. C. Ji et al., Optical performance monitoring techniques based on pilot tones fro WDM network applications, J. Optical Networking, vol. 3, pp.510-1235, (2004).

[3] M. Petersen et al., Online chromatic dispersion monitoring and compensation using a single inband subcarrier tone, IEEE Photon. Technol. Lett., vol. 14, pp.570-572, (2002).

DOI: 10.1109/68.992614

[4] Z. Pan, et al., Monitoring chromatic dispersion and PMD impairments in optical differential phase-shift keyed (DPSK) systems, in Tech. Dig. Optical Fiber Communications (OFC2003), vol. 1, pp.402-403.

DOI: 10.1109/ofc.2003.1248298

[5] S. Nezam, et al., First-order PMD monitoring for NRZ data using RF clock regeneration techniques, JLT, vol. 22, pp.1086-1093, (2004).

DOI: 10.1109/jlt.2004.825358

[6] S. Nezam, et al., Degree-of-polarization-based PMD monitoring for subcarrier-multiplexed signals via equalized carrier/sideband filtering, JLT, vol. 22, pp.1078-1085, (2004).

DOI: 10.1109/jlt.2004.825242

[7] K. Tsai et al., Chromatic dispersion monitoring using an optical delay-and-add filter, JLT, vol. 23, pp.3737-3747, (2005).

DOI: 10.1109/jlt.2005.856230

[8] Y. Shi, et al., simultaneous polarization mode dispersion and chromatic dispersion monitoring method in 40G/bits system by polarization modulation, in Tech. Dig. Optical Fiber Communications (OFC2006), paper JThB 39.

DOI: 10.1109/ofc.2006.215820

[9] Y. Lizé et al., Independent and simultaneous monitoring of chromatic and polarization mode dispersion in OOK and DPSK transmission, IEEE Photon. Technol. Lett., vol. 19, pp.3-5, (2007).

DOI: 10.1109/lpt.2006.888039

[10] J. Zhao et al., Optical signal monitoring of DPSK signals using RF power detection, OECC2008, paper Wek-5.

[11] C. Dorrer, et al., Noise monitoring of optical signals using RF spectrum analysis and its application to phase shift keyed signals, PTL, vol. 16, pp.1781-1783, (2004).

DOI: 10.1109/lpt.2004.828832
