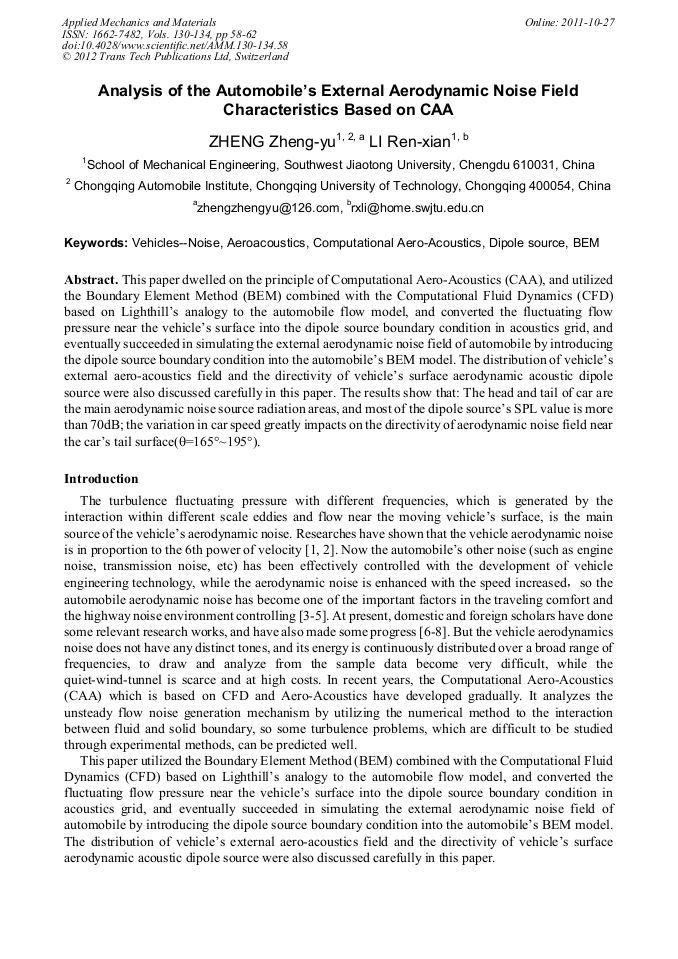

Analysis of the Automobile’s External Aerodynamic Noise Field Characteristics Based on CAA

Abstract:

This paper dwelled on the principle of Computational Aero-Acoustics (CAA), and utilized the Boundary Element Method (BEM) combined with the Computational Fluid Dynamics (CFD) based on Lighthill’s analogy to the automobile flow model, and converted the fluctuating flow pressure near the vehicle’s surface into the dipole source boundary condition in acoustics grid, and eventually succeeded in simulating the external aerodynamic noise field of automobile by introducing the dipole source boundary condition into the automobile’s BEM model. The distribution of vehicle’s external aero-acoustics field and the directivity of vehicle’s surface aerodynamic acoustic dipole source were also discussed carefully in this paper. The results show that: The head and tail of car are the main aerodynamic noise source radiation areas, and most of the dipole source’s SPL value is more than 70dB; the variation in car speed greatly impacts on the directivity of aerodynamic noise field near the car’s tail surface (θ=165°~195°).

• Periodical: Applied Mechanics and Materials (Volumes 130-134)
• Pages: 58-62
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.130-134.58
• Online since: October 2011
• Authors: Zheng Yu Zheng, Ren Xian Li
• Keywords: Aeroacoustics, BEM, Computational Aero-Acoustics, Dipole Source, Vehicles-Noise

References

[1] G. Albert R: SAE paper. 900315.

[2] L.M. FU: Automobile Aerodynamics (Machine Press, China 1998).

[3] H.G. LIU and D.Q. ZHANG: Journal of Jiangsu University, Vol. 31 (2010) No. 5, pp.525-529.

[4] Z.Y. ZHENG and R.X. LI: Journal of Chongqing Institute of Technology (Natural Science), Vol. 23 (2009) No. 6, pp.1-4.

[5] S. G ZHANG: China Railway Science, Vol. 30 (2009) No. 1, pp.86-30.

[6] H. Xia and Z. Gong: Automotive Engineering, Vol. 25 (2003) No. 1, pp.78-81.

[7] D.P. WANG and W.Z. ZHAO: Journal of The China Railway Society, Vol. 29 (2009) No. 5, pp.64-68.

[8] Y.G. XIAO and Z.C. KANG: J. Cent. South Univ, Vol. 39 (2008) No. 6, pp.1267-1272.

[9] M. J. Lighthill: Proceedings of the Royal Society of London, A, 211 (1952), pp.564-587.

[10] N. Curle: Proceedings of the Royal Society of London, A, 231 (1955), pp.505-514.

[11] J. E. Ffowcs-Williams and D. L. Hawkings: Proceedings of the Royal Society of London, A 264(1969), pp.321-342.

[12] M.E. Goldstein: Aeroacoustics (McGraw-Hill International Book Company, New york 1976).

[13] S. S LU: Theory and Application of boundary element (Higher Education Press, Beijing1990).

[14] Z. G. Li: SYSNOISE Rev5. 6 in Detail (National Defence Industry Press, Beijing 2005).

[15] LMS Corporation. SYSNOISE Revision 5. 6 Documentation.
