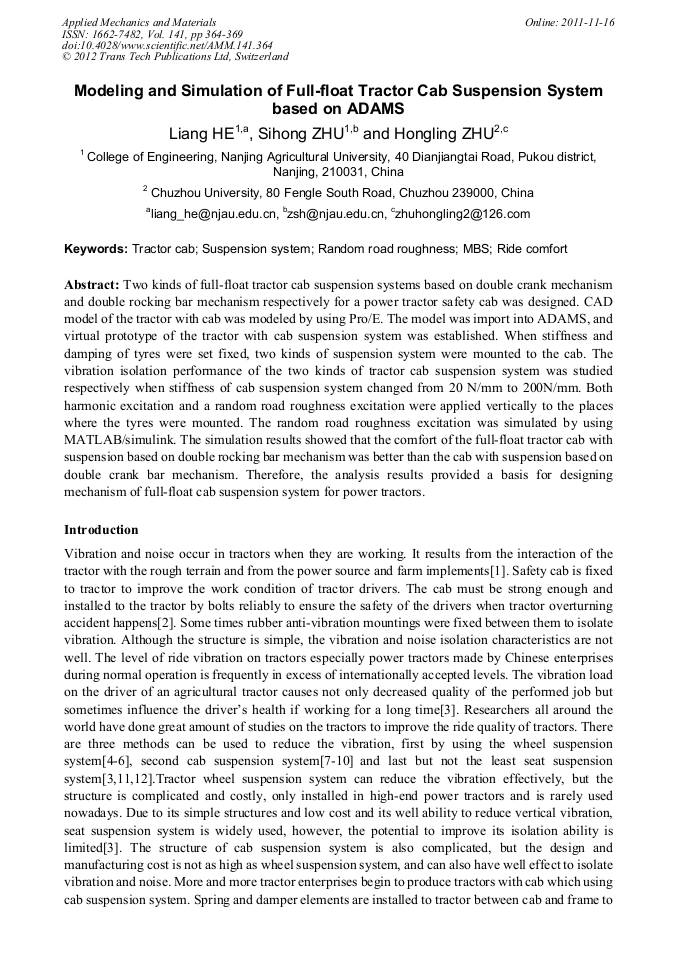

Modeling and Simulation of Full-Float Tractor Cab Suspension System Based on ADAMS

Abstract:

Two kinds of full-float tractor cab suspension systems based on double crank mechanism and double rocking bar mechanism respectively for a power tractor safety cab was designed. CAD model of the tractor with cab was modeled by using Pro/E. The model was import into ADAMS, and virtual prototype of the tractor with cab suspension system was established. When stiffness and damping of tyres were set fixed, two kinds of suspension system were mounted to the cab. The vibration isolation performance of the two kinds of tractor cab suspension system was studied respectively when stiffness of cab suspension system changed from 20 N/mm to 200N/mm. Both harmonic excitation and a random road roughness excitation were applied vertically to the places where the tyres were mounted. The random road roughness excitation was simulated by using MATLAB/simulink. The simulation results showed that the comfort of the full-float tractor cab with suspension based on double rocking bar mechanism was better than the cab with suspension based on double crank bar mechanism. Therefore, the analysis results provided a basis for designing mechanism of full-float cab suspension system for power tractors.

• Periodical: Applied Mechanics and Materials (Volume 141)
• Pages: 364-369
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.141.364
• Online since: November 2011
• Authors: Liang He, Si Hong Zhu, Hong Ling Zhu
• Keywords: MBS, Random Road Roughness, Ride Comfort, Suspension System, Tractor Cab

References

[1] Niranjan Prasad, V. K. Tewari: Journal of Terramechanics Vol. 32 (1995) No. 4, pp.205-219.

[2] He Liang, Shi Qingchun, Zhu Sihong, et al: Transactions of the CSAE Vol. 25 (2009) No. 9, pp.100-104.

[3] M. Duke, G. Goss: Biosystems Engineering Vol. 96 (2007) No. 4, pp.477-486.

[4] Lv BaoZhan, GAO HuiSong, ZHANG Ying, et al: Journal of Henan University of Science and Technology: Natural Science Vol. 28 (2007) No. 5, pp.13-17.

[5] Chen Bo: Tractor &Farm Transporter Vol. 34 (2007) No. 3, pp.9-10.

[6] Yong Yang, Weiqun Ren, Liping Chen, et al: Applied Mathematical Modelling Vol. 33 (2009) No. 1, pp.11-33.

[7] Liu Hong guang: Transactions of the CSAE Vol. 10 (2007) No. 3, pp.79-82.

[8] Lu Senlin, Liu Hongguang, Liu Zhiqiang: Transactions of the CSAM Vol. 30 (1999) No. 4, pp.13-16.

[9] Per-Anders Hansson: Computers and Electronics in Agriculture Vol. 12 (1995) No. 1, pp.35-49.

[10] J. De Temmerman, K. Deprez, I. Hostens, J. Anthonis, et al: Biosystems Engineering Vol. 90 (2005) No. 3, pp.271-278.

DOI: 10.1016/j.biosystemseng.2004.08.007

[11] Yuan Qingke: Transactions of the CSAM Vol. 26 (1995) No. 4, pp.31-35.

[12] P. Servadio, A. Marsili, N.P. Belfiore: Biosystems engineering Vol. 97 (2007) No. 2, pp.171-180.

[13] Yan Qing-dong, Li Hong-cai: Journal of System Simulation Vol. 18 (2006), pp.95-100.
