Based on the Target Track Cam Design Method and Numerical Solution Research

Abstract:

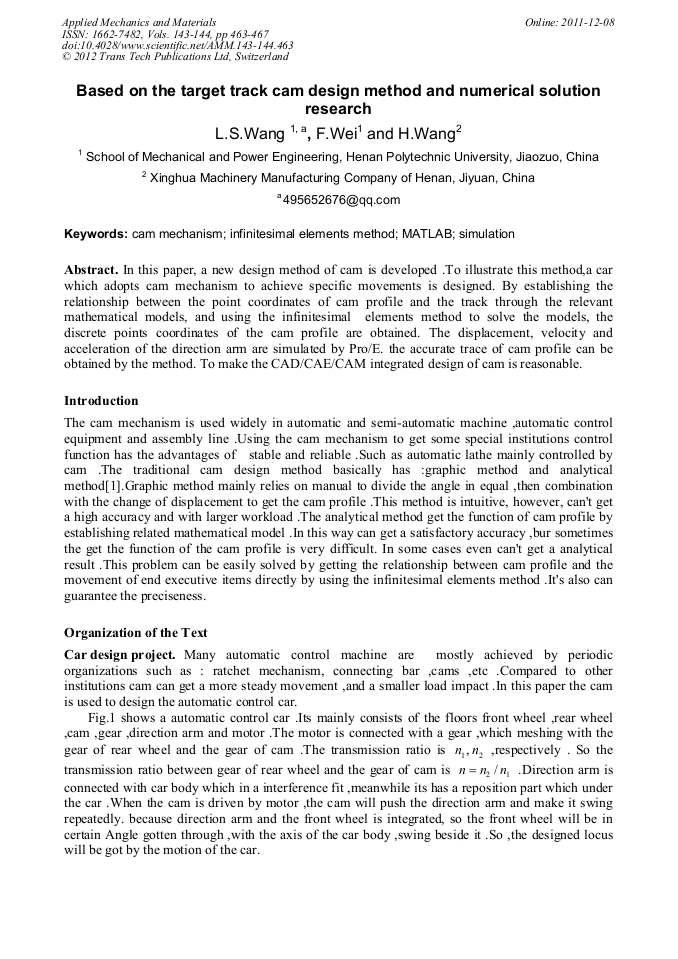

In this paper, a new design method of cam is developed .To illustrate this method,a car which adopts cam mechanism to achieve specific movements is designed. By establishing the relationship between the point coordinates of cam profile and the track through the relevant mathematical models, and using the infinitesimal elements method to solve the models, the discrete points coordinates of the cam profile are obtained. The displacement, velocity and acceleration of the direction arm are simulated by Pro/E. the accurate trace of cam profile can be obtained by the method. To make the CAD/CAE/CAM integrated design of cam is reasonable.
