Influence of Precracked Diffusion Coating of Pt-Modified Aluminide on HCF Fracture Mechanism of IN 792 Nickel-Based Superalloy

Kang Yuan; Ru Lin Peng; Xin Hai Li; Sten Johansson

doi:10.4028/www.scientific.net/AMM.148-149.24

Paper Titles

The Framework Design of E-Yuan Multimedia System
p.7

Punch Force Analysis in the Forming of "U" Clamps by Using Combination Die
p.11

Studies of Optimum Conditions for Cross-Linking Immobilization of Alkaline Protease on Graphene Oxide
p.15

Investigation on Temperature Field and Thermal Stress of Dish Solar Concentrator’s Focal Region
p.20

Influence of Precracked Diffusion Coating of Pt-Modified Aluminide on HCF Fracture Mechanism of IN 792 Nickel-Based Superalloy
p.24

Stationarity of the EEG Segment with Event-Related Potentials
p.30

Study on Growth of Oxide Scale on High Carbon Steel at High Temperature
p.34

Research on Fluorescence Imaging Detecting System of Intracellular Calcium
p.38

The Design of Promoting and Thrust Gear on Refrigerator Body
p.42

HomeApplied Mechanics and MaterialsApplied Mechanics and Materials Vols. 148-149Influence of Precracked Diffusion Coating of...

Influence of Precracked Diffusion Coating of Pt-Modified Aluminide on HCF Fracture Mechanism of IN 792 Nickel-Based Superalloy

Abstract:

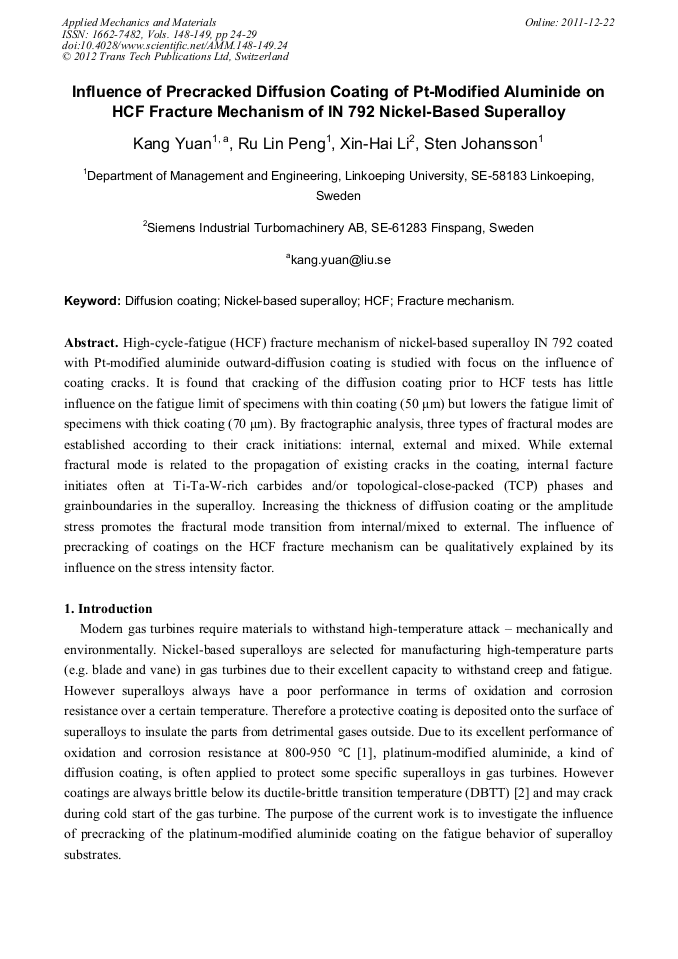

High-cycle-fatigue (HCF) fracture mechanism of nickel-based superalloy IN 792 coated with Pt-modified aluminide outward-diffusion coating is studied with focus on the influence of coating cracks. It is found that cracking of the diffusion coating prior to HCF tests has little influence on the fatigue limit of specimens with thin coating (50 μm) but lowers the fatigue limit of specimens with thick coating (70 μm). By fractographic analysis, three types of fractural modes are established according to their crack initiations: internal, external and mixed. While external fractural mode is related to the propagation of existing cracks in the coating, internal facture initiates often at Ti-Ta-W-rich carbides and/or topological-close-packed (TCP) phases and grainboundaries in the superalloy. Increasing the thickness of diffusion coating or the amplitude stress promotes the fractural mode transition from internal/mixed to external. The influence of precracking of coatings on the HCF fracture mechanism can be qualitatively explained by its influence on the stress intensity factor.
