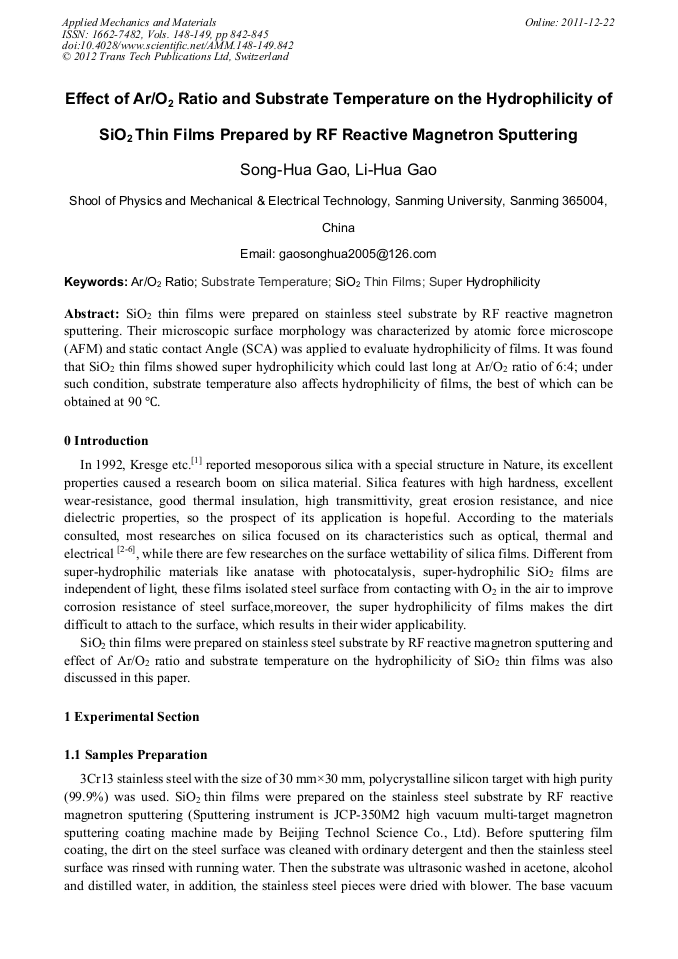

Effect of Ar/O₂ Ratio and Substrate Temperature on the Hydrophilicity of SiO₂ Thin Films Prepared by RF Reactive Magnetron Sputtering

Abstract:

SiO₂ thin films were prepared on stainless steel substrate by RF reactive magnetron sputtering. Their microscopic surface morphology was characterized by atomic force microscope (AFM) and static contact Angle (SCA) was applied to evaluate hydrophilicity of films. It was found that SiO₂ thin films showed super hydrophilicity which could last long at Ar/O₂ ratio of 6:4; under such condition, substrate temperature also affects hydrophilicity of films, the best of which can be obtained at 90 °C.

You might also be interested in these eBooks

Mechanical Engineering, Materials and Energy

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 148-149)

Pages:

842-845

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.148-149.842

Citation:

Cite this paper

Online since:

December 2011

Authors:

Song Hua Gao, Li Hua Gao

Keywords:

Ar/O₂ Ratio, SiO₂ Thin Films, Substrate Temperature, Super Hydrophilicity

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Kresge C T, Leonowicz M E, Roth W J, et al. Ordered Mesoporous Molecular Sieves Synthesized by a Liquid−Crystal Template Mechanism [J]. Nature, 1992, 359: 710-715.

DOI: 10.1038/359710a0

Google Scholar

[2] Yang Hee-Sun, Choi Se-Young, Hyun Sang-hoon, et al. Ambient-dried SiO2 aerogel thin films and their dielectric application[J]. Thin Solid Films, 1999, (348): 69-73.

DOI: 10.1016/s0040-6090(99)00016-4

Google Scholar

[3] Hrubesh L W, Poco J F. Thin aerogel films for optical, thermal, acoustic and electronic applications [J]. Journal of Non-Crystalline Solids, 1995, (188): 46-53.

DOI: 10.1016/0022-3093(95)00028-3

Google Scholar

[4] Li liang, Yao xi, Zhang liangying. Preparation and Characterization of Low Dielectric Constant Porous Sillica Films [J]. Research & Progress of SSE Solid State Electronics, 2005, 25(4): 549-553.

Google Scholar

[5] Fang yingcui, Zhu rensheng, Xia xiquan, et al. Why No Si Nanoparticles Embedded in SiOx Films Grown by Reactive Magnetron Sputtering [J]. Chinese Journal of Vacuum Science and Technology, 2009, 29(5): 461-464.

Google Scholar

[6] Zhu chunyang, Wang wenqi, Xi hua. Reactive Magnetron Sputtering Method for Deposition of Silicon Oxide Thin Films [J]. Surface Technology, 2010, 39(4): 8-10.

Google Scholar

[7] Jin gui, Zhou jicheng, Fabrication and Properties of Silicon Dioxide Film Prepared by RF Magnetron Sputtering [J]. Journal of Wuhan University of Technology, 2006, 28(8): 12-15.

Google Scholar

[8] Wenzel R.N., Resistance of solid surfaces to wetting by water [J]. Industrial and Engineering Chemistry, 1936, 28: 988-994.

DOI: 10.1021/ie50320a024

Google Scholar
