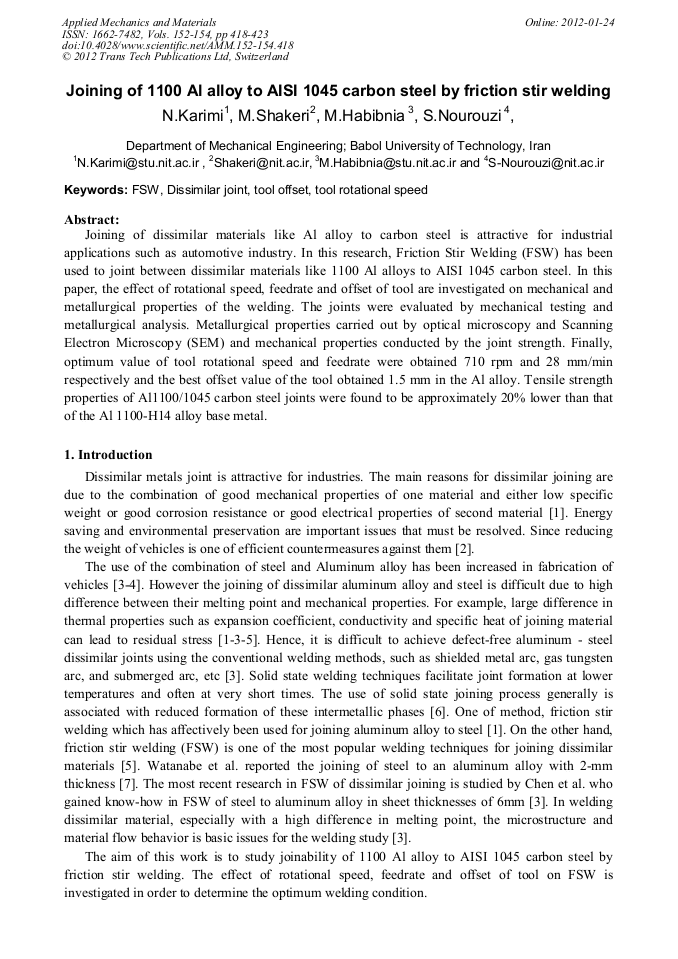

Joining of 1100 Al Alloy to AISI 1045 Carbon Steel by Friction Stir Welding

Abstract:

Joining of dissimilar materials like Al alloy to carbon steel is attractive for industrial applications such as automotive industry. In this research, Friction Stir Welding (FSW) has been used to joint between dissimilar materials like 1100 Al alloys to AISI 1045 carbon steel. In this paper, the effect of rotational speed, feedrate and offset of tool are investigated on mechanical and metallurgical properties of the welding. The joints were evaluated by mechanical testing and metallurgical analysis. Metallurgical properties carried out by optical microscopy and Scanning Electron Microscopy (SEM) and mechanical properties conducted by the joint strength. Finally, optimum value of tool rotational speed and feedrate were obtained 710 rpm and 28 mm/min respectively and the best offset value of the tool obtained 1.5 mm in the Al alloy. Tensile strength properties of Al1100/1045 carbon steel joints were found to be approximately 20% lower than that of the Al 1100-H14 alloy base metal

• Periodical: Applied Mechanics and Materials (Volumes 152-154)
• Pages: 418-423
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.152-154.418
• Online since: January 2012
• Authors: Namdar Karimi, Mohsen Shakeri, M. Habibnia, S. Nourouzi
• Keywords: Dissimilar Joint, Friction Stir Welding (FSW), Tool Offset, Tool Rotational Speed

References

[1] Emel Taban , Jerry E. Gould , John C. Lippold, Dissimilar friction welding of 6061-T6 aluminum and AISI 1018 steel: Properties and microstructural characterization, Materials and Design 31 (2010) 2305–2311.

DOI: 10.1016/j.matdes.2009.12.010

[2] Takehiko Watanabe, Hirofumi Takayama, Atsushi Yanagisawa. Joining of aluminum alloy to steel by friction stir welding. Journal of Materials Processing Technology 178 (2006) 342–349.

DOI: 10.1016/j.jmatprotec.2006.04.117

[3] C.M. Chen, R. Kovacevic. Joining of Al 6061 alloy to AISI 1018 steel by combined effects of fusion and solid state welding. International Journal of Machine Tools & Manufacture 44 (2004) 1205–1214.

DOI: 10.1016/j.ijmachtools.2004.03.011

[4] Won-Bae Lee, Martin Schmuecker, Ulises Alfaro Mercardo, Gerhard Biallasb and Seung-Boo Junga. Interfacial reaction in steel–aluminum joints made by friction stir welding. Scripta Materialia 55 (2006) 355–358.

DOI: 10.1016/j.scriptamat.2006.04.028

[5] Huseyin Uzun, Claudio Dalle Donne, Alberto Argagnotto , Tommaso Ghidini , Carla Gambaro. Friction stir welding of dissimilar Al 6013-T4 To X5CrNi18-10 stainless steel. Materials and Design 26 (2005) 41–46.

DOI: 10.1016/j.matdes.2004.04.002

[6] Tsutomu Tanaka, * Taiki Morishige and Tomotake Hirata. Comprehensive analysis of joint strength for dissimilar friction stir welds of mild steel to aluminum alloys. Scripta Materialia 61 (2009) 756–759.

DOI: 10.1016/j.scriptamat.2009.06.022

[7] T. Watanabe, H. Takawama, K. Kimapong, N. Hotta, Joining of steel to aluminum alloy by interface-activated adhesion welding, Materials Science Forum 426–432 (2003) 4129–4134.

DOI: 10.4028/www.scientific.net/msf.426-432.4129
