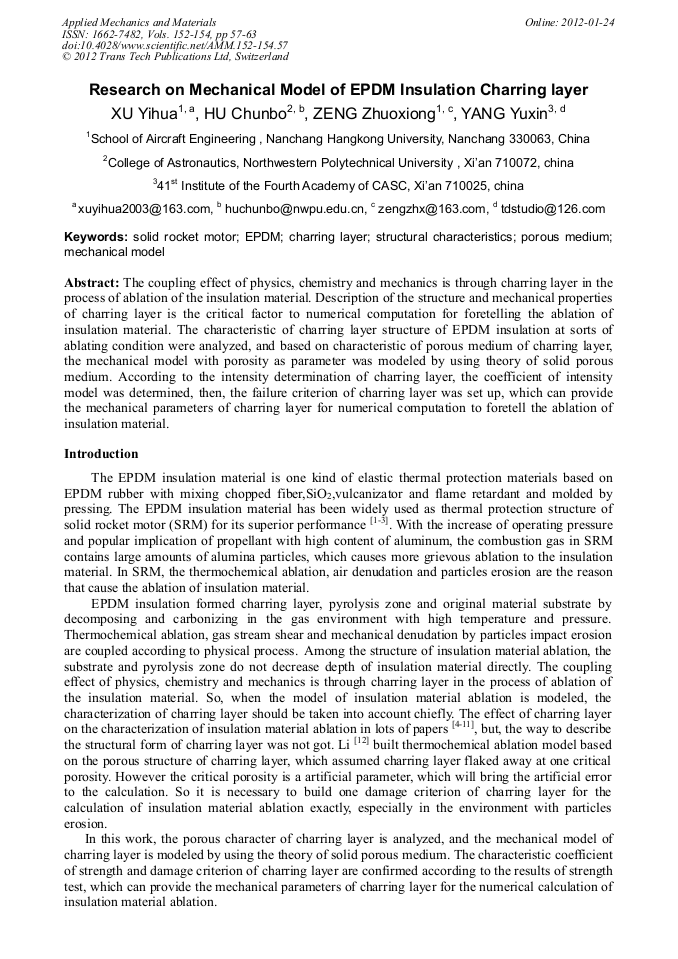

Research on Mechanical Model of EPDM Insulation Charring Layer

Abstract:

The coupling effect of physics, chemistry and mechanics is through charring layer in the process of ablation of the insulation material. Description of the structure and mechanical properties of charring layer is the critical factor to numerical computation for foretelling the ablation of insulation material. The characteristic of charring layer structure of EPDM insulation at sorts of ablating condition were analyzed, and based on characteristic of porous medium of charring layer, the mechanical model with porosity as parameter was modeled by using theory of solid porous medium. According to the intensity determination of charring layer, the coefficient of intensity model was determined, then, the failure criterion of charring layer was set up, which can provide the mechanical parameters of charring layer for numerical computation to foretell the ablation of insulation material.

• Periodical: Applied Mechanics and Materials (Volumes 152-154)
• Pages: 57-63
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.152-154.57
• Online since: January 2012
• Authors: Yi Hua Xu, Chun Bo Hu, Zhuo Xiong Zeng, Yu Xin Yang
• Keywords: Charring Layer, EPDM, Mechanical Model, Porous Medium, Solid Rocket Motor (SRM), Structural Characteristics

References

[1] ZHAO Xiaoli, YUE Hong, ZHANG Xinghang, ZHANGYing: Progress and Prospect of Ablation Resistance of Insulation of EPDM Rubber. Journal of Materials Science & Engineering, 2005, V32(2): 310-312.

[2] Ballinger I. A. and Sims Dr. D., Development of an Enhanced EPDM Elastomeric Material for use in Hydrazine Propulsion Systems. AIAA 99-2830, June (1999).

DOI: 10.2514/6.1999-2830

[3] Yezzi C. A. and Moore B. B., Characteriza- tion of Kevlar/EPDM Rubbers for Use as Rocket Motor Case Insulators[R]. AIAA-86-1489, June (1986).

DOI: 10.2514/6.1986-1489

[4] CHEN Jian，LI Jiang，LI Qiang, etc.: Carbonized layer structural features and its influence on ablation characteristic of EPDM insulator. Journal of Solid Rocket Technology, 2011, V34(1): 122-125, 130.

[5] WANG Shuxian, HE Guoqiang, etc.: Charring layer structure character of EPDM insulator in simplex thermo-chemical ablation environment. Journal of Solid Rocket Technology, 2010, V33(2): 214-217.

[6] WANG Shu-xian, HE guo-Qiang, LIU Pei-jin, LI Jiang, Liu Ze-Xiang. Effects of gas-phase speed on EPDM insulator ablation. Journal of Propulsion Technology, 2010, V31(2): 235-239.

[7] Wang Shu-xian, He Guo-qiang, Li Jiang, Liu Pei-jin, Experimental Investigation on Ablation Characteristic of EPDM Insulator in Different Gas Environments. Journal of China Ordnance, 2010, v6(2).

[8] XU Yi-hua, HU Chun-bo, ZHANG Sheng-min, CHEN Jian. Experimental Research on the Dynamic Erosion of EPDM Insulation Impacted by Particle-Laden Flow. Journal of China Ordnance, 2010, V6(4): 225-233.

[9] CHEN Jian , YANG Sa, etc.: Experimental investigation on ablation of EPDM insulator based on ablation test motor. Journal of China Ordnance, 2010, V33(5): 586-593.

[10] WANG Juan, LI Jiang, etc.: Experiment on ablation of EPDM insulator simulating overload condition. Journal of Propulsion Technology, 2010, V31(4): 618-622.

[11] Xu Yihua, Hu Chunbo, etc.: Improving Performance of EPDM Material against Ablation through Adding suitable Fibre-SiO2 Filling. Northwestern Polytechnical University, 2010, V28(4): 491-496.

[12] LI Qing, FENG Yin, LI Jiang, YANG Sa. Thermo-chemical ablation model of EPDM with porous structure characteristic[J]. Journal of Solid Rocket Technology, 2010, V33(6): 680-683, 718.

[13] XU Yihua, HU Chunbo, LI Jiang: Experimental study on the breakage characteristic of charring layer of EPDM heat-insulating material eroded by particle flow. Engineering Mechanics, 2011，V28（5）: 251-256.
