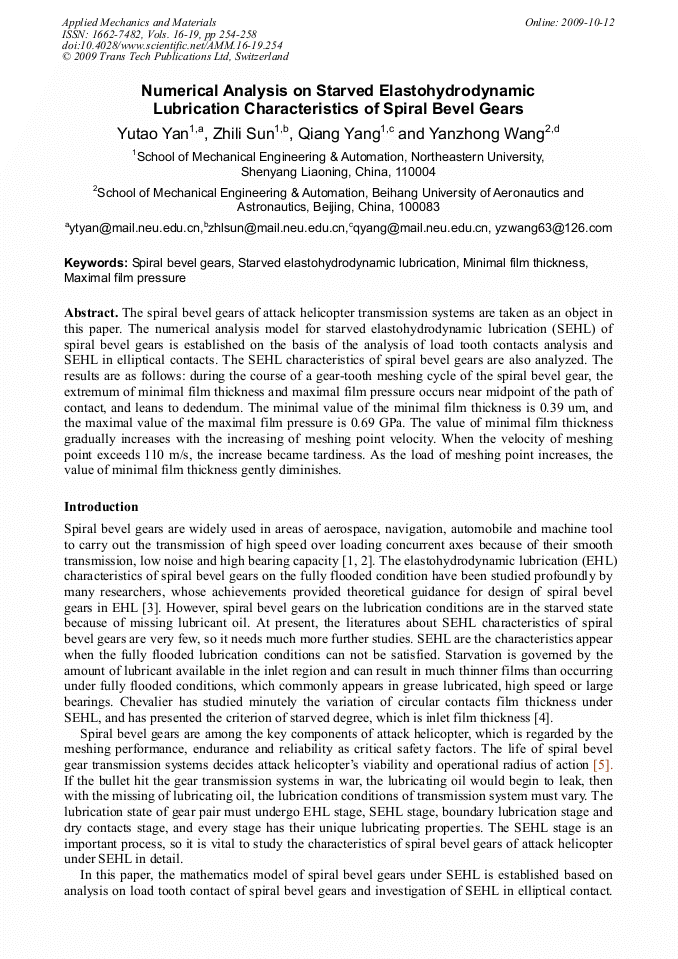

Numerical Analysis on Starved Elastohydrodynamic Lubrication Characteristics of Spiral Bevel Gears

Abstract:

The spiral bevel gears of attack helicopter transmission systems are taken as an object in this paper. The numerical analysis model for starved elastohydrodynamic lubrication (SEHL) of spiral bevel gears is established on the basis of the analysis of load tooth contacts analysis and SEHL in elliptical contacts. The SEHL characteristics of spiral bevel gears are also analyzed. The results are as follows: during the course of a gear-tooth meshing cycle of the spiral bevel gear, the extremum of minimal film thickness and maximal film pressure occurs near midpoint of the path of contact, and leans to dedendum. The minimal value of the minimal film thickness is 0.39 um, and the maximal value of the maximal film pressure is 0.69 GPa. The value of minimal film thickness gradually increases with the increasing of meshing point velocity. When the velocity of meshing point exceeds 110 m/s, the increase became tardiness. As the load of meshing point increases, the value of minimal film thickness gently diminishes.

You might also be interested in these eBooks

e-Engineering & Digital Enterprise Technology VII

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 16-19)

Pages:

254-258

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.16-19.254

Citation:

Cite this paper

Online since:

October 2009

Authors:

Yu Tao Yan, Zhi Li Sun, Qiang Yang, Yan Zhong Wang

Keywords:

Maximal Film Pressure, Minimal Film Thickness, Spiral Bevel Gear, Starved Elastohydrodynamic Lubrication

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] F.L. Litvin, A. Fuentes and K. Hayasaka: Mechanism and Machine Theory, Vol. 41 (2006) No. 1, pp.83-118.

Google Scholar

[2] X.M. Cao, Z.D. Fang, H. Xu and J.Z. Su: Chinese Journal of Aeronautics, Vol. 21 (2008) No. 2, pp.179-186.

Google Scholar

[3] S.G. Lim, D.E. Brewe and R.F. Handschuh: Tribology Series, Vol. 25 (1993) No. 3, pp.157-168.

Google Scholar

[4] F. Chevalier, A.A. Lubrecht, P.M.E. Cann and F. Colin: ASME Journal of Tribology, Vol. 120 (1998) No. 1, pp.126-133.

Google Scholar

[5] Z.D. Dai, Z.C. Liao, G.L. Liu and S.R. Yang: Mechanical Science and Technology, Vol. 18 (1999) No. 2, pp.255-258. (In Chinese).

Google Scholar

[6] Y.Z. Wang, Y.F. Zhou, J. Zhou and C.Y. Cai: Journal of Huazhong University of Science & Technology, Vol. 29(2001) No. 10, pp.68-71. (in Chinese).

Google Scholar

[7] B. Damiens, C.H. Venner, P.M.E. Cann and A.A. Lubrecht: Journal of Tribology, Vol. 126 (2004) No. 2, pp.105-111.

DOI: 10.1115/1.1631020

Google Scholar

[8] C.L. Yin and P.R. Yang: Tribology, Vol. 27 (2007) No. 2, pp.147-151. (In Chinese).

Google Scholar
