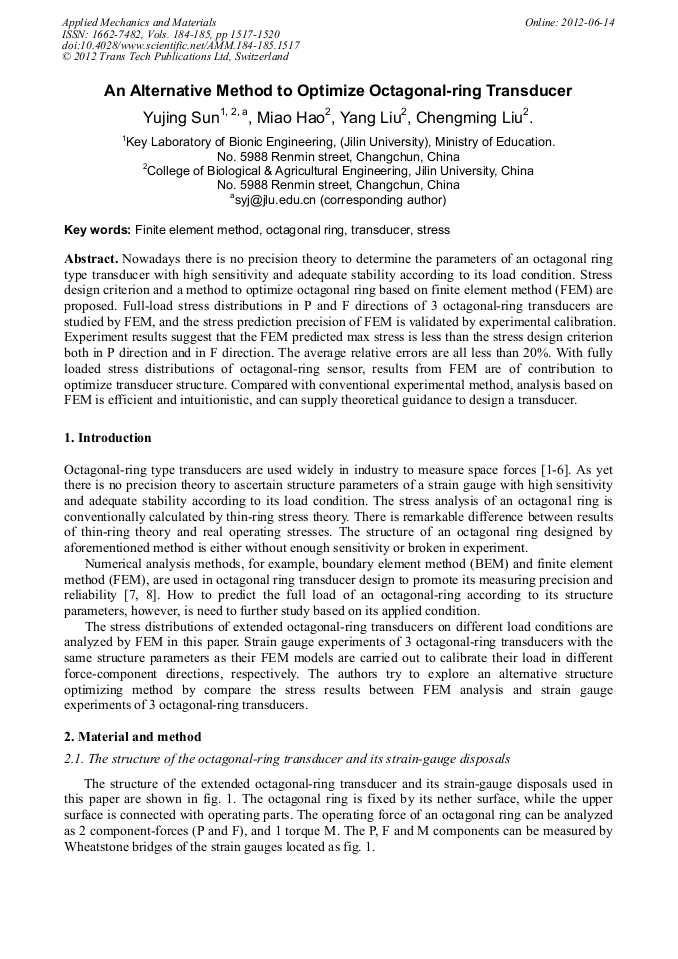

An Alternative Method to Optimize Octagonal-Ring Transducer

Abstract:

Nowadays there is no precision theory to determine the parameters of an octagonal ring type transducer with high sensitivity and adequate stability according to its load condition. Stress design criterion and a method to optimize octagonal ring based on finite element method (FEM) are proposed. Full-load stress distributions in P and F directions of 3 octagonal-ring transducers are studied by FEM, and the stress prediction precision of FEM is validated by experimental calibration. Experiment results suggest that the FEM predicted max stress is less than the stress design criterion both in P direction and in F direction. The average relative errors are all less than 20%. With fully loaded stress distributions of octagonal-ring sensor, results from FEM are of contribution to optimize transducer structure. Compared with conventional experimental method, analysis based on FEM is efficient and intuitionistic, and can supply theoretical guidance to design a transducer.

• Periodical: Applied Mechanics and Materials (Volumes 184-185)
• Pages: 1517-1520
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.184-185.1517
• Online since: June 2012
• Authors: Yu Jing Sun, Miao Hao, Yang Liu, Cheng Ming Liu
• Keywords: Finite Element Method (FEM), Octagonal Ring, Stress, Transducer

References

[1] Sedat Karabay. Analysis of drill dynamometer with octagonal ring type transducers for monitoring of cutting forces in drilling and allied process [J]. Materaials & Design. 28(2007) 673-685.

DOI: 10.1016/j.matdes.2005.07.008

[2] Zhao Xin, Luo Xiwen, L.G. Wells. Development of continuous measurement system for soil resistance [J]. Transactions of the CSAE. 25(2009. 2) 67-71. (in Chinese with English abstract).

[3] XU Lin-yun, LIU Jun, LI Zhao-chun. Study on triaxial forces sensor of octagonal ring [J]. Journal of Nanjing Forestry University (Natural Sciences Edition). 32(2008. 4) 121-124.

[4] ZHENG Hui, YU Zhen, YUAN Sha, LI Yong-zhi, CHEN Ding-fang. Research on measuring system of cutting force for micro-feed tool carrier based on labview [J]. Equipment Manufactring Technology. (2010. 1) 22-24.

[5] R.J. Godwin：An Extended Octagonal Ring Transducer for Use in Tillage Studies [J]．J. Agric. Engng Res. 20(1975) 347-352.

[6] Yujing Sun, Qiang Zhang. Design and Application of Measurement system in Agricultural Engineering [M]. Press of Jilin University. Changchun, (2011).

[7] XieXiao mi, Zhang Dejun, Xu Guanggeng. A numerical test method for the extended octagonal ring transducer— application of BEM in agricultural engineering [J]. Transactions of the Chinese Society for Agricultuiral Machinery. (1985. 1) 24-34.

[8] WANG Ji-sheng, LI Xiang-feng, ZUO Dun-we, ect. Model analysis of three-dimensional octagon ring-type dynamometer for friction stir welding [J]. Machine Building Automation. 4(2011. 4) 17-19.
