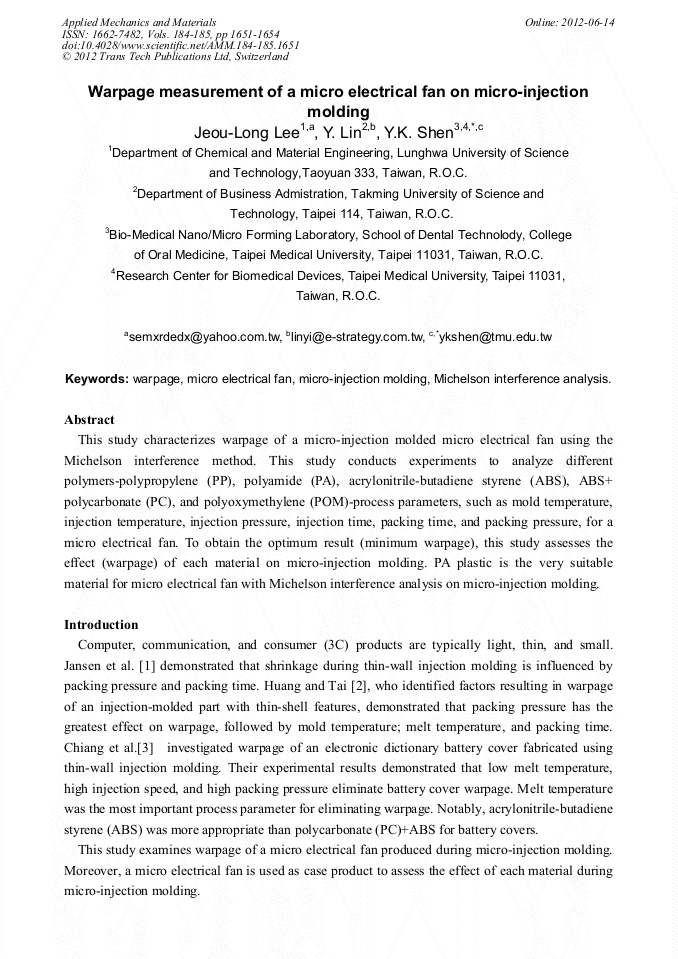

Warpage Measurement of a Micro Electrical Fan on Micro-Injection Molding

Abstract:

This study characterizes warpage of a micro-injection molded micro electrical fan using the Michelson interference method. This study conducts experiments to analyze different polymers-polypropylene (PP), polyamide (PA), acrylonitrile-butadiene styrene (ABS), ABS+ polycarbonate (PC), and polyoxymethylene (POM)-process parameters, such as mold temperature, injection temperature, injection pressure, injection time, packing time, and packing pressure, for a micro electrical fan. To obtain the optimum result (minimum warpage), this study assesses the effect (warpage) of each material on micro-injection molding. PA plastic is the very suitable material for micro electrical fan with Michelson interference analysis on micro-injection molding.

• Periodical: Applied Mechanics and Materials (Volumes 184-185)
• Pages: 1651-1654
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.184-185.1651
• Online since: June 2012
• Authors: Jeou Long Lee, Y. Lin, Yung Kang Shen
• Keywords: Michelson Interference Analysis, Micro Electrical Fan, Micro-Injection Molding, Warpage

References

[1] K. M. B. Jansen, R. Pantani, T.G. Titomanlio, Polym. Eng. Sci. 38 (1998) 256.

[2] M.C. Huang, C.C. Tai, J. Mater. Process. Tech. 110 (2001) 1.

[3] Y.C. Chiang, H.C. Cheng, C.F. Huang, J.L. Lee, Y. Lin, Y.K. Shen, Int. J. Adv. Manuf. Technol. 55 (2011) 517.
