Finite Element Analysis of ZY18000/32/70D Hydraulic Support Double Telescopic Mast

Abstract:

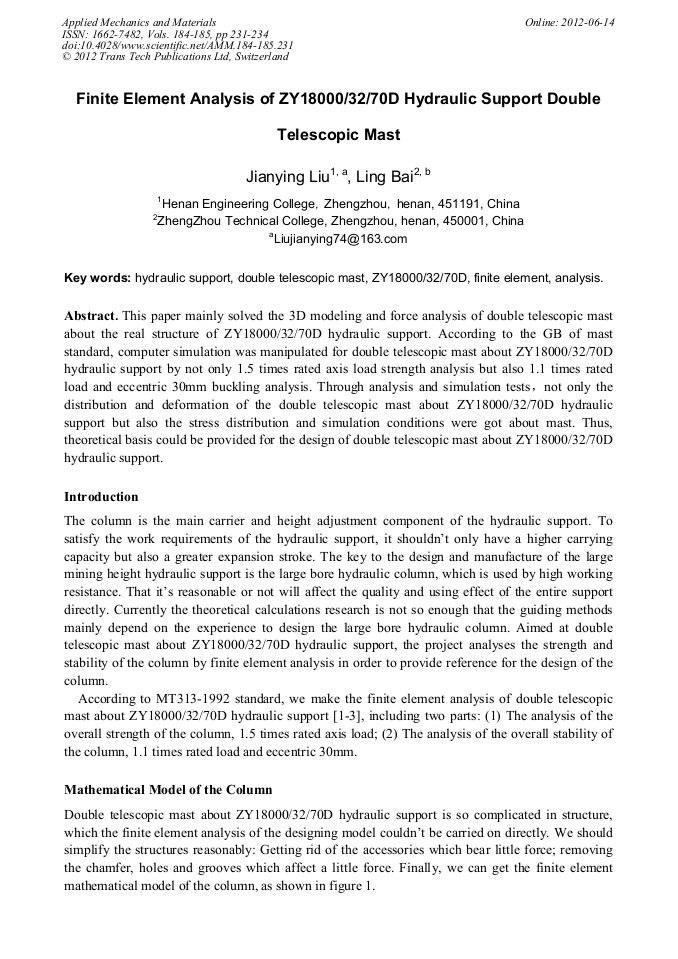

This paper mainly solved the 3D modeling and force analysis of double telescopic mast about the real structure of ZY18000/32/70D hydraulic support. According to the GB of mast standard, computer simulation was manipulated for double telescopic mast about ZY18000/32/70D hydraulic support by not only 1.5 times rated axis load strength analysis but also 1.1 times rated load and eccentric 30mm buckling analysis. Through analysis and simulation tests，not only the distribution and deformation of the double telescopic mast about ZY18000/32/70D hydraulic support but also the stress distribution and simulation conditions were got about mast. Thus, theoretical basis could be provided for the design of double telescopic mast about ZY18000/32/70D hydraulic support.

• Periodical: Applied Mechanics and Materials (Volumes 184-185)
• Pages: 231-234
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.184-185.231
• Online since: June 2012
• Authors: Jian Ying Liu, Ling Bai
• Keywords: Analysis, Double Telescopic Mast, Finite Element, Hydraulic Support, ZY18000/32/70D
