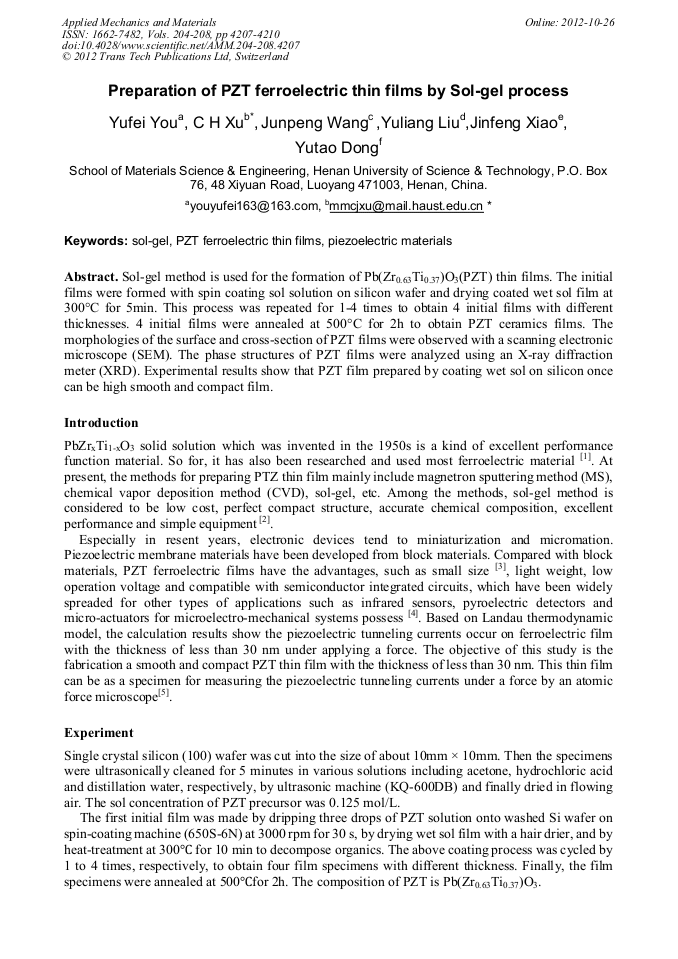

Preparation of PZT Ferroelectric Thin Films by Sol-Gel Process

Abstract:

Sol-gel method is used for the formation of Pb(Zr0.63Ti0.37)O3(PZT) thin films. The initial films were formed with spin coating sol solution on silicon wafer and drying coated wet sol film at 300°C for 5min. This process was repeated for 1-4 times to obtain 4 initial films with different thicknesses. 4 initial films were annealed at 500°C for 2h to obtain PZT ceramics films. The morphologies of the surface and cross-section of PZT films were observed with a scanning electronic microscope (SEM). The phase structures of PZT films were analyzed using an X-ray diffraction meter (XRD). Experimental results show that PZT film prepared by coating wet sol on silicon once can be high smooth and compact film.

You might also be interested in these eBooks

Progress in Industrial and Civil Engineering

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 204-208)

Pages:

4207-4210

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.204-208.4207

Citation:

Cite this paper

Online since:

October 2012

Authors:

Yu Fei You, C. H. Xu, Jun Peng Wang, Yu Liang Liu, Jin Feng Xiao, Yu Tao Dong

Keywords:

Piezoelectric Material, PZT Ferroelectric Thin Films, Sol-Gel (SG)

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Chunlin Fu. Ferroelectric films thin materials and application[M](In Chinese). Beijing:Science Press, 2009:5-20

Google Scholar

[2] Peinen He, Mmeidong Liu, Chunru Lu.Influence of PZT ferroelectric thin films Structure by sol-gel[J](In Chinese). Piezoelectrics and Acoustooptics, 1994, 16(5):44-47

Google Scholar

[3] J. Pe'rez, P. M. Vilarinho, A. L. Kholkin, A. Almeida. Sol–gel reaction stability studied: Influence in the formation temperature and properties of ferroelectric thin films [J]. Materials Research Bulletin, 2009 (44):515-521R.

DOI: 10.1016/j.materresbull.2008.07.010

Google Scholar

[4] Waser, A. Rüdiger. Ferroelectrics : pushing towards the digital storage limits[J]. Nat Mater, 2004,3(2):81-82

Google Scholar

[5] Y. Zheng, C. H. Woo. Giant piezoelectric resistance in ferroelectric tunnel junctions [J]. Nanotechnology, 2009,20:075401

DOI: 10.1088/0957-4484/20/7/075401

Google Scholar

[6] C. H. Xu, C. H. Woo, S. Q. Shi, Y. Wang. Behavior of a movable electrode in piezo-response mode of an atomic force microscope[J]. J. Appl. Phys, 2004,95:8431-8435

DOI: 10.1063/1.1739532

Google Scholar
