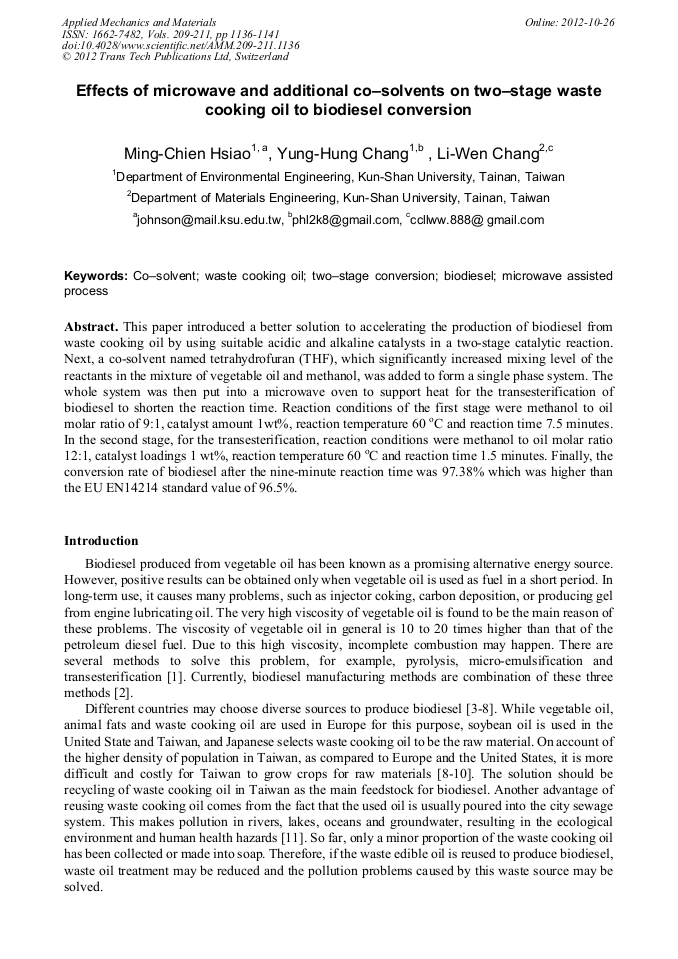

Effects of Microwave and Additional Co–Solvents on Two–Stage Waste Cooking Oil to Biodiesel Conversion

Abstract:

This paper introduced a better solution to accelerating the production of biodiesel from waste cooking oil by using suitable acidic and alkaline catalysts in a two-stage catalytic reaction. Next, a co-solvent named tetrahydrofuran (THF), which significantly increased mixing level of the reactants in the mixture of vegetable oil and methanol, was added to form a single phase system. The whole system was then put into a microwave oven to support heat for the transesterification of biodiesel to shorten the reaction time. Reaction conditions of the first stage were methanol to oil molar ratio of 9:1, catalyst amount 1wt%, reaction temperature 60 oC and reaction time 7.5 minutes. In the second stage, for the transesterification, reaction conditions were methanol to oil molar ratio 12:1, catalyst loadings 1 wt%, reaction temperature 60 oC and reaction time 1.5 minutes. Finally, the conversion rate of biodiesel after the nine-minute reaction time was 97.38% which was higher than the EU EN14214 standard value of 96.5%.

• Periodical: Applied Mechanics and Materials (Volumes 209-211)
• Pages: 1136-1141
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.209-211.1136
• Online since: October 2012
• Authors: Ming Chien Hsiao, Yung Hung Chang, Li Wen Chang
• Keywords: Bio-Diesel, Co–Solvent, Microwave Assisted Process, Two-Stage Conversion, Waste Cooking Oil (WCO)

References

[1] A. Demirbas, Biodiesel fuels from vegetable oils via catalytic and non-catalytic supercritical alcohol transesterifications and other methods: a survey. Energy Conv. Manag. 44 (2003) 2093-2109.

DOI: 10.1016/s0196-8904(02)00234-0

[2] L.C. Meher, D.V. Sagar, S.N. Naik, Technical aspects of biodiesel production by transesterification—a review. Renew. Sust. Energ. Rev. 10, (2006) 248-268.

[3] M.C. Hsiao, C.C. Lin, Y.H. Chang, L.C. Chen, Ultrasonic mixing and closed microwave irradiation assisted transesterification of soybean oil. Fuel 89, (2010) 3618-3622.

DOI: 10.1016/j.fuel.2010.07.044

[4] M.C. Hsiao, C.C. Lin, Y.H. Chang, Microwave irradiation-assisted transesterification of soybean oil to biodiesel catalyzed by nanopowder calcium oxide. Fuel 90, (2011) 1963-1967.

DOI: 10.1016/j.fuel.2011.01.004

[5] Q. Fengxian, L. Yihuai, Y. Dongya, L. Xiaohua, S. Ping, Biodiesel production from mixed soybean oil and rapeseed oil. Appl. Energy 88, (2011) 2050-2055.

DOI: 10.1016/j.apenergy.2010.12.070

[6] S. Chanatip, C. Chaiyan, R. Prasert, Biodiesel production by methanolysis of soybean oil using calcium supported on mesoporous silica catalyst. Energy Conv. Manag. 51, (2010) 1428-1431.

DOI: 10.1016/j.enconman.2010.01.017

[7] T. Wyatt, M. Seth, G. Travis, The U.S. biodiesel use mandate and biodiesel feedstock markets. Biomass Bioenerg. 34, (2010) 883-889.

DOI: 10.1016/j.biombioe.2010.01.033

[8] Y.H. Huang, J.H. Wu, Analysis of biodiesel promotion in Taiwan. Renew. Sust. Energ. Rev. 12, (2008) 1176-1186.

[9] J.F. Liu, J.A. Jonsson, G.B. Jiang, Application of ionic liquids in analytical chemistry. ChemInform 24 (2005), 20-27.

[10] X. Liu, H. He, Y. Wang, S. Zhu, X. Piao, Transesterification of soybean oil to biodiesel using CaO as a solid base catalyst. Fuel 87, (2008) 216-221.

DOI: 10.1016/j.fuel.2007.04.013

[11] M. Lapuerta, F.J. Rodriguez, J.R. Agudelo, Diesel particulate emissions from used cooking oil biodiesel. Bioresour. Technol. 99, (2008) 731-740.

DOI: 10.1016/j.biortech.2007.01.033

[12] X. Yuan, J. Liu, G. Zeng, J. Shi, J. Tong, G. Huang, Optimization of conversion of waste rapeseed oil with high FFA to biodiesel using response surface methodology. Renew. Energy 33, (2007) 1678-1684.

DOI: 10.1016/j.renene.2007.09.007

[13] A.K. Singh, S.D. Fernando, R. Hernandez, Base-catalyzed fast transesterification of soybean oil using ultrasonication. Energy Fuels 21, (2007) 1161-1164.

DOI: 10.1021/ef060507g

[14] S. Furuta, H. Matsuhashi, K. Arata, Biodiesel fuel production with solid amorphous-zirconia catalysis in fixed bed reactor. Biomass Bioenerg. 30, (2006) 870-873.

DOI: 10.1016/j.biombioe.2005.10.010

[15] E. Lotero, T. Liu, D.E. Lopez, K. Suwannakarn, D.A. Bruce, Jr J.G. Goodwin, Synthesis of biodiesel via acid catalysis. Ind. Eng. Chem. Res. 44, (2005) 5353-5363.

DOI: 10.1021/ie049157g

[16] H. Fukuda, A. Kondo, H. Noda, Biodiesel fuel production by transesterification of oils. J. Biosci. Bioeng. 92, (2001) 405-416.

DOI: 10.1016/s1389-1723(01)80288-7

[17] S.V. Ghadge, H. Raheman, Biodiesel production from mahua (Madhuca indica) oil having high free fatty acids. Biomass Bioenerg. 28, (2005) 601-605.

DOI: 10.1016/j.biombioe.2004.11.009

[18] N. Azcan, A. Danisman, Alkali catalyzed transesterification of cottonseed oil by microwave irradiation. Fuel 86, (2007) 2639-2644.

DOI: 10.1016/j.fuel.2007.05.021

[19] N. Azcan, A. Danisman, Microwave assisted transesterification of rapeseed oil. Fuel 87, (2008) 1781-1788.

DOI: 10.1016/j.fuel.2007.12.004

[20] J. Hernando, P. Leton, M.P. Matia, J.L. Novella, J. and Alvarez-Builla, Biodiesel and FAME synthesis assisted by microwaves: homogeneous batch and flow processes. Fuel. 86, (2007) 1641-1644.

DOI: 10.1016/j.fuel.2006.11.003

[21] J.M. Encinar, J.F. Gonzalez, J.J. Rodrıguez, A. Tejedor, Biodiesel fuels from vegetable oils: transesterification of Cynara cardunculus L. oils with ethanol. Energy Fuels. 16, (2002) 443-450.

DOI: 10.1021/ef010174h

[22] D.G.B. Boocock, S.K. Konar, H. Sidi, Phase diagrams for oil/methanol/ether mixtures. J. Am. Oil Chem. Soc. 73, (1996a) 1247-1251.

DOI: 10.1007/bf02525453

[23] D.G.B. Boocock, S.K. Konar, V. Mao, H. Sidi, Fast one-phase oil-rich processes for the preparation of vegetable oil methyl esters. Biomass Bioenerg. 11, (1996b) 43–50.

DOI: 10.1016/0961-9534(95)00111-5
