Research on Modeling and Ratio Control Based on Axial Displacement Feedback for CVT

Abstract:

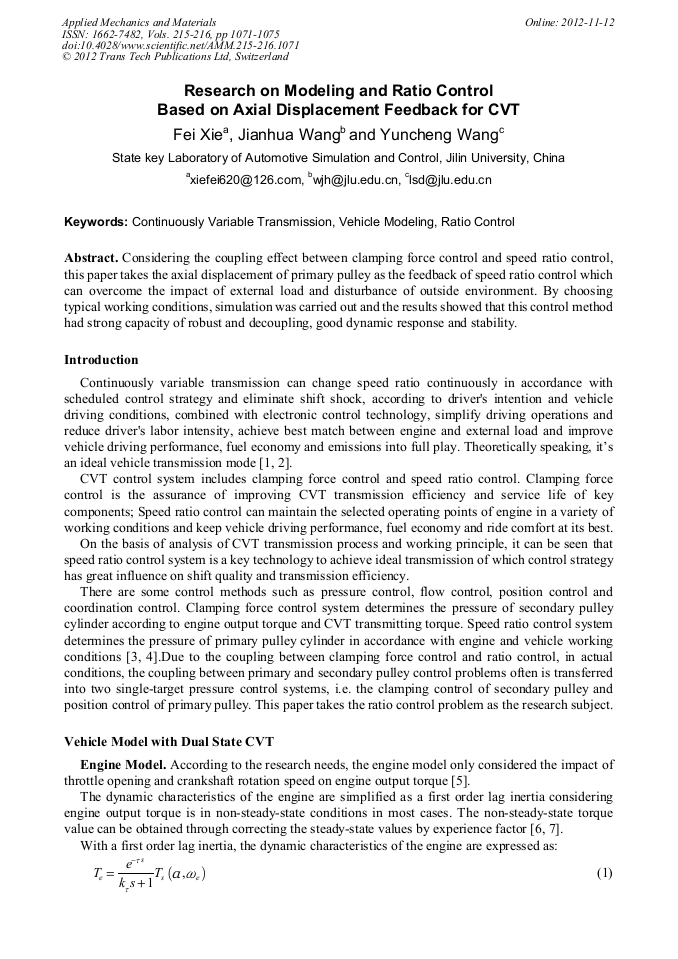

Considering the coupling effect between clamping force control and speed ratio control, this paper takes the axial displacement of primary pulley as the feedback of speed ratio control which can overcome the impact of external load and disturbance of outside environment. By choosing typical working conditions, simulation was carried out and the results showed that this control method had strong capacity of robust and decoupling, good dynamic response and stability.
