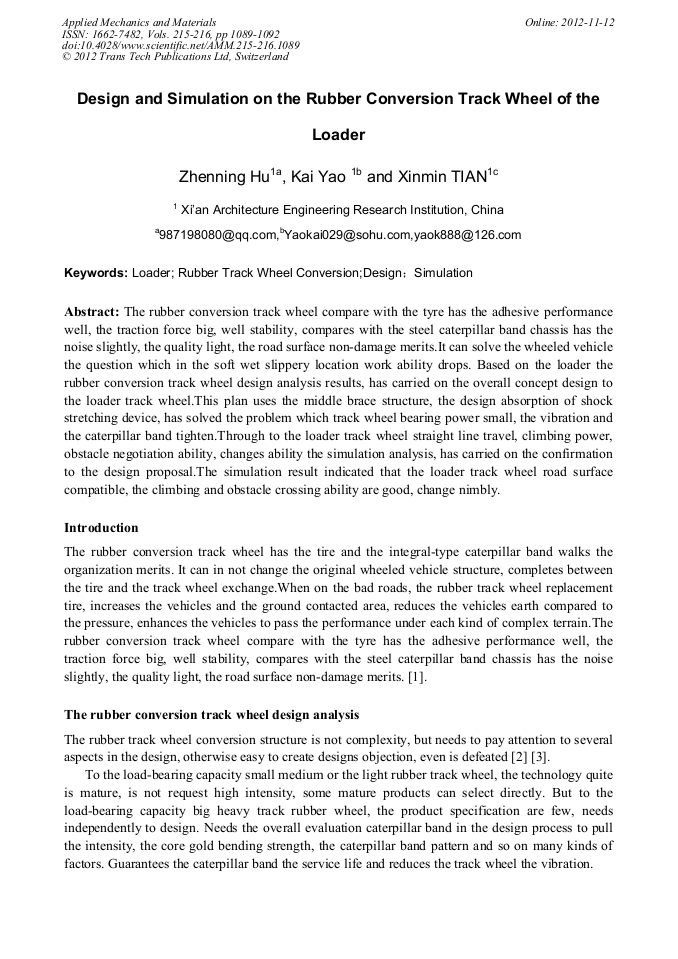

Design and Simulation on the Rubber Conversion Track Wheel of the Loader

Abstract:

The rubber conversion track wheel compare with the tyre has the adhesive performance well, the traction force big, well stability, compares with the steel caterpillar band chassis has the noise slightly, the quality light, the road surface non-damage merits.It can solve the wheeled vehicle the question which in the soft wet slippery location work ability drops. Based on the loader the rubber conversion track wheel design analysis results, has carried on the overall concept design to the loader track wheel.This plan uses the middle brace structure, the design absorption of shock stretching device, has solved the problem which track wheel bearing power small, the vibration and the caterpillar band tighten.Through to the loader track wheel straight line travel, climbing power, obstacle negotiation ability, changes ability the simulation analysis, has carried on the confirmation to the design proposal.The simulation result indicated that the loader track wheel road surface compatible, the climbing and obstacle crossing ability are good, change nimbly.

• Periodical: Applied Mechanics and Materials (Volumes 215-216)
• Pages: 1089-1092
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.215-216.1089
• Online since: November 2012
• Authors: Zhen Ning Hu, Kai Yao, Xin Min Tian
• Keywords: Design, Loader, Rubber Track Wheel Conversion, Simulation

References

[1] HOU Zhongming, YAO Kai, WANG Shengjun. Development and Application of Rubber track wheel conversion.China Rubber Industry,Dec.2009.Vol.56.No12:764-767.

[2] Yang Lihao, Wang Shengjun Wang Youjun. Development innovation of machinery electrical products,mar.2011.Vol.24.No.2.:80-82.

[3] Wang Yongfang and Fu Delian. A kind of swing thrust wheel triangular pedrail system introduction. EGP, 2009 , 19( 2) : 83-85.
