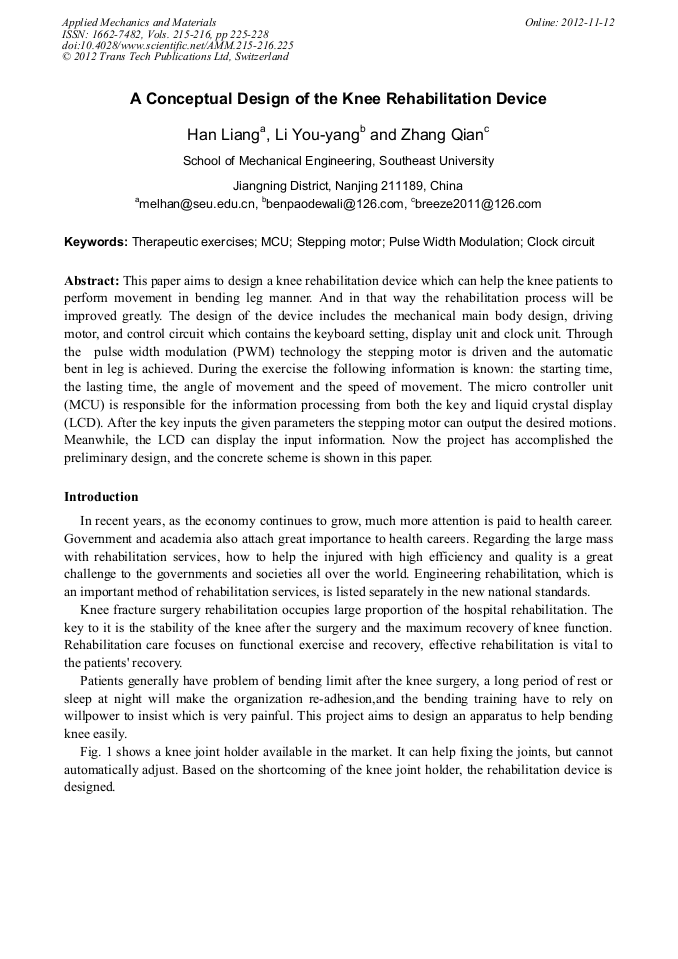

A Conceptual Design of the Knee Rehabilitation Device

Abstract:

This paper aims to design a knee rehabilitation device which can help the knee patients to perform movement in bending leg manner. And in that way the rehabilitation process will be improved greatly. The design of the device includes the mechanical main body design, driving motor, and control circuit which contains the keyboard setting, display unit and clock unit. Through the pulse width modulation (PWM) technology the stepping motor is driven and the automatic bent in leg is achieved. During the exercise the following information is known: the starting time, the lasting time, the angle of movement and the speed of movement. The micro controller unit (MCU) is responsible for the information processing from both the key and liquid crystal display (LCD). After the key inputs the given parameters the stepping motor can output the desired motions. Meanwhile, the LCD can display the input information. Now the project has accomplished the preliminary design, and the concrete scheme is shown in this paper.

• Periodical: Applied Mechanics and Materials (Volumes 215-216)
• Pages: 225-228
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.215-216.225
• Online since: November 2012
• Authors: Liang Han*, You Yang Li, Qian Zhang
• Keywords: Clock Circuit, Micro Controller Unit (MCU), Pulse Width Modulation (PWM), Stepping Motor, Therapeutic Exercises

References

[1] Amy Henderson, Virtual Reality in Stroke Rehabilitation: A Systematic Review of its Effectiveness for Upper Limb Motor Recovery [J], Topics in Stroke Rehabilitation, 2007,14 (2): 52-61.

DOI: 10.1310/tsr1402-52

[2] Qin Xiao-yong, Application of rehabilitation equipment in functional rehabilitation of hemiplegia [J], Chinese Journal of Tissue Engineering Research, 2001, 15 (48) : 9088-9092.

[3] Wang Rui, A fan speed system controlled by stepping motor based on AT89S52 [J], Journal of Yanan College of Education, 2012, 26 (1) : 102-104.

[4] Wu Dao-ming, Data sampling and control system based on SCM [J], Journal of Chemical Technology, 2006,(3)：26-33.

[5] Lu Guan-hua, A design of dancing robot based on the SCM [J]. Proceedings of vocational college, 2009, (2)：11-13.

[6] Zhang Jin, A study of stepping motor control based on AT89S52 SCM [J], Journal of Changzhou College of Education, 2008,(2)：73-75.

[7] Zeng Xin-yan, A design of solar energy intelligence vehicle based on SCM [J], Remote Control,2012，33(1)：69-72.

[8] Mei Li-feng, Wang Yan-Qiu, SCM elements and interface art [M], BeiJing:Tsinghua University Press, 2009.

[9] Wang Xiao-ming, The SCM control motors [M], BeiJing:The aviation spaceflight college book concern of BeiJing, 2008.

[10] Cong Shuang, Li Ze-xiang, Practical motion control technology [M], BeiJing:Publishing House of Electronics Industry, 2006.
