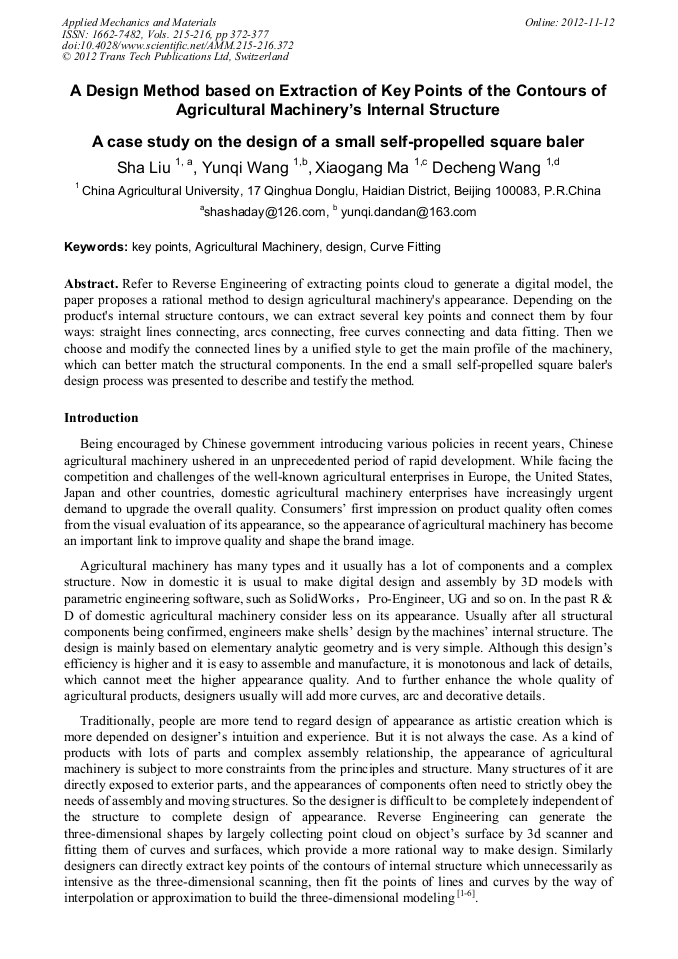

A Design Method Based on Extraction of Key Points of the Contours of Agricultural Machinery’s Internal Structure: A Case Study on the Design of a Small Self-Propelled Square Baler

Abstract:

Refer to Reverse Engineering of extracting points cloud to generate a digital model, the paper proposes a rational method to design agricultural machinery's appearance. Depending on the product's internal structure contours, we can extract several key points and connect them by four ways: straight lines connecting, arcs connecting, free curves connecting and data fitting. Then we choose and modify the connected lines by a unified style to get the main profile of the machinery, which can better match the structural components. In the end a small self-propelled square baler's design process was presented to describe and testify the method.

• Periodical: Applied Mechanics and Materials (Volumes 215-216)
• Pages: 372-377
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.215-216.372
• Online since: November 2012
• Authors: Sha Liu, Yun Qi Wang, Xiao Gang Ma, De Cheng Wang
• Keywords: Agricultural Machinery, Curve Fitting, Design, Key Point

References

[1] Herbert Edelsbrunner, Three-Dimensional Alpha Shapes[J], ACM Transections on graphics, Vol.13 No.1 (1994).

[2] Li Jiang Xiong, Research on CAD Modeling Techniques of Complex Surface by Reverse Engineering[D], Zhe Jiang University(1998), in Chinese.

[3] Zhang Ming Jun，Study on Three-dimensional Reconstruction base on Scattered Points[D], University of Science and Technology of China(2007) ,in Chinese.

[4] J. A. Gregory, Shape preserving spline interpolation, Computer-Aided Design, Vol.1 (1986)

[5] D. McLain, Drawing contours from arbitrary data pints, Computer Journal(1974).

[6] Wang Jin He，An Algorithm for the Extraction of Determinant Contour Points of Lines in Scanner Drawings, Journal of Image and Graphics，Vol.6(J)，No.7,(2001), in Chinese.

[7] Xu Hong，Research on Detection of Key Points on the Contour Curve [D],Southeast University(2009), in Chinese.

[8] Farin G., NURBS curves and sufaces,Projective geometry to practical use. MA, USA( 1994).

[9] Rhinoceros 4.0 help

[10] Lou Shun Tian, MATLAB 7.x Programming Language, Xi'an University of Electronic Science and Technology Publishing House(2006), p.194, in Chinese.

[11] Song Ye, etc.，MATLAB Numerical Analysis and Application，Mechanical Industry Press(2009), in Chinese.

[12] Yang Shi Kun, Su Zheng Fan, Forage machinery and equipment, China Agriculture Press( 2009), p.239, in Chinese.

[13] Yang Xiao Jun, Yang Xing Wei, Shape Classification Using Contour Critical Point Sets, Journal of Nanjing Universitu(Natural Sciences),Vol.46,No.1(2010), in Chinese.
