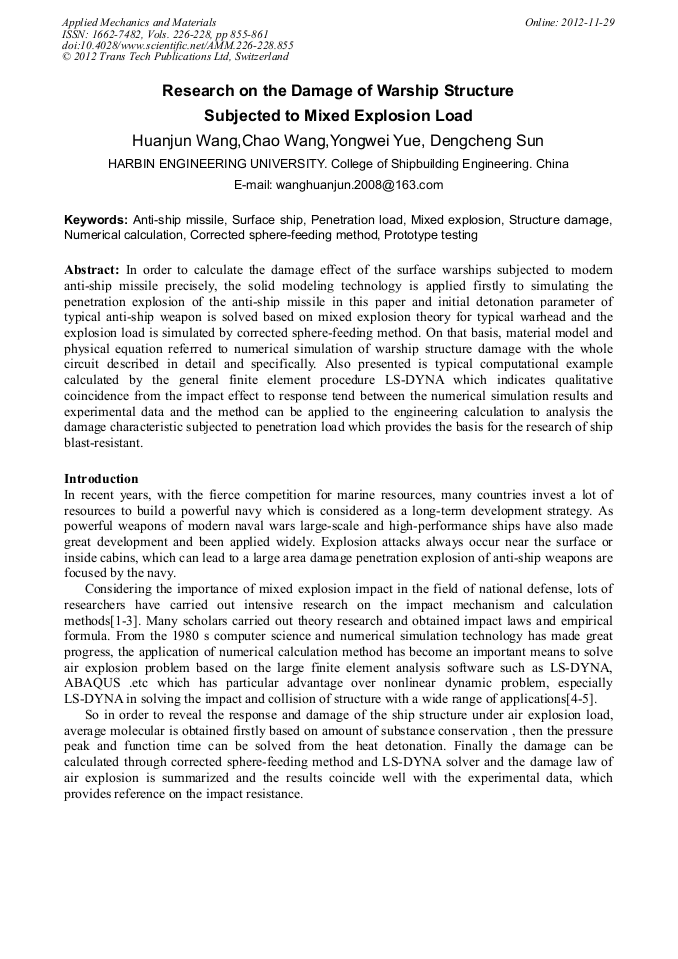

Research on the Damage of Warship Structure Subjected to Mixed Explosion Load

Abstract:

In order to calculate the damage effect of the surface warships subjected to modern anti-ship missile precisely, the solid modeling technology is applied firstly to simulating the penetration explosion of the anti-ship missile in this paper and initial detonation parameter of typical anti-ship weapon is solved based on mixed explosion theory for typical warhead and the explosion load is simulated by corrected sphere-feeding method. On that basis, material model and physical equation referred to numerical simulation of warship structure damage with the whole circuit described in detail and specifically. Also presented is typical computational example calculated by the general finite element procedure LS-DYNA which indicates qualitative coincidence from the impact effect to response tend between the numerical simulation results and experimental data and the method can be applied to the engineering calculation to analysis the damage characteristic subjected to penetration load which provides the basis for the research of ship blast-resistant.

• Periodical: Applied Mechanics and Materials (Volumes 226-228)
• Pages: 855-861
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.226-228.855
• Online since: November 2012
• Authors: Huan Jun Wang, Chao Wang, Yong Wei Yue, Deng Cheng Sun
• Keywords: Anti-Ship Missile, Corrected Sphere-Feeding Method, Mixed Explosion, Numerical Calculation, Penetration Load, Prototype Testing, Structure Damage, Surface Ship

References

[1] Brode H. L: The Physics of Fluids, Vol. 43 (1959) No. 2, p.5.

[2] X. Zhu, X.F. Bai and Z.H. Zhang: Shipbuilding of China, Vol. 45 (2004) No. 2, p.46 (In Chinese).

[3] Bort R L: Transaction SNAME, Vol. 38 (1962) No. 2, p.70.

[4] D.H. Xu, S. Wang and S.Q. Wang: Jounal of Harbin Engineering University, Vol. 43 (2006) No. 1, p.53 (In Chinese).

[5] D. J, Qiao: Explosion and Shock Waves, Vol. 10 (1985) No. 5, p.4 (In Chinese).

[6] J. G, Ning: Explosion Mechanics and Impact Dynamics(National Defence Industry Press, Chinese 2010), p.13 (In Chinese).

[7] B. P, Zhang, Q. M, Zhang and F.L. HUANG: Detonation Physics(Weapon Industry Press, Chinese 2006), p.45 (In Chinese).

[8] F.Y. Wang and T.S. Liu: Damage Theory And Technology(Beijng Institute Of Technology Press, Chinese 2009), p.53 (In Chinese).

[9] X.L. Yao and X.D. Liu: Jounal of Harbin Engineering University, Vol. 27 (2006) No. 5, p.693 (In Chinese).

[10] LS-DYNA: Keyword User's Manual(Livermore Software Technology Press, California 2003), p.28.

[11] Hallquist J O: LS-DYNA Theoretical Manual(Livermore Software Technology Corporation Press, California 1998), p.78.

[12] L.H. Liang, Z.C. Wang and Z. Ju: Explosion and Shock Waves, Vol. 28 (2008) No. 5, p.415 (In Chinese).
