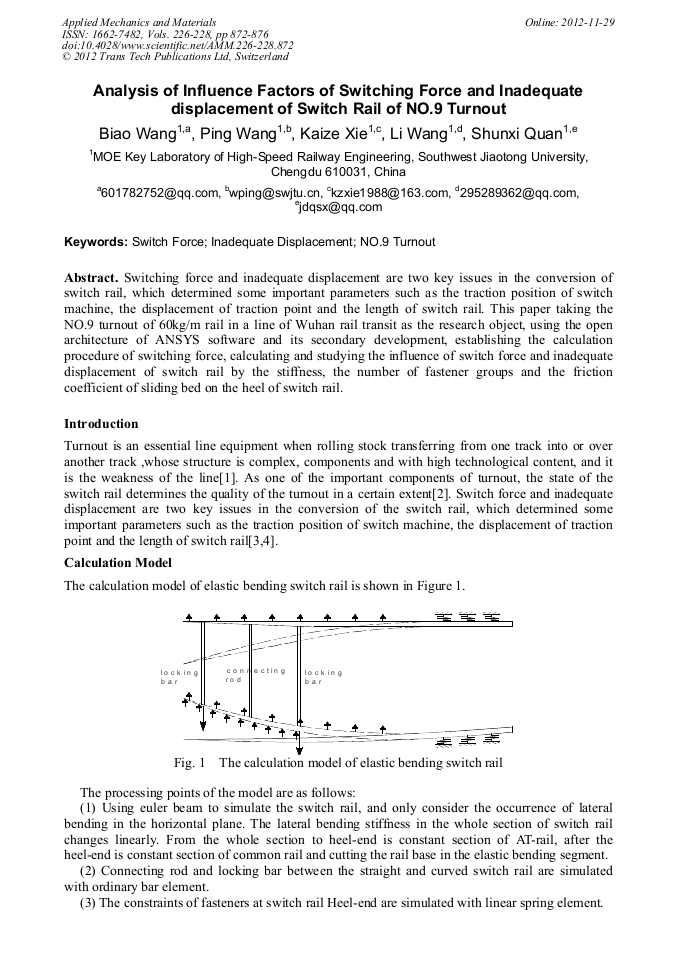

Analysis of Influence Factors of Switching Force and Inadequate Displacement of Switch Rail of NO.9 Turnout

Abstract:

Switching force and inadequate displacement are two key issues in the conversion of switch rail, which determined some important parameters such as the traction position of switch machine, the displacement of traction point and the length of switch rail. This paper taking the NO.9 turnout of 60kg/m rail in a line of Wuhan rail transit as the research object, using the open architecture of ANSYS software and its secondary development, establishing the calculation procedure of switching force, calculating and studying the influence of switch force and inadequate displacement of switch rail by the stiffness, the number of fastener groups and the friction coefficient of sliding bed on the heel of switch rail.

You might also be interested in these eBooks

Vibration, Structural Engineering and Measurement II

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 226-228)

Pages:

872-876

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.226-228.872

Citation:

Cite this paper

Online since:

November 2012

Authors:

Biao Wang, Ping Wang, Kai Ze Xie, Li Wang, Shun Xi Quan

Keywords:

Inadequate Displacement, NO.9 Turnout, Switch Force
