Position and Speed Detection of Synchronous Motor Rotor

Abstract:

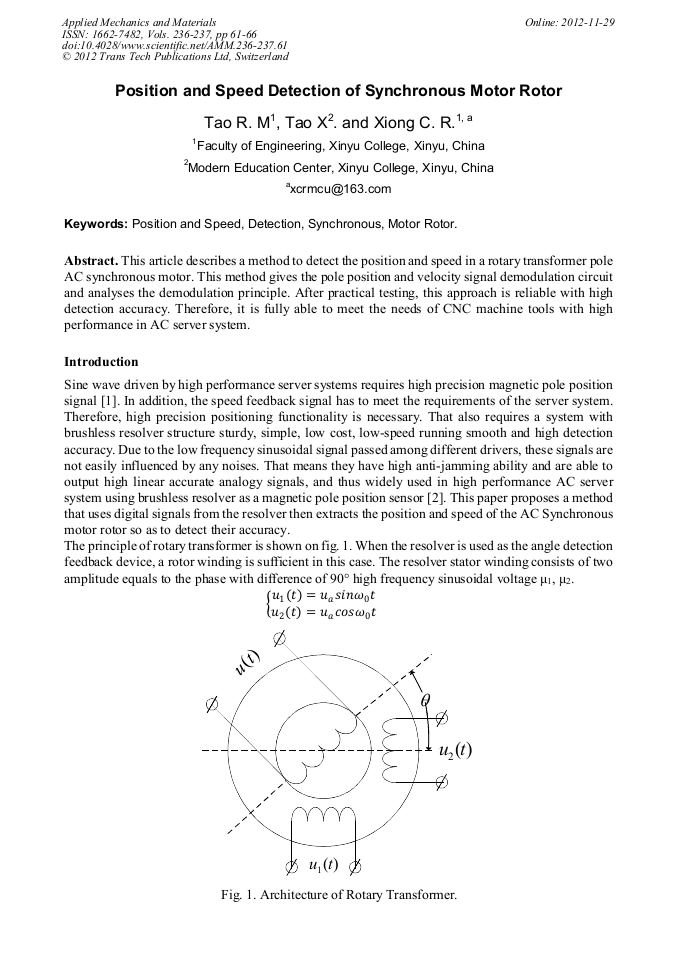

This article describes a method to detect the position and speed in a rotary transformer pole AC synchronous motor. This method gives the pole position and velocity signal demodulation circuit and analyses the demodulation principle. After practical testing, this approach is reliable with high detection accuracy. Therefore, it is fully able to meet the needs of CNC machine tools with high performance in AC server system.

• Periodical: Applied Mechanics and Materials (Volumes 236-237)
• Pages: 61-66
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.236-237.61
• Online since: November 2012
• Authors: R.M. Tao, X. Tao, C.R. Xiong
• Keywords: Detection, Motor Rotor, Position, Speed, Synchronous
