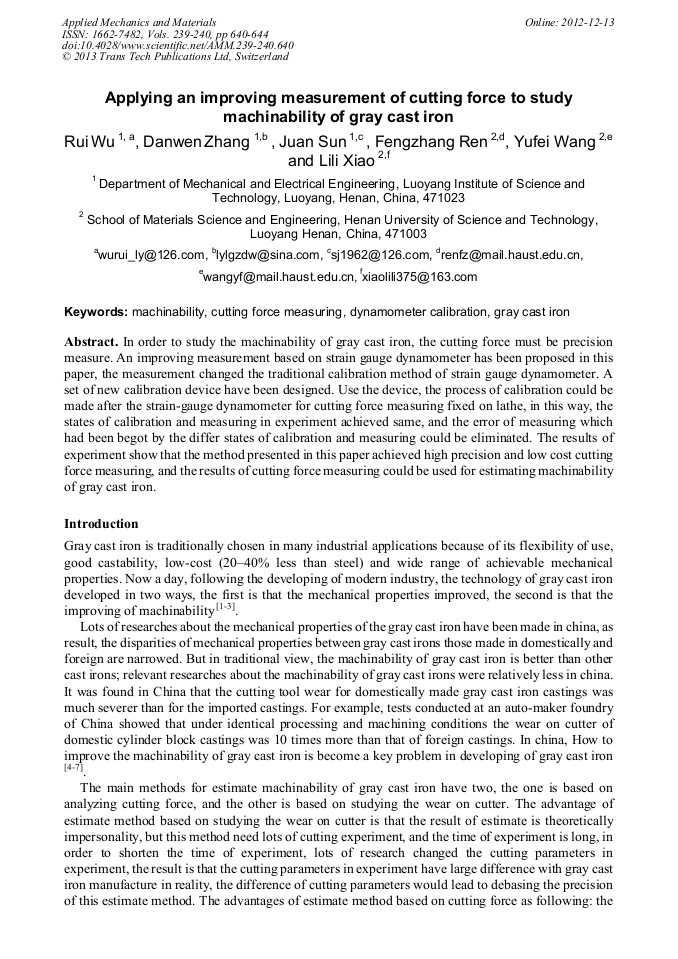

Applying an Improving Measurement of Cutting Force to Study Machinability of Gray Cast Iron

Abstract:

In order to study the machinability of gray cast iron, the cutting force must be precision measure. An improving measurement based on strain gauge dynamometer has been proposed in this paper, the measurement changed the traditional calibration method of strain gauge dynamometer. A set of new calibration device have been designed. Use the device, the process of calibration could be made after the strain-gauge dynamometer for cutting force measuring fixed on lathe, in this way, the states of calibration and measuring in experiment achieved same, and the error of measuring which had been begot by the differ states of calibration and measuring could be eliminated. The results of experiment show that the method presented in this paper achieved high precision and low cost cutting force measuring, and the results of cutting force measuring could be used for estimating machinability of gray cast iron.

• Periodical: Applied Mechanics and Materials (Volumes 239-240)
• Pages: 640-644
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.239-240.640
• Online since: December 2012
• Authors: Rui Wu, Dan Wen Zhang, Juan Sun, Feng Zhang Ren, Yu Fei Wang, Li Li Xiao
• Keywords: Cutting Force Measuring, Dynamometer Calibration, Gray Cast Iron, Machinability

References

[1] D. Bartocha, K. Janerka, J. Suchon, J. Mater. Process, Technol. Vol. 162–163 (2005), p.465–470.

[2] W. Xu, M. Ferry, Y. Wang, Mater. Sci. Eng. A . Vol. 390 (1–2) (2005), p.326–333.

[3] J. Hemanth, K.V.S. Rao, J. Mater. Eng. Perform. Vol. (4) (1999) , p.417–423.

[4] S. Hua-qin. Lasted Develepment in Production and Research works of Gray iron in China. AFS Trans. Vol. 99(1991), pp.363-367.

[5] ZI Shu, WU Guo-wei, ZHANG Guo-chen, BAI Bo. Research on a New Type of Inoculant of High Strength Gray Iron. Foundry Technology. Vol. 28(6)(2007), pp.745-750.

[6] Cai qizhou, Wei Bokang. Recent development of ductile cast iron production technology in China. China Foundry. Vol. 5(2)(2008), pp.82-91.

[7] ZENG Da ben, TANG Jing lin A Review and Forecast on China's Iron Cast Technology, Foundry, Vol. 51(4)(2005), pp.196-200.

[8] Shen J. Study on the cutting character and the materials for cylinder block (master thesis). Harbin: Harbin Institute of Technology(2003, 6) (in Chinese).

[9] Ren Fengzhang, Li Fengjun, Liu Weiming, Ma Zhanhong, Tian Baohong. Effect of inoculating addition on machinability of gray cast iron. Journal of rare earths. Vol. 27(2)(2009), pp.294-299.

DOI: 10.1016/s1002-0721(08)60236-7

[10] Burke C M, Mared J. Machinability of gray cast iron of a drilling study. AFS Transactions. Vol. 106 (1999), pp.567-575.
