The High Speed Optoelectronic Isolator Design in Laser Radar

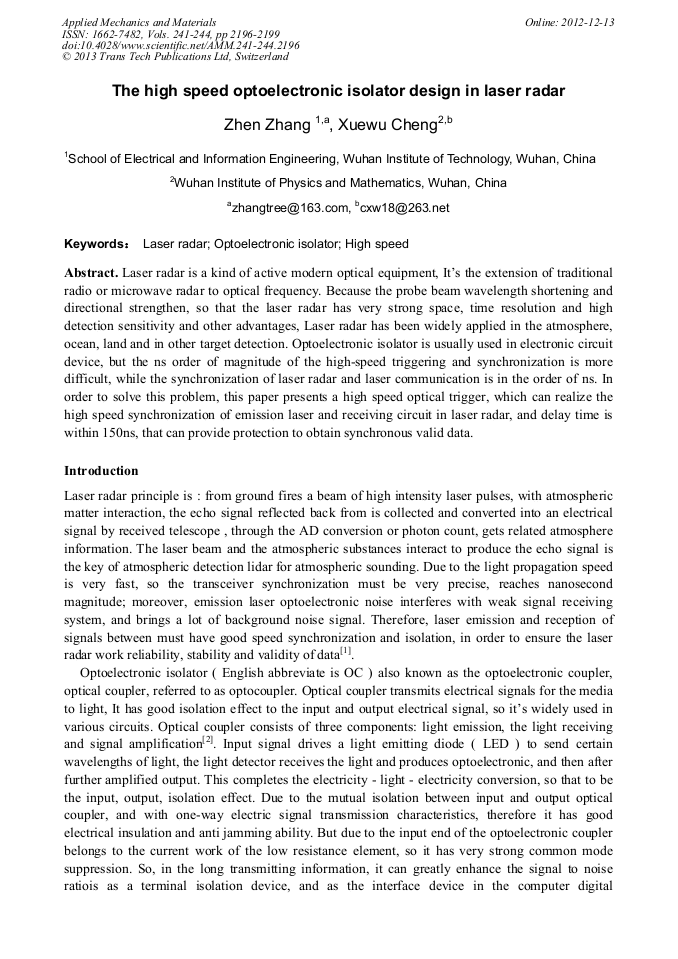

Article Preview

Abstract:

Laser radar is a kind of active modern optical equipment, It’s the extension of traditional radio or microwave radar to optical frequency. Because the probe beam wavelength shortening and directional strengthen, so that the laser radar has very strong space, time resolution and high detection sensitivity and other advantages, Laser radar has been widely applied in the atmosphere, ocean, land and in other target detection. Optoelectronic isolator is usually used in electronic circuit device, but the ns order of magnitude of the high-speed triggering and synchronization is more difficult, while the synchronization of laser radar and laser communication is in the order of ns. In order to solve this problem, this paper presents a high speed optical trigger, which can realize the high speed synchronization of emission laser and receiving circuit in laser radar, and delay time is within 150ns, that can provide protection to obtain synchronous valid data.

You might also be interested in these eBooks
Industrial Instrumentation and Control Systems View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 241-244)

Pages:

2196-2199

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.241-244.2196

Citation:

Cite this paper

Online since:

December 2012

Authors:

Zhen Zhang, Xue Wu Cheng

Keywords:

High-Speed, Laser Radar, Optoelectronic Isolator

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2013 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

References

[1] Yongjiang Dai In Chinese. The principle of lidar. National defence industry press.(2002)

Google Scholar

[2] Yongli Wang In Chinese. the working principle and the detection of optoelectronic coupler [J]. Appliance repair technology.2010. issue 8

Google Scholar

[3] Xuewu Cheng, Juan Song, Faquan Li et al In Chinese. The dual-wavelength high altitude detecting laser radar technology [J]. Chinese lasers.2006，33(5):601-606

Google Scholar

[4] Qihai Chang, Guotao Yang, Juan Song et al In Chinese. Laser radar observations of wuhan middle atmosphere temperature characteristics [J]. Atmospheric Science.2005, 29(2): 14-320

Google Scholar

[5] Yunxiang Shi In Chinese. High speed optical coupler design and Application [J]. Journal of Anhui University ( Natural science edition ) .1996. issue 1

Google Scholar
