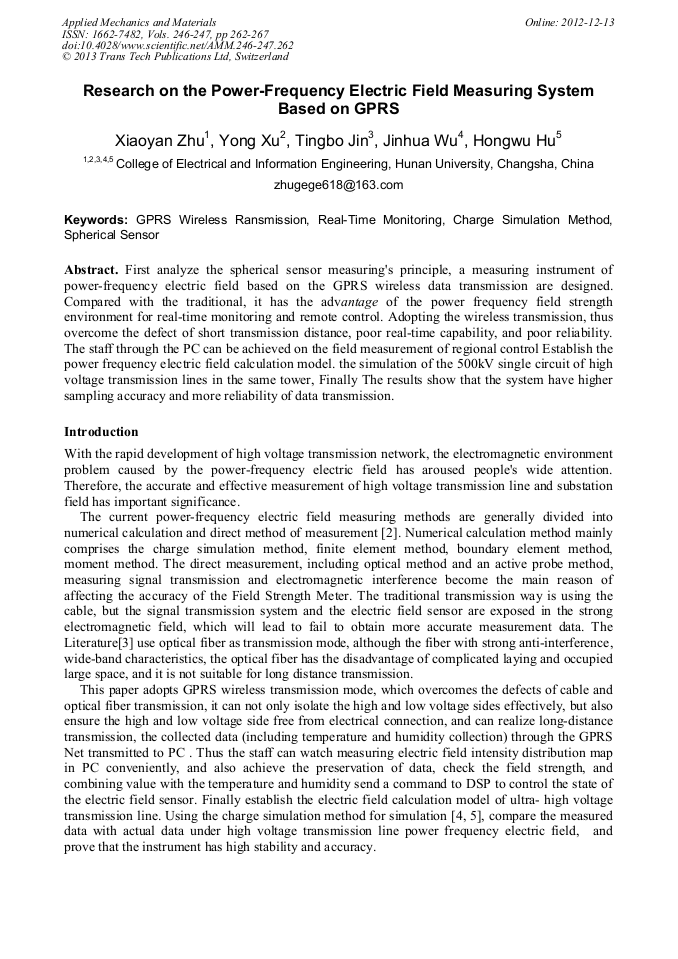

Research on the Power-Frequency Electric Field Measuring System Based on GPRS

Abstract:

First analyze the spherical sensor measuring's principle, a measuring instrument of power-frequency electric field based on the GPRS wireless data transmission are designed. Compared with the traditional, it has the advantage of the power frequency field strength environment for real-time monitoring and remote control. Adopting the wireless transmission, thus overcome the defect of short transmission distance, poor real-time capability, and poor reliability. The staff through the PC can be achieved on the field measurement of regional control Establish the power frequency electric field calculation model. the simulation of the 500kV single circuit of high voltage transmission lines in the same tower, Finally The results show that the system have higher sampling accuracy and more reliability of data transmission.

• Periodical: Applied Mechanics and Materials (Volumes 246-247)
• Pages: 262-267
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.246-247.262
• Online since: December 2012
• Authors: Xiao Yan Zhu, Yong Xu, Ting Bo Jin, Jin Hua Wu, Hong Wu Hu
• Keywords: Charge Simulation Method, GPRS Wireless Ransmission, Real-Time Monitoring, Spherical Sensor

References

[1] Li Rong, Jiang Zhongyong. The environmental impact of electromagnetic field under the high pressure transmission lines lower part space [J]. Journal of Northern Jiaotong University, 2002, 23(2): 118-122.

[2] Li Lizhi, The design of the electric field tester portable environment [D] The master's degree thesis of Xi'an university of electronic science and technology, 2008, 1.

[3] Li Qingquan, Liu Jian Li Yanming. The transient electric field spherical sensor based on the measurement of optical fiber[J]. Sensor technology, 2001. 21(3): 14-16.

[4] Xie Huichun, Jiangong Zhang. Wire height is calculated based on the charge simulation method on a 500kV transmission line across the houses [J]. Power System Technology. 2008, 40(1): 41- 43.

[5] Feng Yanyan, Yu Jihui. Overhead the work of ultra high pressure transmission line frequency electric field and its influence Journal of Chongqing University. 2004, 27(4): 10-14.

[6] Jiang Hong, Jiao Jinghui. Research on countermeasure for the over limitation of the power frequency electric field caused by extra-high voltage transmission[J]. High Voltage Engineering 2006, 32(10): 1-4.

[7] Mensah-Bonsa C, Femandz C U, Heydt. GT Application of the globle poisioning system to the measurement of overhead power transmission conductor sag[J]. IEEE Transactions on power Delivery 2000, 17(1): 273-278.

DOI: 10.1109/61.974218

[8] Zheng Wanxi, Huang Yuanqing, Zhang Xin et. al. Remote monitoring system based the GPRS communication technology [J]. Transducer and Microsystem Technologies, 2008, 27(2): 83-85, 92.
