Structural Design of Large Aperture Rectangular Mirror for Space Telescope

Abstract:

Structural design of large aperture mirror is one of the key technologies for space telescope development. To meet the requirements of high stiffness, strength and thermal dimensional stability, some factors such as support scheme, materials selection, lightweight design and flexible support design were taken into account. The three supports location of the mirror was determined according to the modal analytical solution. By adjusting the parameters of flexure hinge, influences of gravity, assembly stress and thermal stress on the mirror were reduced obviously. Finite element analysis (FEA) results indicate that the surface accuracy reach to rms10.2nm and 10.8nm under the gravity along optical axis direction and 5°C uniform temperature rise respectively, the fundamental frequency of the mirror component is 268Hz. Dynamics test shows that the first order natural frequency is 256Hz, which shows an error less than 5% compared to FEA results.

You might also be interested in these eBooks

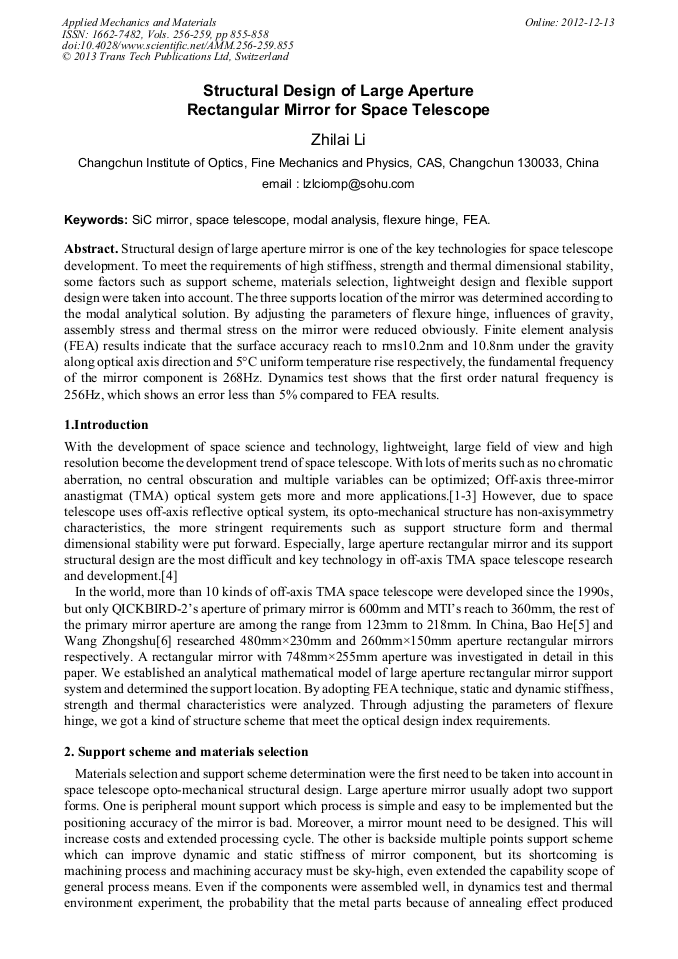

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 256-259)

Pages:

855-858

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.256-259.855

Citation:

Cite this paper

Online since:

December 2012

Authors:

Zhi Lai Li

Keywords:

Finite Element Analysis (FEA), Flexure Hinge, Modal Analysis, SiC Mirror, Space Telescope

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] T. Bret-Dibat; V. Albouys; J. Berthon. Test of a high resolution Three Mirrors Anastigmat Telescope, SPIE Vol.3870: 126-137 (1999).

DOI: 10.1117/12.373170

Google Scholar

[2] F. Gueguen; A. Bettès; Y. Toulemont. SPOT series camera improvement for the HRG, very high resolution instrument of SPOT 5, SPIE Vol.3737: 301-312 (1999).

DOI: 10.1117/12.360020

Google Scholar

[3] Zhang Keke; Ruan Ningjuan; Fu Danying. Analysis and Consideration of Development of Overseas Space off-axis TMA System Camera, Spacecraft Recovery & Remote Sensing, 29(3):63-70 (2008).

Google Scholar

[4] Ren Jianyue; Chen Changzheng; He Bin. Application of SiC and SiC/Al to TMA Optical Remote Sensor, Optics and Precision Engineering, 16(12): 2537-2543 (2008).

Google Scholar

[5] Bao He; Li Zhilai. Design of the strip SiC mirror supporting structure and lightweight, Optical technique, 34(4): 593-596 (2008).

Google Scholar

[6] Wang Zhongshu; Zhai Yan. Design of flexible support structure of refector in space remote sensor, Optics and Precision Engineering, 18(8):1833-1841 (2010).

Google Scholar

[7] Jay Schwartz; Andrea Arnesonb; Joseph Robichauda. Production of Extreme Ultraviolet (EUV) Quality Silicon Carbide (SiC) Aspheric Optics, SPIE Vol.7018: 1-12 (2008).

DOI: 10.1117/12.789731

Google Scholar
