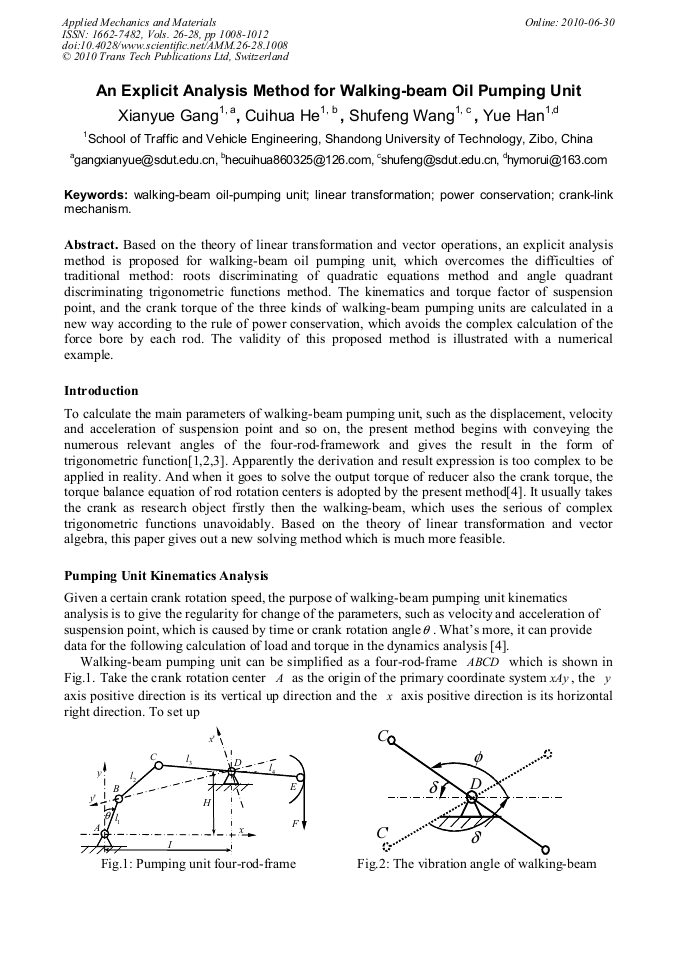

An Explicit Analysis Method for Walking-Beam Oil Pumping Unit

Abstract:

Based on the theory of linear transformation and vector operations, an explicit analysis method is proposed for walking-beam oil pumping unit, which overcomes the difficulties of traditional method: roots discriminating of quadratic equations method and angle quadrant discriminating trigonometric functions method. The kinematics and torque factor of suspension point, and the crank torque of the three kinds of walking-beam pumping units are calculated in a new way according to the rule of power conservation, which avoids the complex calculation of the force bore by each rod. The validity of this proposed method is illustrated with a numerical example.

• Periodical: Applied Mechanics and Materials (Volumes 26-28)
• Pages: 1008-1012
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.26-28.1008
• Online since: June 2010
• Authors: Xian Yue Gang, Cui Hua He, Shu Feng Wang, Yue Han
• Keywords: Crank-Link Mechanism, Linear Transformation, Power Conservation, Walking-Beam Oil-Pumping Unit

References

[1] Wang Changbin. The calculation of parameters of pumping unit suspension point, Journal of Daqing Petroleum Institute, 1998, 3.

[2] Lian Ying. Kinematics and dynamic analysis and optimal design of double horse head pumping unit. !anjing University of Science And Technology [Master Dissertation], (2007).

[3] Liu Ying. Research the optimal design of using conventional beam pumping unit. Daqing Petroleum Institute [Master Dissertation], (2007).

[4] Li Renxing. The simulation of kinematics and dynamics of beam-pumping unit and its design of optimization. Xi'an University of Technology [Master Dissertation], (2005).

[5] Zhang Hongyan. Dynamics analysis of beam pumping unit and sucker rod system. Daqing Petroleum Institute [Master Dissertation], (2005).
