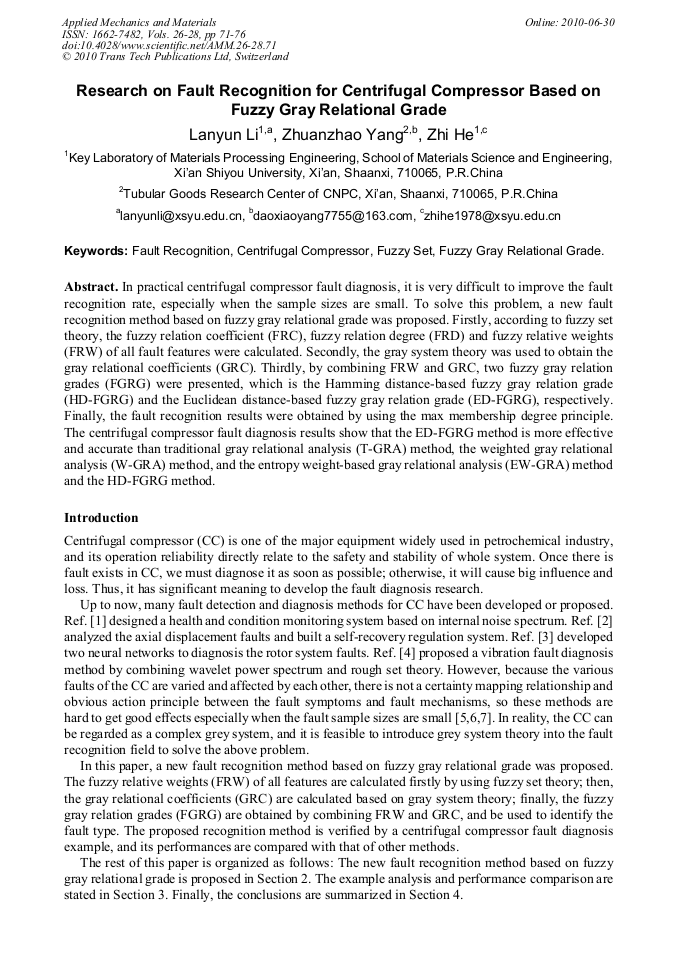

Research on Fault Recognition for Centrifugal Compressor Based on Fuzzy Gray Relational Grade

Abstract:

In practical centrifugal compressor fault diagnosis, it is very difficult to improve the fault recognition rate, especially when the sample sizes are small. To solve this problem, a new fault recognition method based on fuzzy gray relational grade was proposed. Firstly, according to fuzzy set theory, the fuzzy relation coefficient (FRC), fuzzy relation degree (FRD) and fuzzy relative weights (FRW) of all fault features were calculated. Secondly, the gray system theory was used to obtain the gray relational coefficients (GRC). Thirdly, by combining FRW and GRC, two fuzzy gray relation grades (FGRG) were presented, which is the Hamming distance-based fuzzy gray relation grade (HD-FGRG) and the Euclidean distance-based fuzzy gray relation grade (ED-FGRG), respectively. Finally, the fault recognition results were obtained by using the max membership degree principle. The centrifugal compressor fault diagnosis results show that the ED-FGRG method is more effective and accurate than traditional gray relational analysis (T-GRA) method, the weighted gray relational analysis (W-GRA) method, and the entropy weight-based gray relational analysis (EW-GRA) method and the HD-FGRG method.

• Periodical: Applied Mechanics and Materials (Volumes 26-28)
• Pages: 71-76
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.26-28.71
• Online since: June 2010
• Authors: Lan Yun Li, Zhuan Zhao Yang, Zhi He
• Keywords: Centrifugal Compressor, Fault Recognition, Fuzzy Gray Relational Grade, Fuzzy Set

References

[1] G. Petela, R. Motriuk, M. Betz, V. Stokung: Centrifugal Compressor Health Diagnostics Based on Internal Noise Spectrum. Proceedings of the 2002 International Conference on Noise and Vibration Engineering, (2002), pp.1507-1518.

[2] Y. Li, W. M. Wang, J. J. Gao, S. X. Li: An Experimental Study on the Self-recovery Regulation System of Centrifugal Compressor Axial Displacement Fault. WSEAS Transactions on Systems, Vol. 8, No. 11 (2009), pp.1217-1227.

[3] P. Wang. The Research of Intelligent Methods on Fault Diagnosis for Centrifugal compressor. Daqing Pettoleum Institute, (2006), pp.21-37.

[4] Q. S. Zeng, X. J. Wang: Fault Diagnosis of Centrifugal Compressor Vibration Based on Wavelet Power Spectrum and Rough Set Theory. Journal of Central South University (Science and Technology), Vol. 40, No. 3 (2009), pp.706-710.

[5] B. Li, P. L. Zhang, J. P. Fu, Z. Cao: FGRD Recognition Method for Wear Mode Of I.C. Engines. Chinese Internal Combustion Engine Engineering, Vol. 27, No. 2 (2006), pp.71-74.

[6] S. F. Ding, F. X. Jin, J. Wang, Y. F. Shi: Pattern Recognition with Fuzzy-Gray Approach. Journal of Computer-aided Design & Computer Graphics. Vol. 16, No. 3 (2004), pp.275-278.

[7] G. Yang: Research on Synthesized Fault Diagnosis Technique Based on Fuzzy Gray Relational Neural Network. Journal of Wuhan University of Technology, Vol. 32, No. 5 (2008), pp.861-864.
