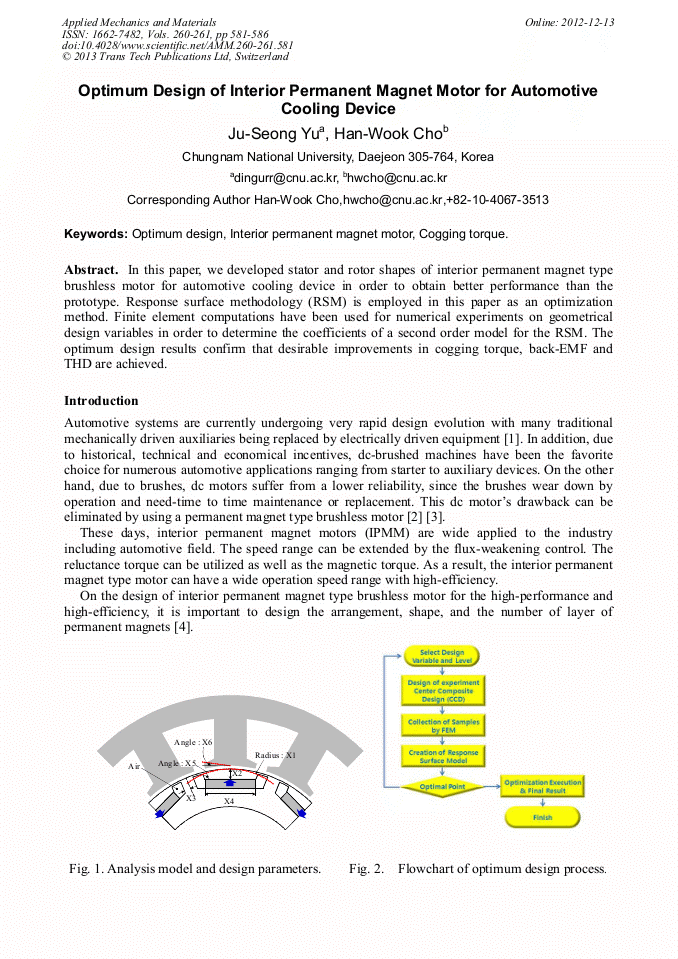

Optimum Design of Interior Permanent Magnet Motor for Automotive Cooling Device

Abstract:

In this paper, we developed stator and rotor shapes of interior permanent magnet type brushless motor for automotive cooling device in order to obtain better performance than the prototype. Response surface methodology (RSM) is employed in this paper as an optimization method. Finite element computations have been used for numerical experiments on geometrical design variables in order to determine the coefficients of a second order model for the RSM. The optimum design results confirm that desirable improvements in cogging torque, back-EMF and THD are achieved.

• Periodical: Applied Mechanics and Materials (Volumes 260-261)
• Pages: 581-586
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.260-261.581
• Online since: December 2012
• Authors: Ju Seong Yu, Han Wook Cho
• Keywords: Cogging Torque, Interior Permanent Magnet Motor, Optimum Design

References

[1] Charles Pollock, Helen Pollock, Richard Barron, Jeff R. Coles, David Moule, Andrew Court, and Richard Sutton, Flux-switching motors for automotive applications, IEEE Trans. Indust. Applicat., vol. 42, no. 5, pp.1177-1184, Sept. /Oct. (2006).

DOI: 10.1109/tia.2006.880842

[2] A. Emadi, Handbook of automotive power electronics and motor drives, CRC Press, (2005).

[3] Wonbok Hong, Wootaik Lee, Byoung-Kuk Lee, Dynamic simulation of brushless dc motor drives considering phase commutation for automotive applications, IEEE Int. Electric Machines & Drives Conference(IEMDC) 2007, vol. 2, pp.1377-1383, (2007).

DOI: 10.1109/iemdc.2007.383630

[4] Ki-Chan Kim, Kwangsoo Kim, Hee-Jun Kim, and Ju-Lee, Demagnetization analysis of permanent magnets according to rotor types of interior permanent magnet synchronous motor, IEEE Trans. Magn., vol. 45, no. 6, pp.2799-2802, June (2009).

DOI: 10.1109/tmag.2009.2018661

[5] Young-kyun Kim, Jung-moo Seo, Seung-bin Lim, Se-hyun Rhyu, In-sung Jung, Jin Hur, Optimal design for cogging torque reduction in BLDC motor using the response surface method, Telecommunications Energy Conference(INTELEC) 2009, pp.1-4, (2009).

DOI: 10.1109/intlec.2009.5351998

[6] Hany M. Hasanien, Ahmed S. Abd-Rabou, Sohier M. Sakr, Design optimization of transverse flux linear motor weight reduction and performance improvement using response surface methodology and genetic algorithms, IEEE Trans. Energy Conv., vol. 25, no. 3, Sept. (2010).

DOI: 10.1109/tec.2010.2050591

[7] Kyu-Yun Hwang, Sang-Bong Rhee, Byoung-Yull Yang, and Byung-Il Kwon, Rotor pole design in spoke-type brushless DC motor by response surface method, IEEE Trans. Magn., vol. 43, no. 4, April (2007).

DOI: 10.1109/cefc-06.2006.1633215

[8] Ki-Chan Kim, Kwangsoo Kim, Hee-Jun Kim, and Ju-Lee, Demagnetization analysis of permanent magnets according to rotor types of interior permanent magnet synchronous motor, IEEE Trans. Magn., vol. 45, no. 6, pp.2799-2802, June (2009).

DOI: 10.1109/tmag.2009.2018661
