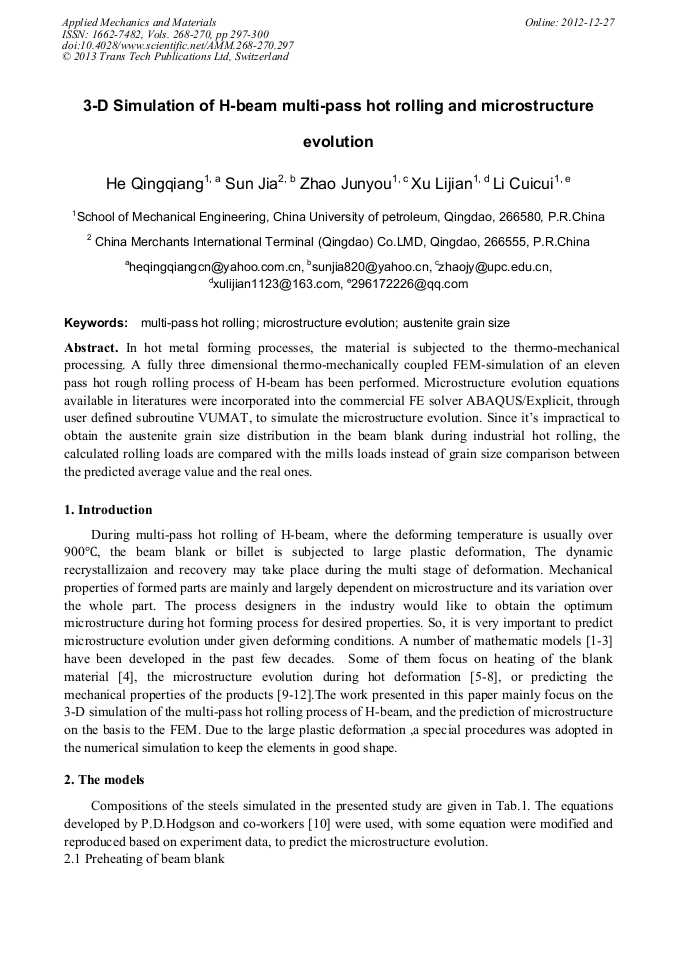

3-D Simulation of H-Beam Multi-Pass Hot Rolling and Microstructure Evolution

Abstract:

In hot metal forming processes, the material is subjected to the thermo-mechanical processing. A fully three dimensional thermo-mechanically coupled FEM-simulation of an eleven pass hot rough rolling process of H-beam has been performed. Microstructure evolution equations available in literatures were incorporated into the commercial FE solver ABAQUS/Explicit, through user defined subroutine VUMAT, to simulate the microstructure evolution. Since it’s impractical to obtain the austenite grain size distribution in the beam blank during industrial hot rolling, the calculated rolling loads are compared with the mills loads instead of grain size comparison between the predicted average value and the real ones.

• Periodical: Applied Mechanics and Materials (Volumes 268-270)
• Pages: 297-300
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.268-270.297
• Online since: December 2012
• Authors: Qing Qiang He, Jia Sun, Jun You Zhao, Li Jian Xu, Cui Cui Li
• Keywords: Austenite Grain Size, Microstructure Evolution, Multi-Pass Hot Rolling

References

[1] T. M. Maccagno. J. J. Jonas, P. D. Hodgson. Spreadsheet Modeling of Grain Size Evolution during Rod Rolling [J], ISIJ International, 1996, 36 (6): 720-728.

DOI: 10.2355/isijinternational.36.720

[2] F. Siciliano, K. Minami, T. M. Maccagno, J. J. Jonas. Mathematical Modeling of Mean Flow Stress, Fractional Softening and Grain Size during the Hot Strip Rolling of C-Mn-Steels[J], ISIJ International, 1996, 36(12): 1500-1506.

DOI: 10.2355/isijinternational.36.1500

[3] K.P. Rao, Y.K.D.V. Prasad, E.B. Hawbolt. Hot Deformation Studies on Low-Carbon Steel: Part 1-Flow Curves and the Constitutive Relationship [J]. Journal of Materials Processing Technology, 1996, 56:897-907.

DOI: 10.1016/0924-0136(95)01902-2

[4] K.P. Rao, Y.K.D.V. Prasad, E.B. Hawbolt. Hot Deformation Studies on Low-Carbon Steel: Part 2-An Algorithm for the Flow Stress Determination under Varying Process Conditions [J]. Journal of Materials Processing Technology, 1996, 56:908-917.

DOI: 10.1016/0924-0136(95)01903-0

[5] F. G. Caballero, C. Capdevila, C. García de andrés. Modeling of Kinetics of Austenite Formation in Steels with Different Initial Microstructures [J], ISIJ International, 2001, 41(10): 1093-1102.

DOI: 10.2355/isijinternational.41.1093

[6] J.M. Cabrera, J. Ponce, J.M. Prado. Modeling thermomechanical processing of austenite [J]. Journal of Materials Processing Technology, 2003, 143: 403-409.

DOI: 10.1016/s0924-0136(03)00441-2

[7] P.D. Hodgson. Microstructure modeling for property prediction and control [J]. Journal of Materials Processing Technology, 1996, 60:27-33.

[8] J. Lin, T.A. Dean. Modeling of microstructure evolution in hot forming using unified constitutive equations [J]. Journal of Materials Processing Technology, 2005, 167:354-362.

DOI: 10.1016/j.jmatprotec.2005.06.026

[9] Y. Liu, J. Lin. Modeling of micro-structural evolution in multi-pass hot rolling [J]. Journal of Materials Processing Technology, 2003, 144:723-728.

[10] N. Bontcheva, G. Petzov .Total simulation model of the thermo-mechanical process [J]. Shape rolling of steel rods Computational Materials Science, 2005, 34:377-388.

DOI: 10.1016/j.commatsci.2005.01.009

[11] M. Glowacki. The mathematical modeling of thermo-mechanical processing of steel during multi-pass shape rolling [J]. Journal of Materials Processing Technology, 2005, 168:336-343.

DOI: 10.1016/j.jmatprotec.2004.12.007

[12] He Qingqiang,Sun Jia,Yuan Baomin. Numerical Analysis of Multi-pass rough rolling Process of H-Beam[J].Journal of South China University of Technology(Natural Science Edition),2010,38(1):144-148.
