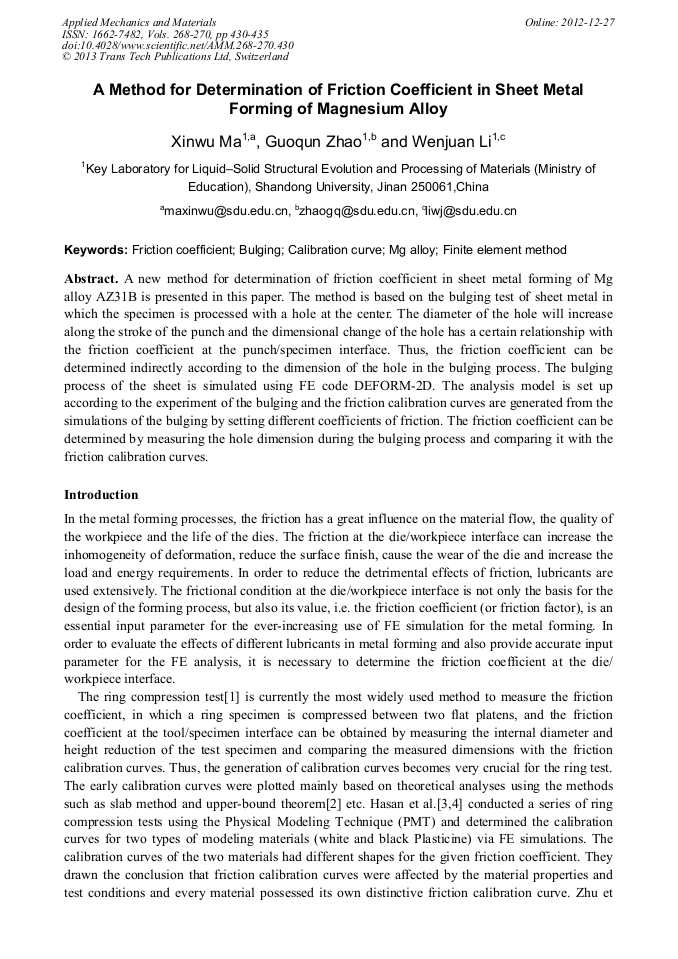

A Method for Determination of Friction Coefficient in Sheet Metal Forming of Magnesium Alloy

Abstract:

A new method for determination of friction coefficient in sheet metal forming of Mg alloy AZ31B is presented in this paper. The method is based on the bulging test of sheet metal in which the specimen is processed with a hole at the center. The diameter of the hole will increase along the stroke of the punch and the dimensional change of the hole has a certain relationship with the friction coefficient at the punch/specimen interface. Thus, the friction coefficient can be determined indirectly according to the dimension of the hole in the bulging process. The bulging process of the sheet is simulated using FE code DEFORM-2D. The analysis model is set up according to the experiment of the bulging and the friction calibration curves are generated from the simulations of the bulging by setting different coefficients of friction. The friction coefficient can be determined by measuring the hole dimension during the bulging process and comparing it with the friction calibration curves.

• Periodical: Applied Mechanics and Materials (Volumes 268-270)
• Pages: 430-435
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.268-270.430
• Online since: December 2012
• Authors: Xin Wu Ma, Guo Qun Zhao, Wen Juan Li
• Keywords: Bulging, Calibration Curve, Finite Element Method (FEM), Friction Coefficient (FC), Mg Alloy

References

[1] A.T. Male and M.G. Cockcroft: J. Inst. Metals Vol.93(1965), p.38

[2] R. Ebrahimi and A. Najafizadeh: J. Mater Process Technol Vol. 152(2004), p.136

[3] H. Sofuoglu and H. Gedikli: Tribol Int Vol. 35(2002), p.27

[4] H. Sofuoglu, H. Gedikli and J. Rasty: J. Eng Mater Technol Vol. 123(2001), p.338

[5] Y. Zhu, W. Zeng, X. Ma et al.: Tribol Int Vol. 44(2011), p. (2074)

[6] D. Shahriari, A. Amiri and M.H. Sadeghi: J. Mater Eng Perform Vol. 19(2010), p.633

[7] S.B. Petersen, P. Martins and N. Bay: J. Mater Process Technol Vol. 65(1997), p.186

[8] S.B. Petersen, P. Martins and N. Bay: J. Mater Process Technol Vol. 79(1998), p.14

[9] S.Y. Lin: J. Mater Process Technol Vol. 54(1995), p.239

[10] S.Y. Lin: J. Mater Process Technol Vol. 65(1997), p.292

[11] H. Sofuoglu and J. Rasty: Tribol Int Vol. 32(1999), p.327

[12] T. Robinson, H. Ou and C.G. Armstrong: J. Mater Process Technol Vol. 153-154(2004), p.54
