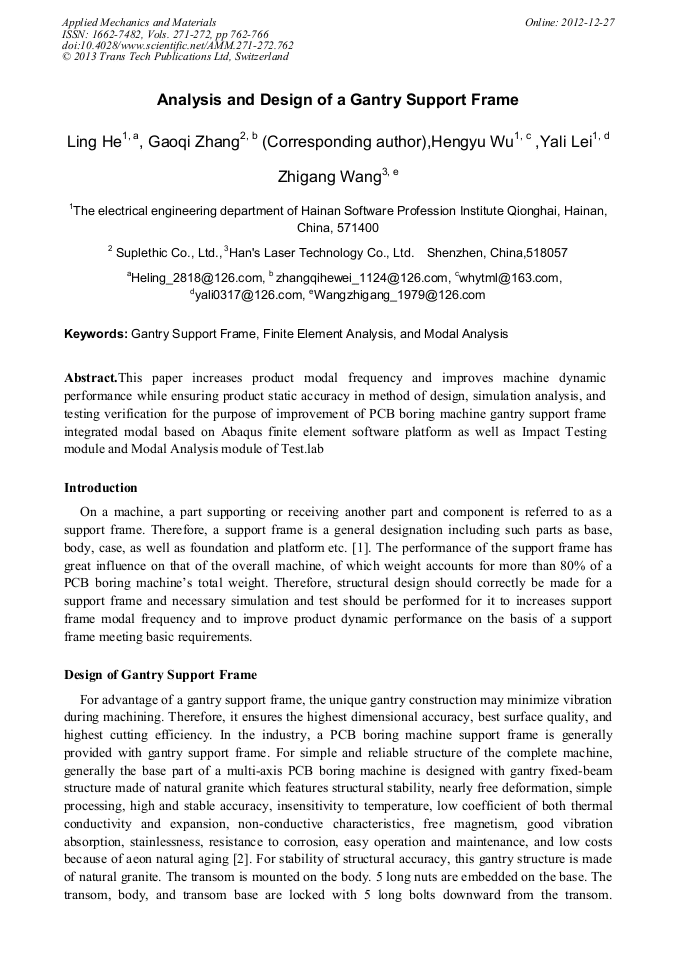

Analysis and Design of a Gantry Support Frame

Abstract:

This paper increases product modal frequency and improves machine dynamic performance while ensuring product static accuracy in method of design, simulation analysis, and testing verification for the purpose of improvement of PCB boring machine gantry support frame integrated modal based on Abaqus finite element software platform as well as Impact Testing module and Modal Analysis module of Test.lab

• Periodical: Applied Mechanics and Materials (Volumes 271-272)
• Pages: 762-766
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.271-272.762
• Online since: December 2012
• Authors: Ling He, Gao Qi Zhang, Heng Yu Wu, Ya Li Lei, Zhi Gang Wang
• Keywords: Finite Element Analysis (FEA), Gantry Support Frame, Modal Analysis
