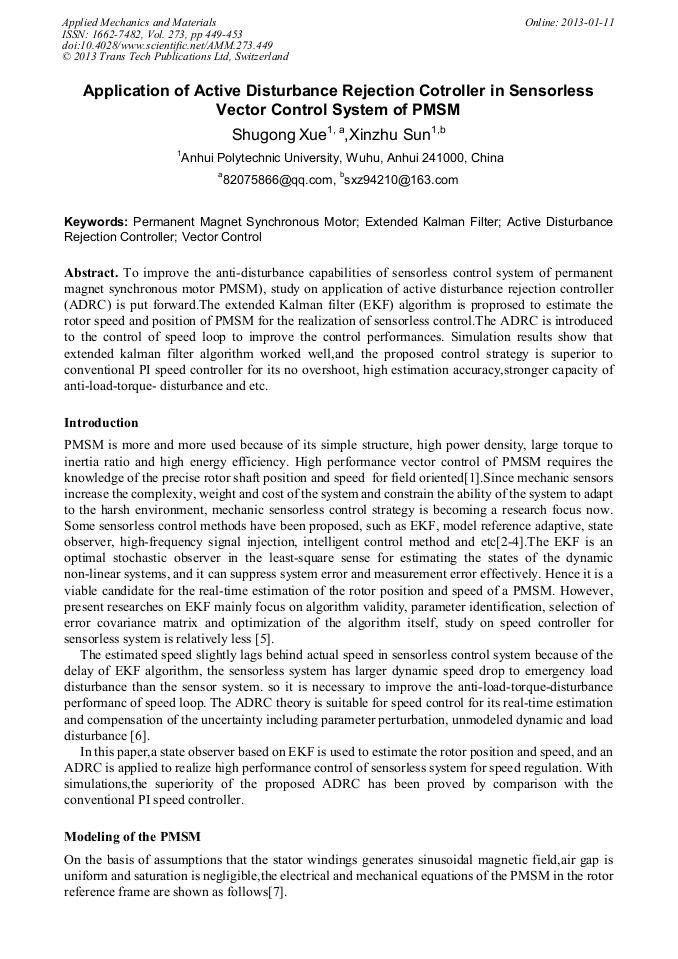

Application of Active Disturbance Rejection Cotroller in Sensorless Vector Control System of PMSM

Abstract:

To improve the anti-disturbance capabilities of sensorless control system of permanent magnet synchronous motor PMSM), study on application of active disturbance rejection controller (ADRC) is put forward.The extended Kalman filter (EKF) algorithm is proprosed to estimate the rotor speed and position of PMSM for the realization of sensorless control.The ADRC is introduced to the control of speed loop to improve the control performances. Simulation results show that extended kalman filter algorithm worked well,and the proposed control strategy is superior to conventional PI speed controller for its no overshoot, high estimation accuracy,stronger capacity of anti-load-torque- disturbance and etc.

• Periodical: Applied Mechanics and Materials (Volume 273)
• Pages: 449-453
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.273.449
• Online since: January 2013
• Authors: Shu Gong Xue, Xin Zhu Sun
• Keywords: Active Disturbance Rejection Controller, Extended Kalman Flter (EKF), Permanent Magnet Synchronous Motor, Vector Control (VC)

References

[1] S. Bolognani, L. Tubiana, and M. Zigliotto. Extended Kalman Filter tuning in sensorless PMSM drives, IEEE Trans. Industry Applicatioins, Vol. 39, No. 6, (2003) 276-281.

DOI: 10.1109/tia.2003.818991

[2] Hongryel Kim, Jubum Son and Jangmyung Lee. A high-speed sliding-mode observer for the sensorless speed control of a PMSM, IEEE Trans. Industrial Electronics, Vol. 58, No. 9, (2011) 4069- 4077.

DOI: 10.1109/tie.2010.2098357

[3] Jeong Y, Lorenz R D, Jahns T M, et al. Initial rotor position estimation of an interior permanent magnet synchronous machine using carrier frequency injection methods,. IEEE Trans. Industry Applications, Vol. 41, No. 1, (2005)38-45.

DOI: 10.1109/tia.2004.840978

[4] Li Y Z, Yang L. Speed sensorless control of the permanent magnet synchronous motor based on wavelet neural networks, Micromotors, Vol. 43, No. 7, (2010)53-56.

DOI: 10.1109/icca.2010.5524235

[5] Xue S G, Wei L S, Ling Y Z. Sensorless vector control of PMSM based on EKF and SMC, Information and Control, Vol. 41, No. 2, (2012)267-272.

[6] Su Y X, Zheng C H, Duan B Y. Automatic disturbance rejection controller for precise motion control of permanent magnet synchronous motors, IEEE Trans. Industrial Electronics, Vol. 52, No. 3, (2005)814-823.

DOI: 10.1109/tie.2005.847583

[7] Liang Y, Li Y D. Sensorless control of PM synchronous motors based on MRAS method and initial position estimation, ICEMS2003, Vol. 1, (2003)9-11.

[8] Huang Y, Zhang W G. Development of active disturbance rejection controller, Control Theory and applications, Vol. 19, No. 4, (2002)485-492.
