Combining Recovering Iron with Activating the Residual Slag Process for Electric Arc Furnace (EAF) Slag

Zhi Wei Liu; Yu Li; Da Qiang Cang; Yi Chen; Shuai Jiang; Can Wang

doi:10.4028/www.scientific.net/AMM.275-277.2206

Paper Titles

Periodic Nano-Structure Formation with Femtosecond Laser Ablation and Patterning of Silicon
p.2186

The Analysis of Ceramic Cutting Tools Durability in Machining Process of Steel C60 Applied According to Standard ISO 3685
p.2190

Establishment of Constitutive Equation of Tube in Hydroforming
p.2195

The New Technical Research on Joining Veneer
p.2200

Combining Recovering Iron with Activating the Residual Slag Process for Electric Arc Furnace (EAF) Slag
p.2206

Mold Temperature Influence on Tensile Strength and Fiber Orientation of Plastic Parts in Dynamic Mold Temperature Injection Technology
p.2210

3D Coupled Thermo-Mechanical FE Analysis of Surface Defects in Continuously Casting Slab
p.2214

Fabrication of Ni-Base ODS Alloys via Reactive Ball Milling
p.2221

The Influence of Inorganic Carbon on Anaerobic Ammonia Oxidation
p.2226

HomeApplied Mechanics and MaterialsApplied Mechanics and Materials Vols. 275-277Combining Recovering Iron with Activating the...

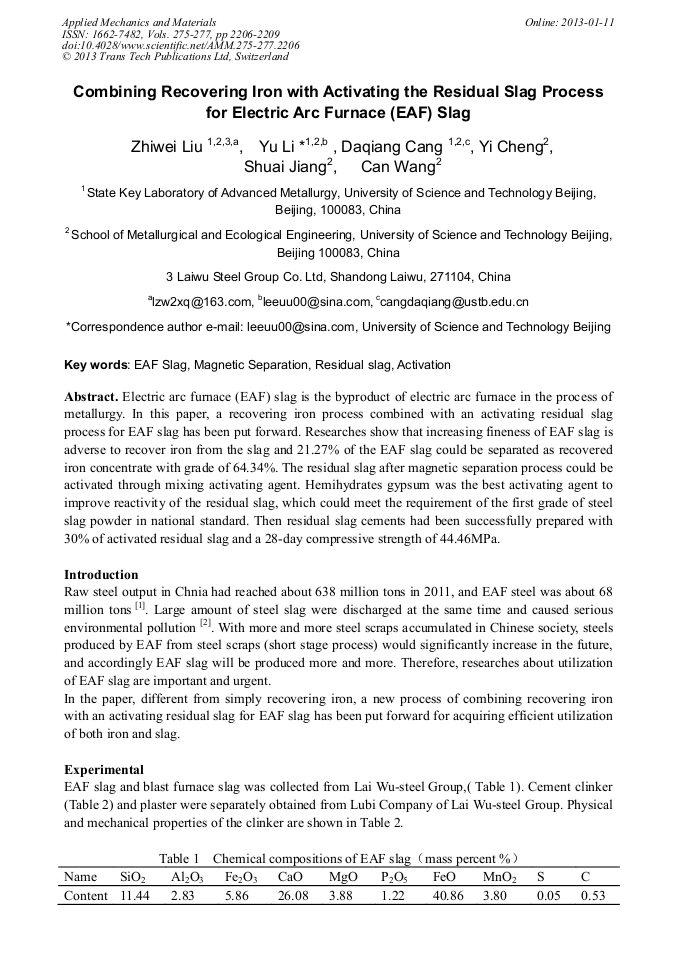

Combining Recovering Iron with Activating the Residual Slag Process for Electric Arc Furnace (EAF) Slag

Abstract:

Electric arc furnace (EAF) slag is the byproduct of electric arc furnace in the process of metallurgy. In this paper, a recovering iron process combined with an activating residual slag process for EAF slag has been put forward. Researches show that increasing fineness of EAF slag is adverse to recover iron from the slag and 21.27% of the EAF slag could be separated as recovered iron concentrate with grade of 64.34%. The residual slag after magnetic separation process could be activated through mixing activating agent. Hemihydrates gypsum was the best activating agent to improve reactivity of the residual slag, which could meet the requirement of the first grade of steel slag powder in national standard. Then residual slag cements had been successfully prepared with 30% of activated residual slag and a 28-day compressive strength of 44.46MPa.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 275-277)

Pages:

2206-2209

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.275-277.2206

Citation:

Cite this paper

Online since:

January 2013

Authors:

Zhi Wei Liu, Yu Li, Da Qiang Cang, Yi Chen, Shuai Jiang, Can Wang

Keywords:

Activation, EAF Slag, Magnetic Separation, Residual Slag

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Liu Hanchun, Xu Daozhi. The Comprehensive Utilization Research of Electric Furnace Slag in ChongQing Iron&Steel Group Special Steel Co., Journal of Chonqing Polytechnic College, 2002(10): 198～200.

Google Scholar

[2] Wang Yiren. Practice on Comprehensive Utilization of Steel Slag by Multi-Stage Magnetic Separation, Steelmaking, 2002(12): 23～25.

Google Scholar

[3] Xu Yuanhui, Lu Wenxiong, Wang Xiujuan, etc. Research and Development in Activation of Steel Slag Activity, Journal of Shanghai University (Natural Science), 2004（2）: 91～95.

Google Scholar

[4] GB/T 20491-2006, Steel Slag Powder Used for Cement and Concrete.

Google Scholar

[5] Zhang Tongsheng，Liu Futian，Wang Jianwei, etc. Recent Development of Steel Slag Stability and Activating Activit, Bulletin of The Chinese Ceramic Society, 2007（5）: 980～984.

Google Scholar

[6] GB13590-2006, Portland Steel Slag Cement, (2006).

Google Scholar
